Front Air Suspension Kit

KT-1223

How to install the Front Air Suspension Kit

4 piecesFits 2 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 2 cars it fits
YearsMakeModelEngineChoose
2010–2012Land RoverRange RoverV8 5.0L
2006–2009Land RoverRange RoverV8 4.2L

What's in the box 4 pieces

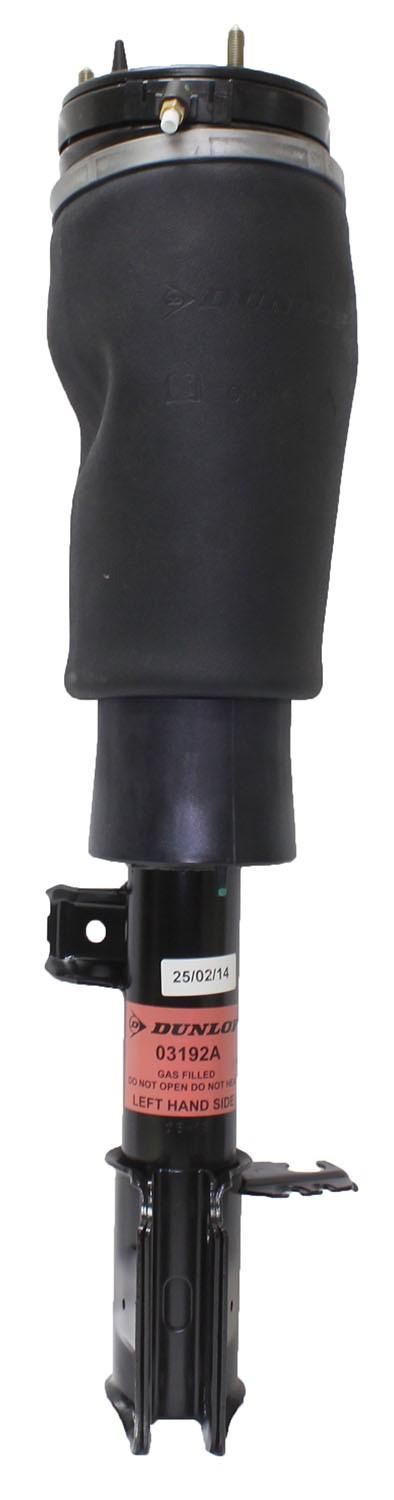

  • Front Left Air Suspension Strut
    1

    Front Left Air Suspension Strut

    Front Left

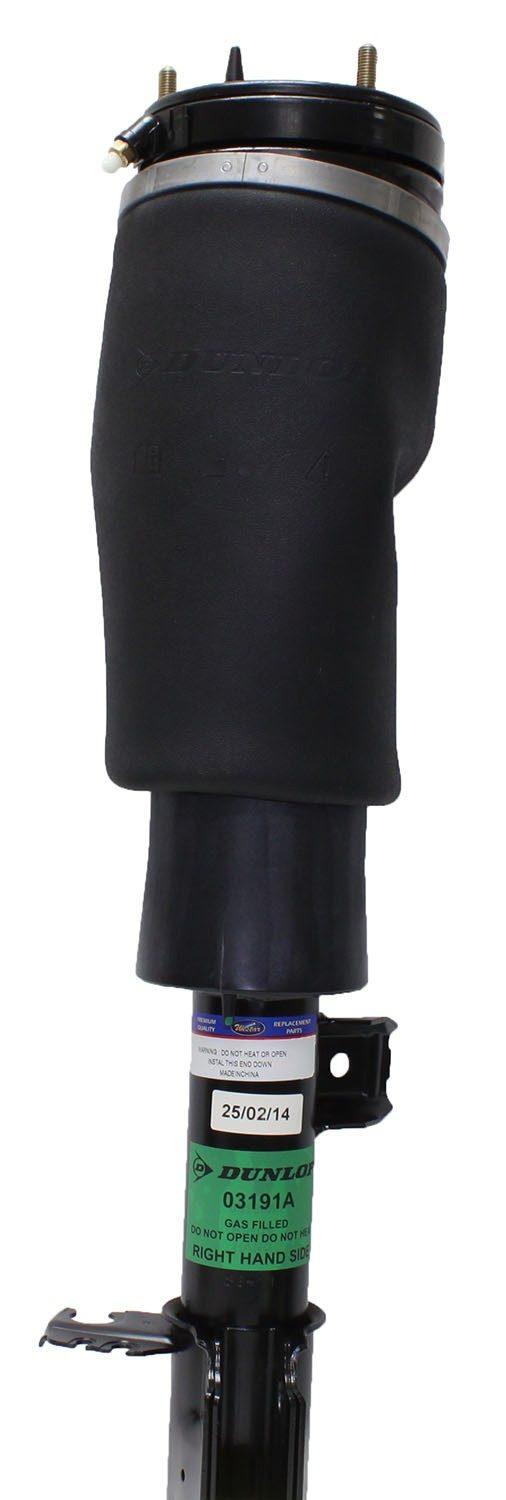

  • Front Right Air Suspension Strut
    2

    Front Right Air Suspension Strut

    Front Right

  • Air Suspension Compressor
    3

    Air Suspension Compressor

  • Front Air Suspension Solenoid Valve Unit
    4

    Front Air Suspension Solenoid Valve Unit

    Front

Where each piece goes

FRONT OF CARDRIVER SIDEPASSENGER SIDE1244
  • 1Front Left Air Suspension Strut: Front Left
  • 2Front Right Air Suspension Strut: Front Right
  • 3Air Suspension Compressor
  • 4Front Air Suspension Solenoid Valve Unit: Front

Install steps

Good to knowReplace all 4 together
  1. 1

    Turn the air suspension off

    Switch the air suspension off and let the system vent before you open any air line.

  2. 2

    Get the car ready

    Lift the car, support it on jack stands and take the wheel off. Support the axle or control arm.

  3. 3

    Front Left Air Suspension Strut

    Front Left. Disconnect the air line, remove the old part, fit the new one and reconnect the air line until it clicks.

  4. 4

    Front Right Air Suspension Strut

    Front Right. Disconnect the air line, remove the old part, fit the new one and reconnect the air line until it clicks.

  5. 5

    Air Suspension Compressor

    Disconnect the air line, remove the old part, fit the new one and reconnect the air line until it clicks.

  6. 6

    Front Air Suspension Solenoid Valve Unit

    Front. Disconnect the air line, remove the old part, fit the new one and reconnect the air line until it clicks.

  7. 7

    Turn it back on and test

    Switch the air suspension back on, start the engine and let the system fill. Check for hissing and that the car sits level.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
