ETK-530
How to install the 4 Piece Front Engine & Auto Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
All 2 cars it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2004–2007 | Chevrolet | Malibu | V6 3.5L | |
| 2005–2006 | Pontiac | G6 | V6 3.5L |
What's in the box 4 pieces
1Automatic Transmission Mount
Rear or Rear Left or Front Left

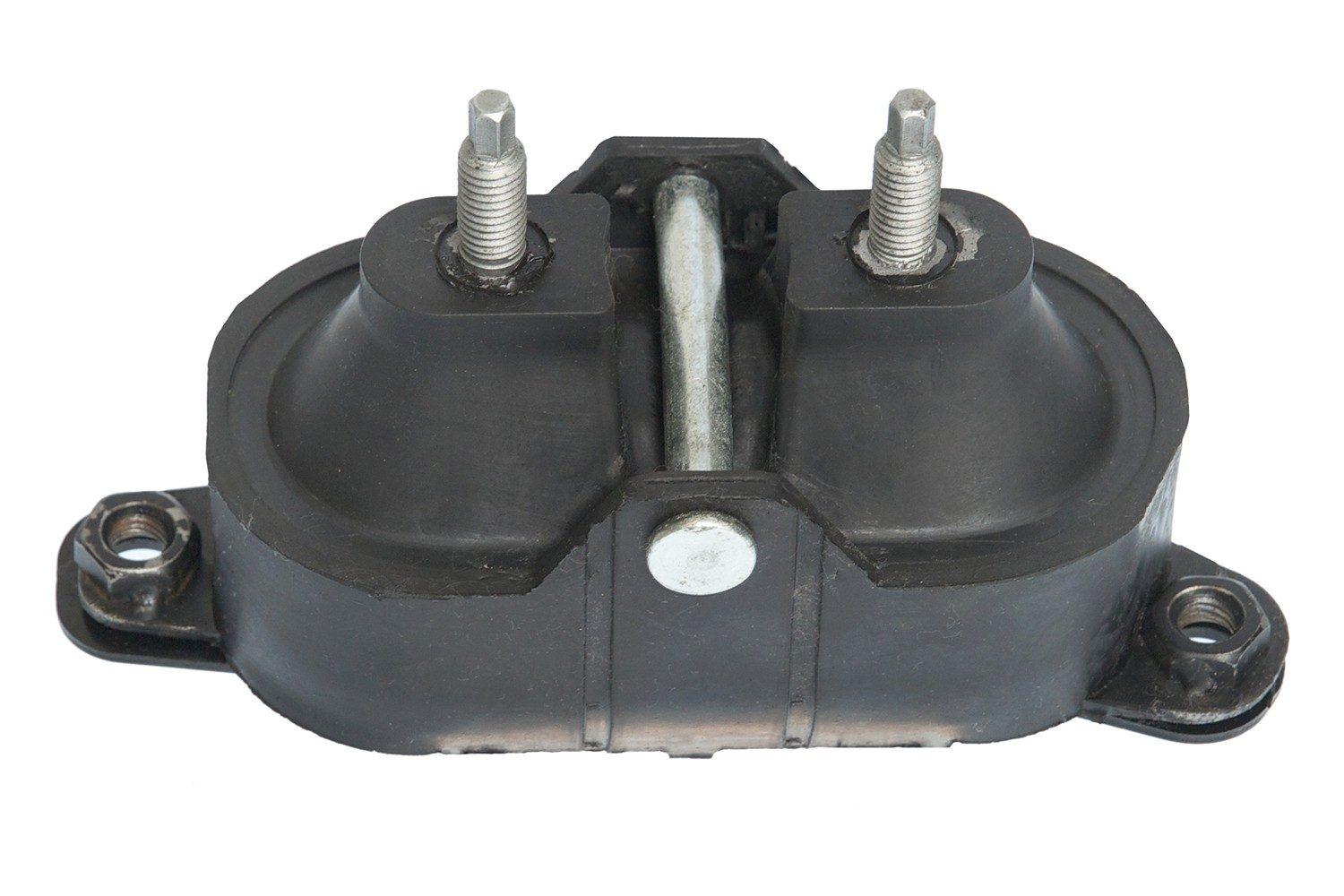

2Center Automatic Transmission Mount
Center
3Engine Mount
Front Right or Front or Right
4Automatic Transmission Mount
Front or Front Left
Where each piece goes
- 1Automatic Transmission Mount: Rear or Rear Left or Front Left
- 2Center Automatic Transmission Mount: Center
- 3Engine Mount: Front Right or Front or Right
- 4Automatic Transmission Mount: Front or Front Left
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Automatic Transmission Mount
Rear or Rear Left or Front Left. Remove the old mount and bolt the new one in hand-tight.
- 4
Center Automatic Transmission Mount
Center. Remove the old mount and bolt the new one in hand-tight.
- 5
Engine Mount
Front Right or Front or Right. Remove the old mount and bolt the new one in hand-tight.
- 6
Automatic Transmission Mount
Front or Front Left. Remove the old mount and bolt the new one in hand-tight.
- 7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
