2 Piece Front Engine Mount Kit

ETK-509

How to install the 2 Piece Front Engine Mount Kit

2 piecesFits 2002–2005 Audi A4 Quattro

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2002–2005AudiA4 QuattroL4 1.8L

What's in the box 2 pieces

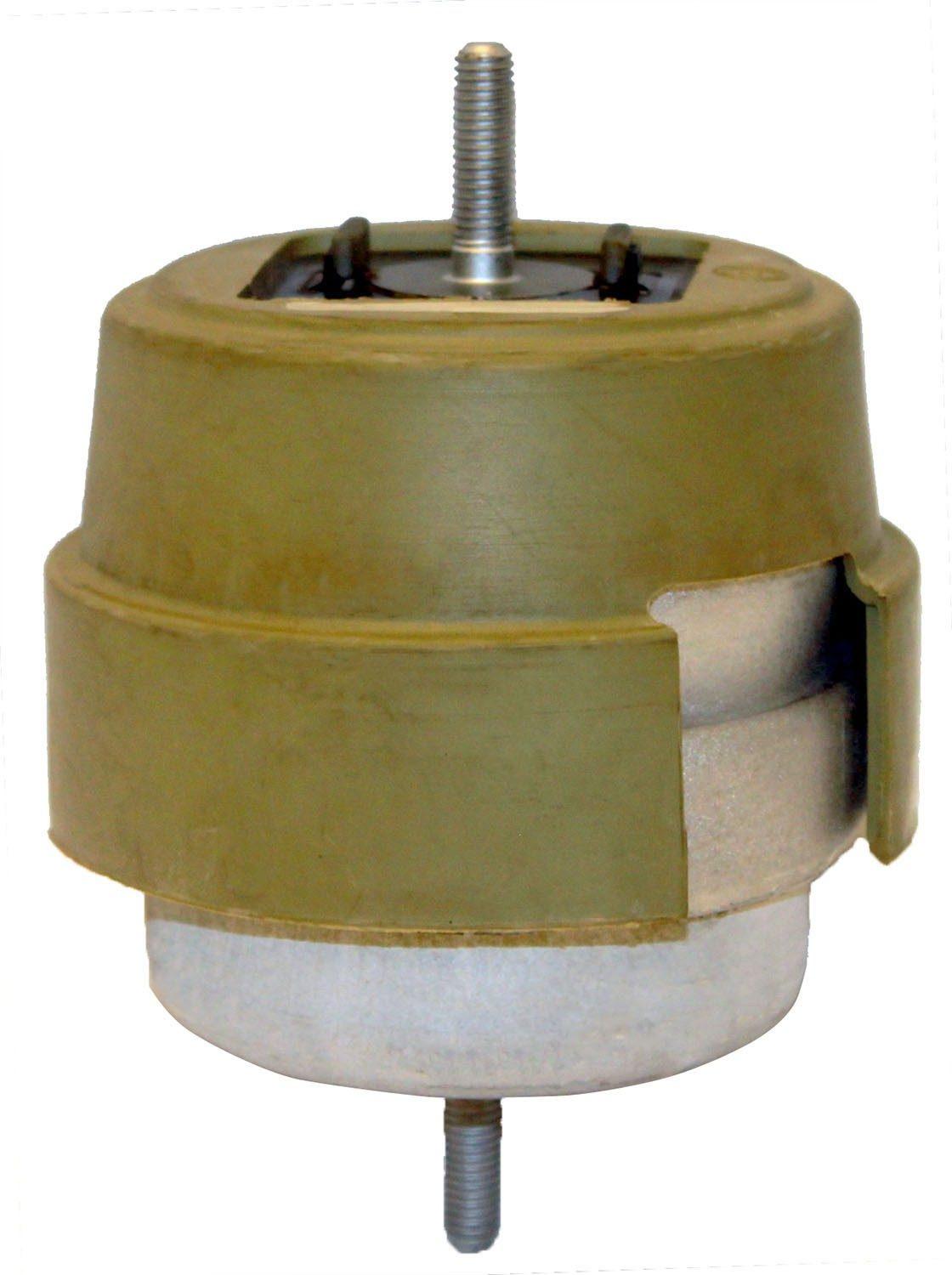

  • Front Right Engine Mount
    1

    Front Right Engine Mount

    Front Right

  • Engine Mount
    2

    Engine Mount

    Front Right or Front Left or Front

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE1222
  • 1Front Right Engine Mount: Front Right
  • 2Engine Mount: Front Right or Front Left or Front

Install steps

Good to knowReplace all 2 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Right Engine Mount

    Front Right. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Mount

    Front Right or Front Left or Front. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
