4 Piece Front Engine & Auto Trans Mount Kit

ETK-361

How to install the 4 Piece Front Engine & Auto Trans Mount Kit

4 piecesFits 22 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 22 cars it fits
YearsMakeModelEngineChoose
2000ChryslerGrand VoyagerV6 3.0L
2000ChryslerGrand VoyagerV6 3.3L
1996–2000ChryslerTown & CountryV6 3.3L
1996–2000ChryslerTown & CountryV6 3.8L
2000ChryslerVoyagerV6 3.0L
2000ChryslerVoyagerV6 3.3L
1996–2000DodgeCaravanL4 2.4L
1996–2000DodgeCaravanV6 3.0L

What's in the box 4 pieces

  • Front Right Engine Mount
    1

    Front Right Engine Mount

    Front Right

  • Front Left Automatic Transmission Mount
    2

    Front Left Automatic Transmission Mount

    Front Left

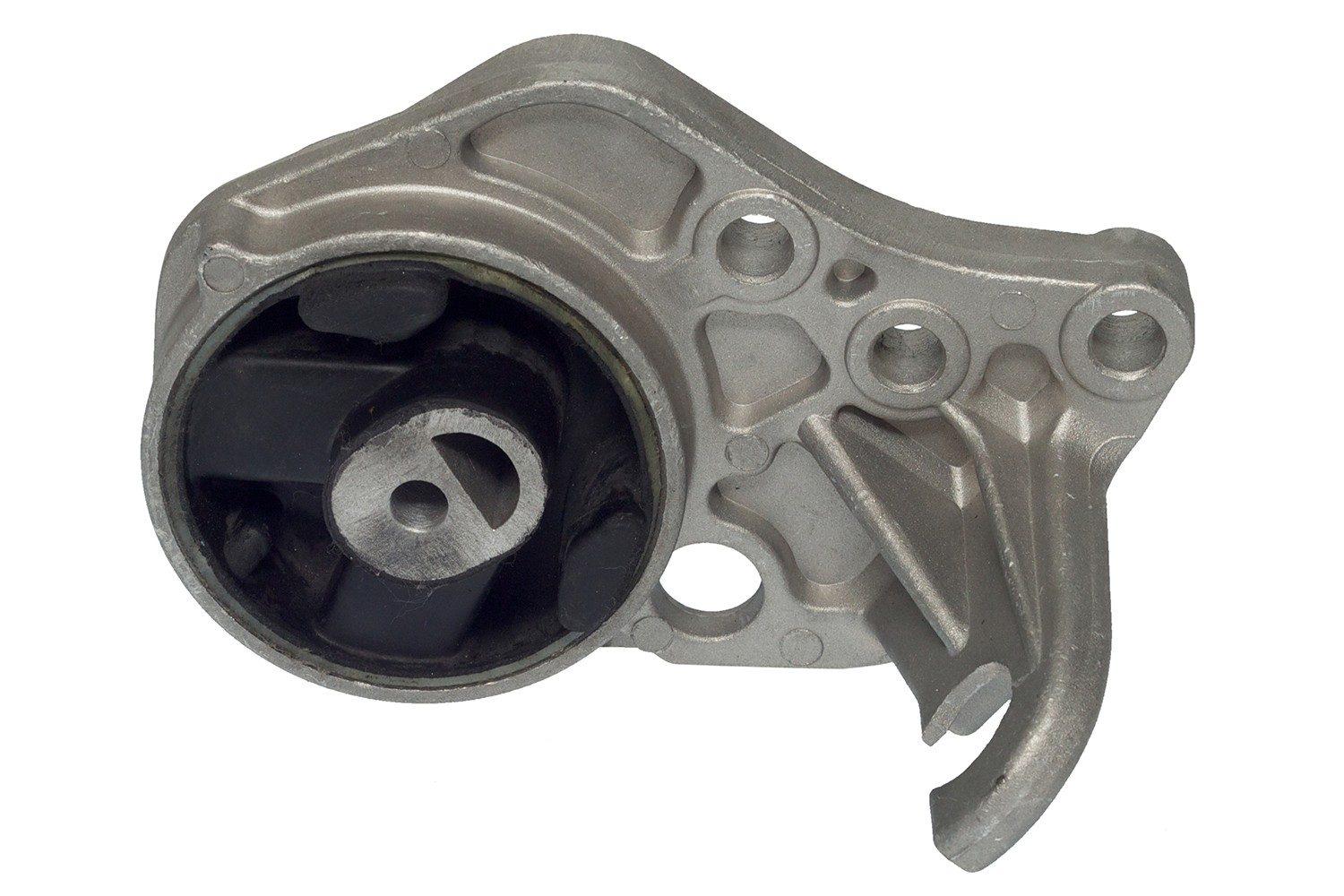

  • Center Automatic Transmission Mount
    3

    Center Automatic Transmission Mount

    Center

  • Rear Left Automatic Transmission Mount
    4

    Rear Left Automatic Transmission Mount

    Rear Left

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE1234
  • 1Front Right Engine Mount: Front Right
  • 2Front Left Automatic Transmission Mount: Front Left
  • 3Center Automatic Transmission Mount: Center
  • 4Rear Left Automatic Transmission Mount: Rear Left

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Right Engine Mount

    Front Right. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Front Left Automatic Transmission Mount

    Front Left. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Center Automatic Transmission Mount

    Center. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Rear Left Automatic Transmission Mount

    Rear Left. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
