ETK-324

How to install the 4 Piece Front & Rear Engine & Auto Trans Mount Kit

4 piecesFits 6 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 6 cars it fits

Years	Make	Model	Engine	Choose
2011–2022	Mitsubishi	Outlander Sport	L4 2.0L	Year
2011–2022	Mitsubishi	RVR	L4 2.0L	Year
2015–2021	Mitsubishi	Outlander Sport	L4 2.4L	Year
2009–2017	Mitsubishi	Lancer	L4 2.4L	Year
2008–2016	Mitsubishi	Lancer	L4 2.0L	Year
2007–2009	Dodge	Caliber	L4 1.8L	Year

What's in the box 4 pieces

Good to knowReplace all 4 together

1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
3

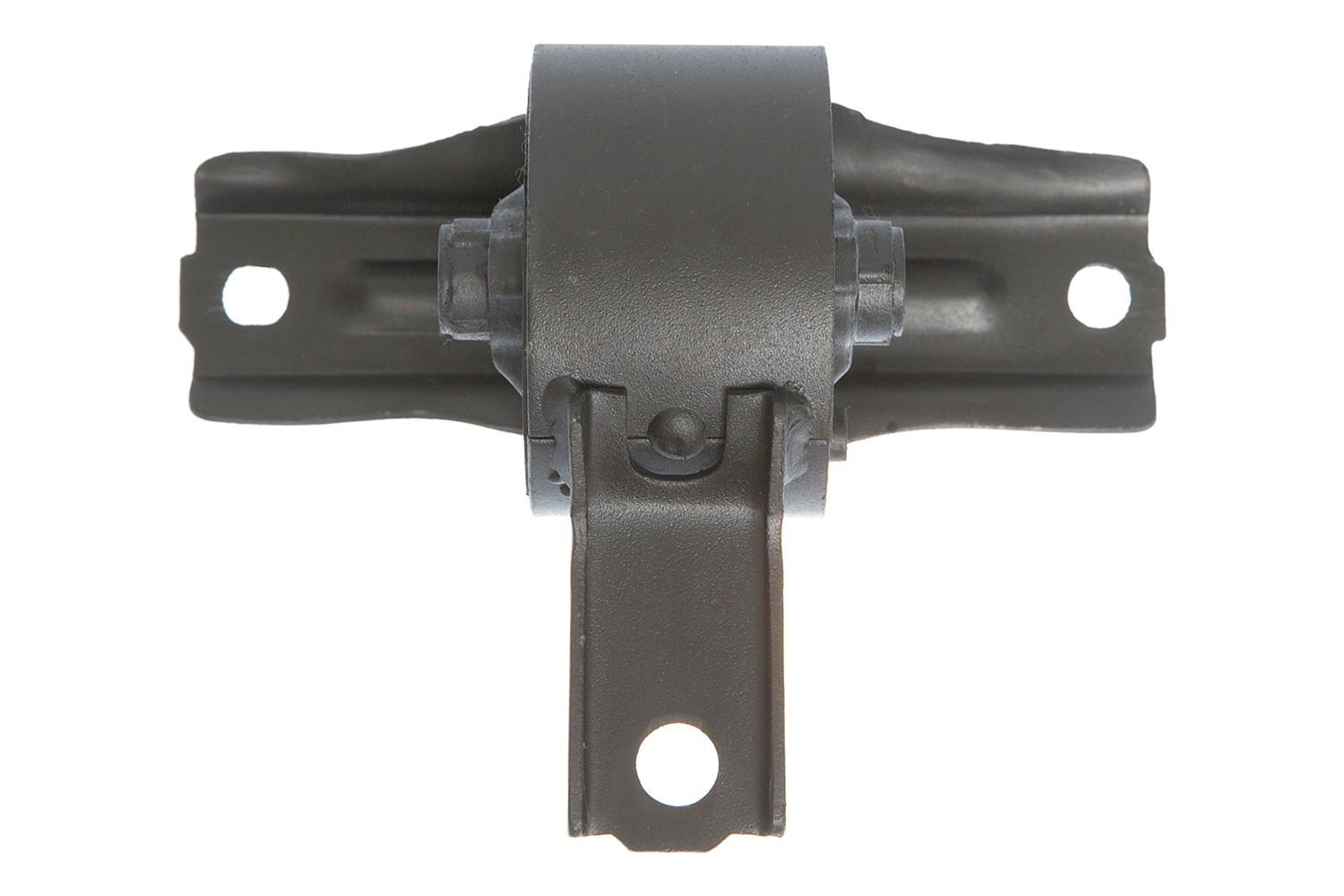

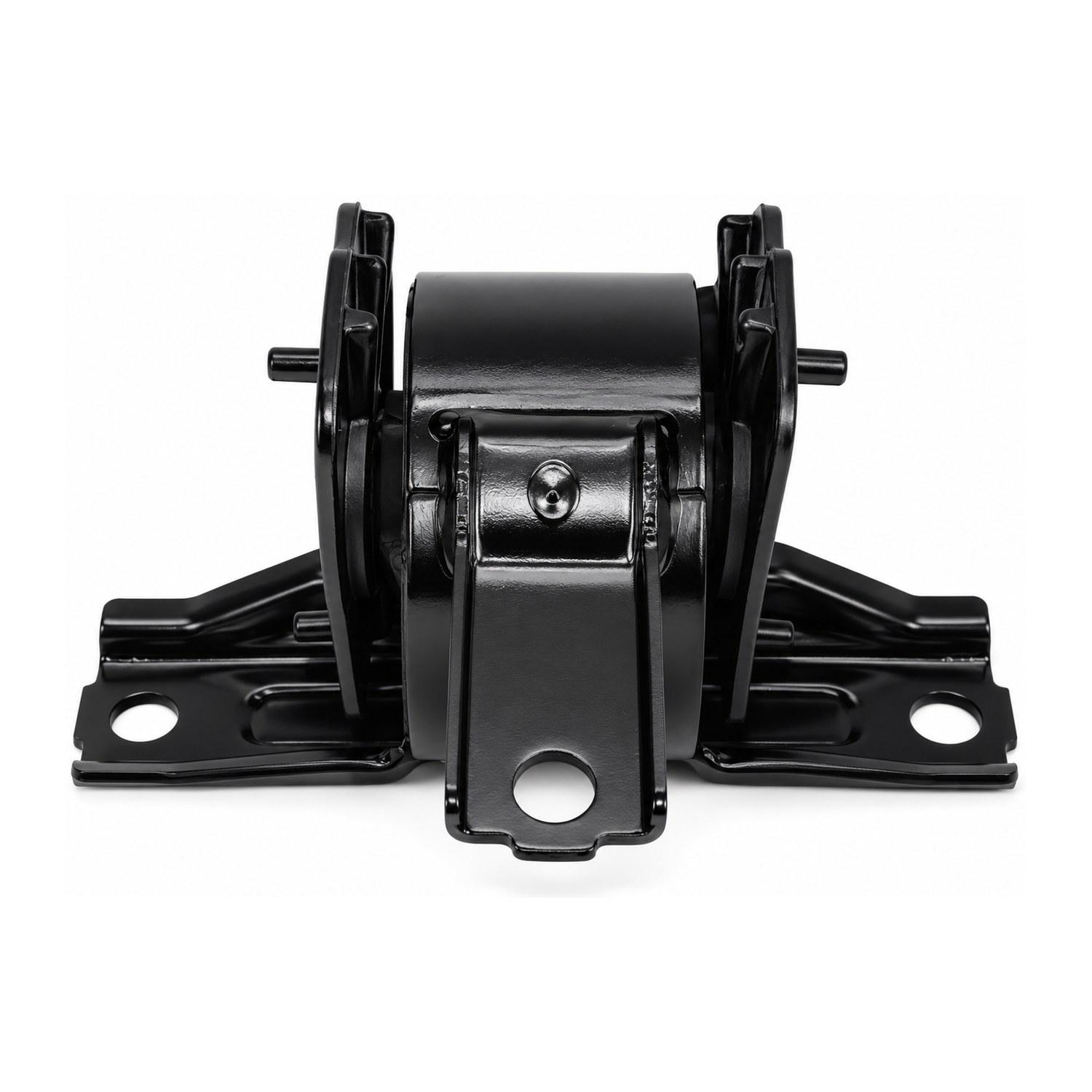

Engine Mount
Front Right. Remove the old mount and bolt the new one in hand-tight.
4

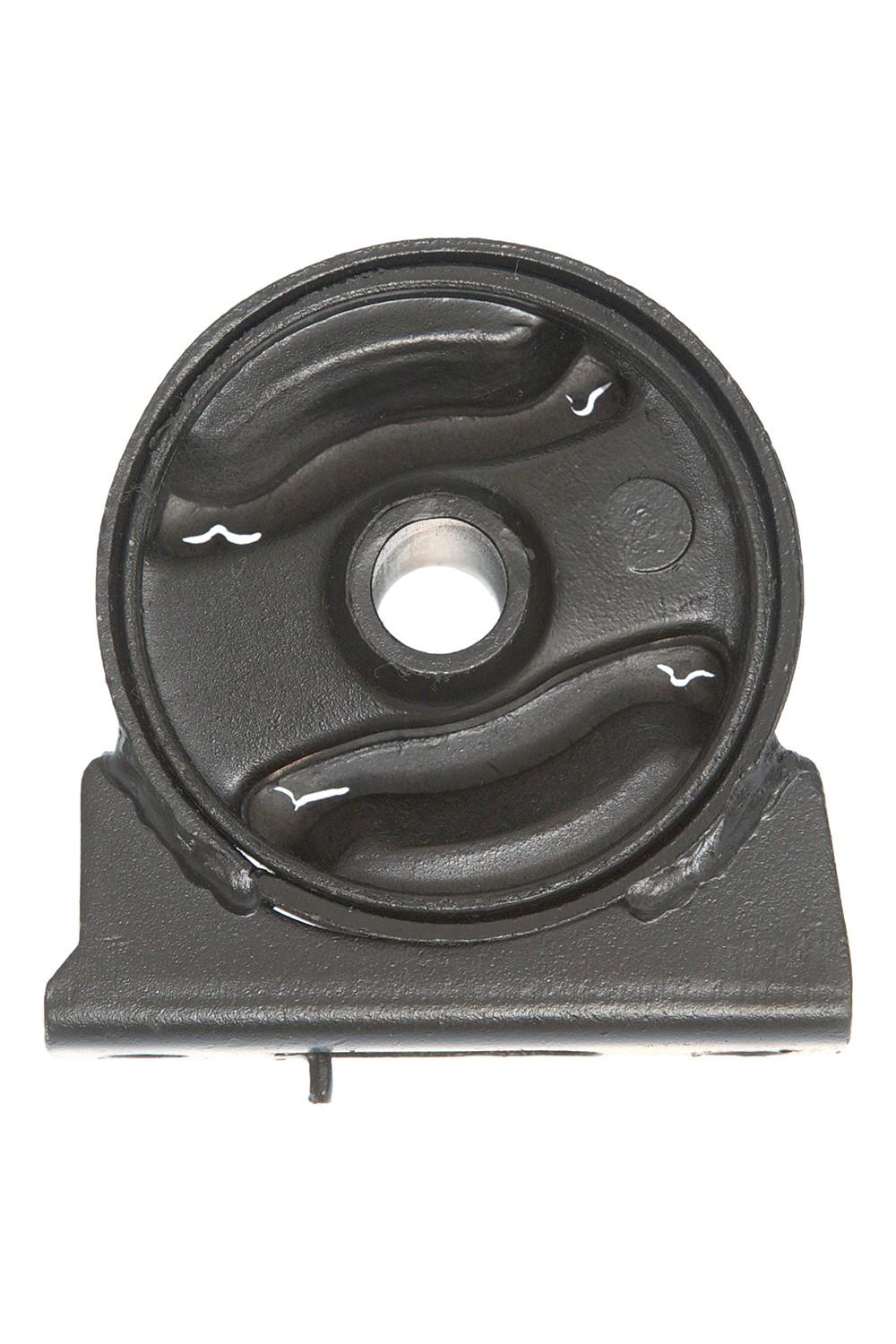

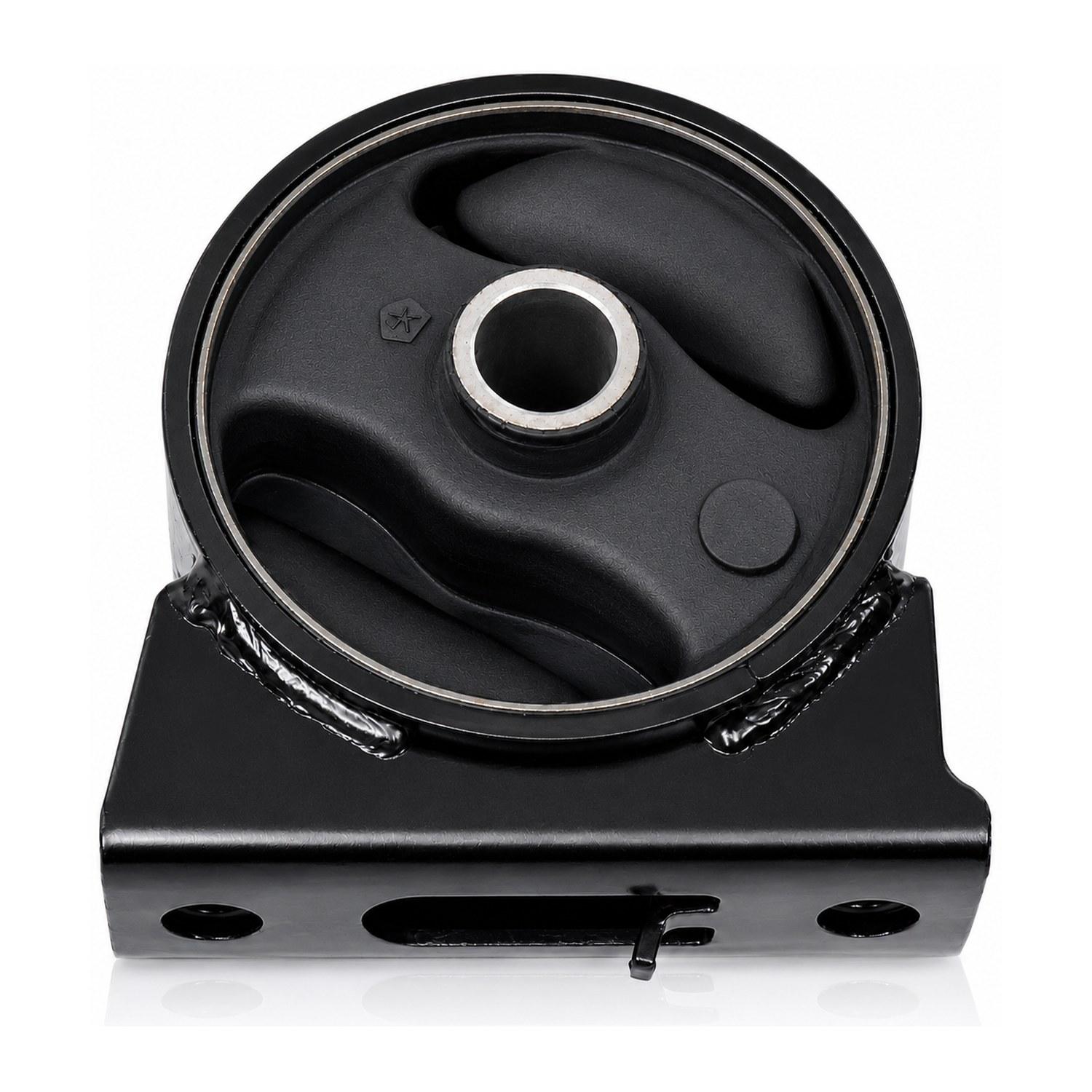

Front Engine Mount
Front. Remove the old mount and bolt the new one in hand-tight.
5

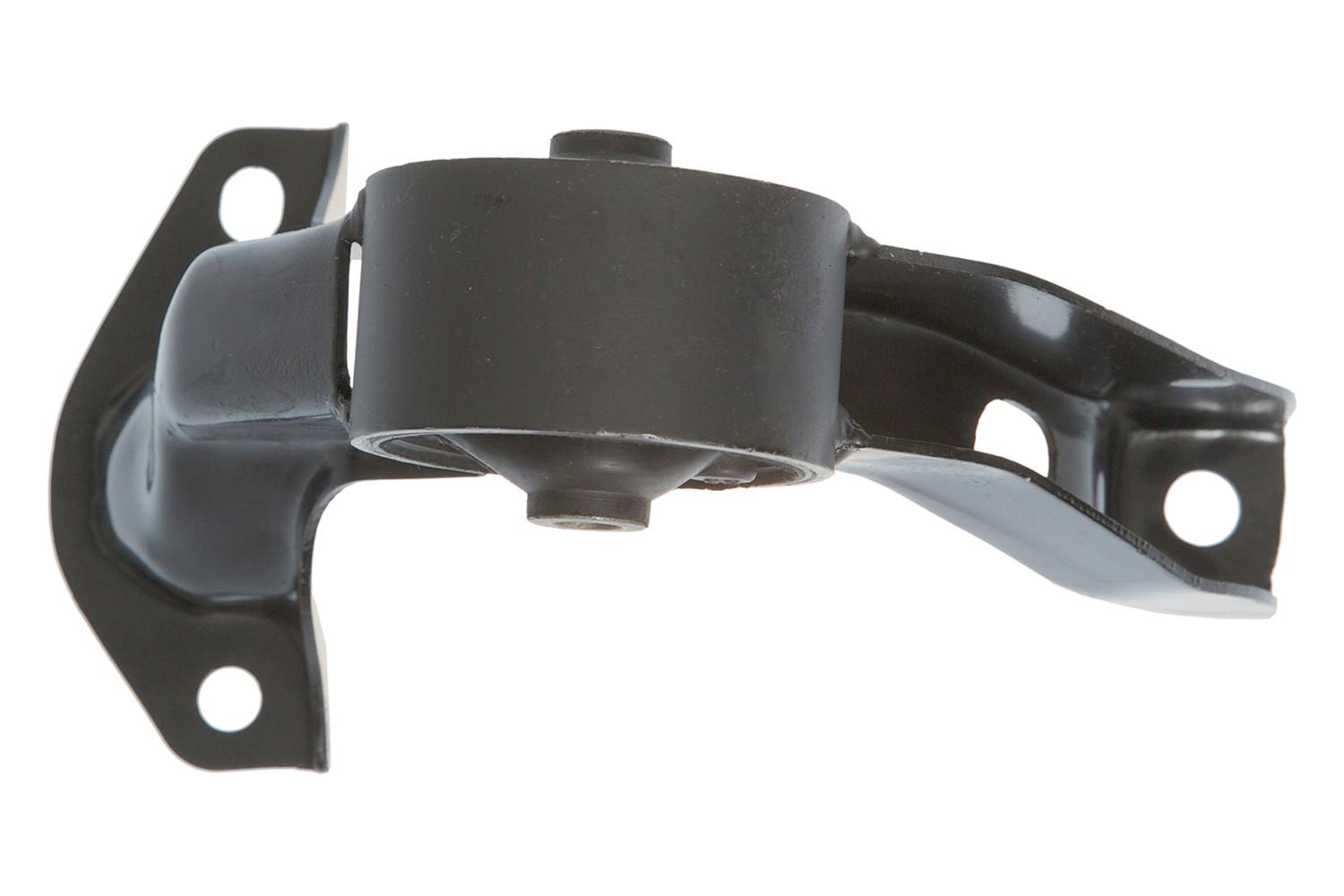

Rear Engine Mount
Rear. Remove the old mount and bolt the new one in hand-tight.
6

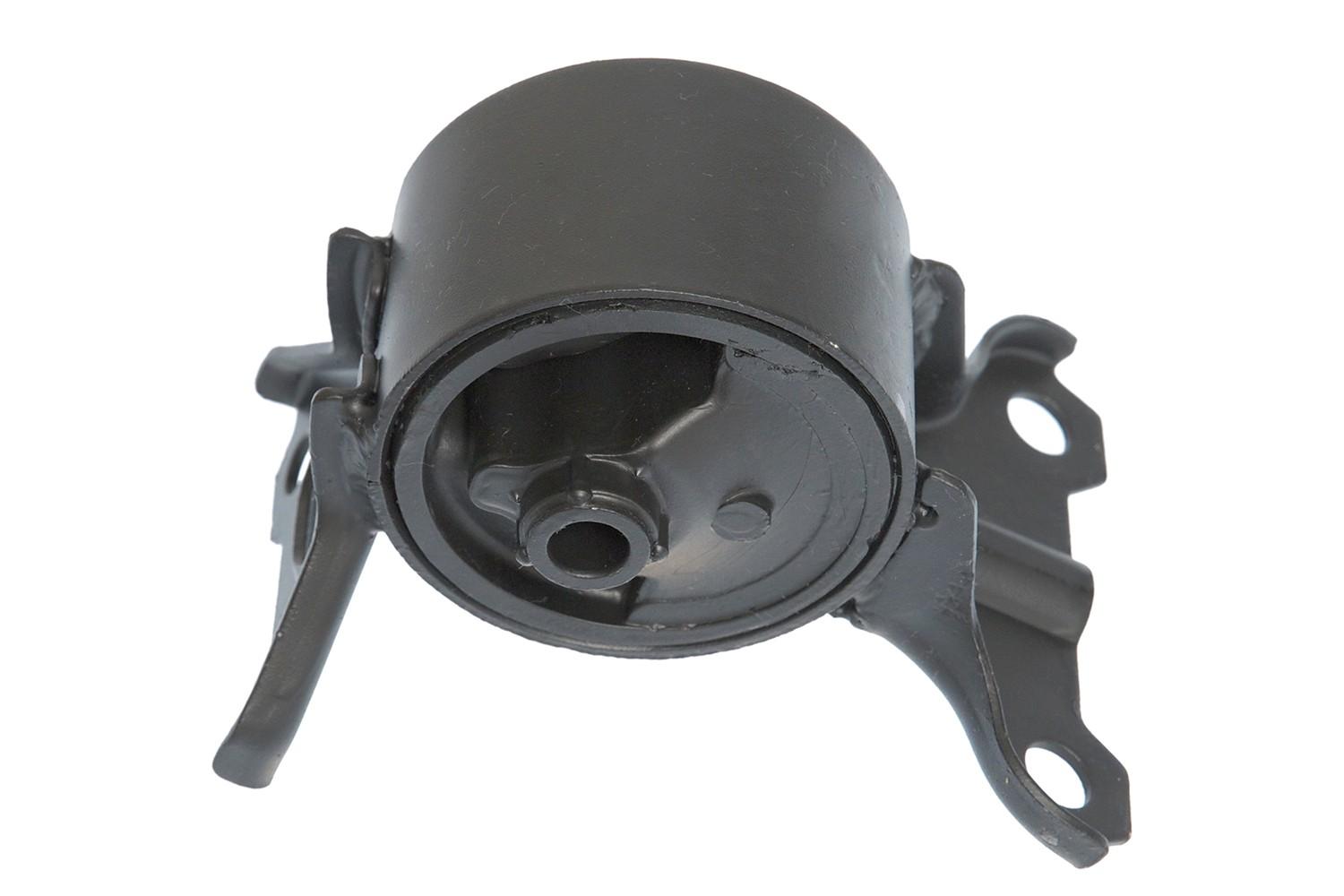

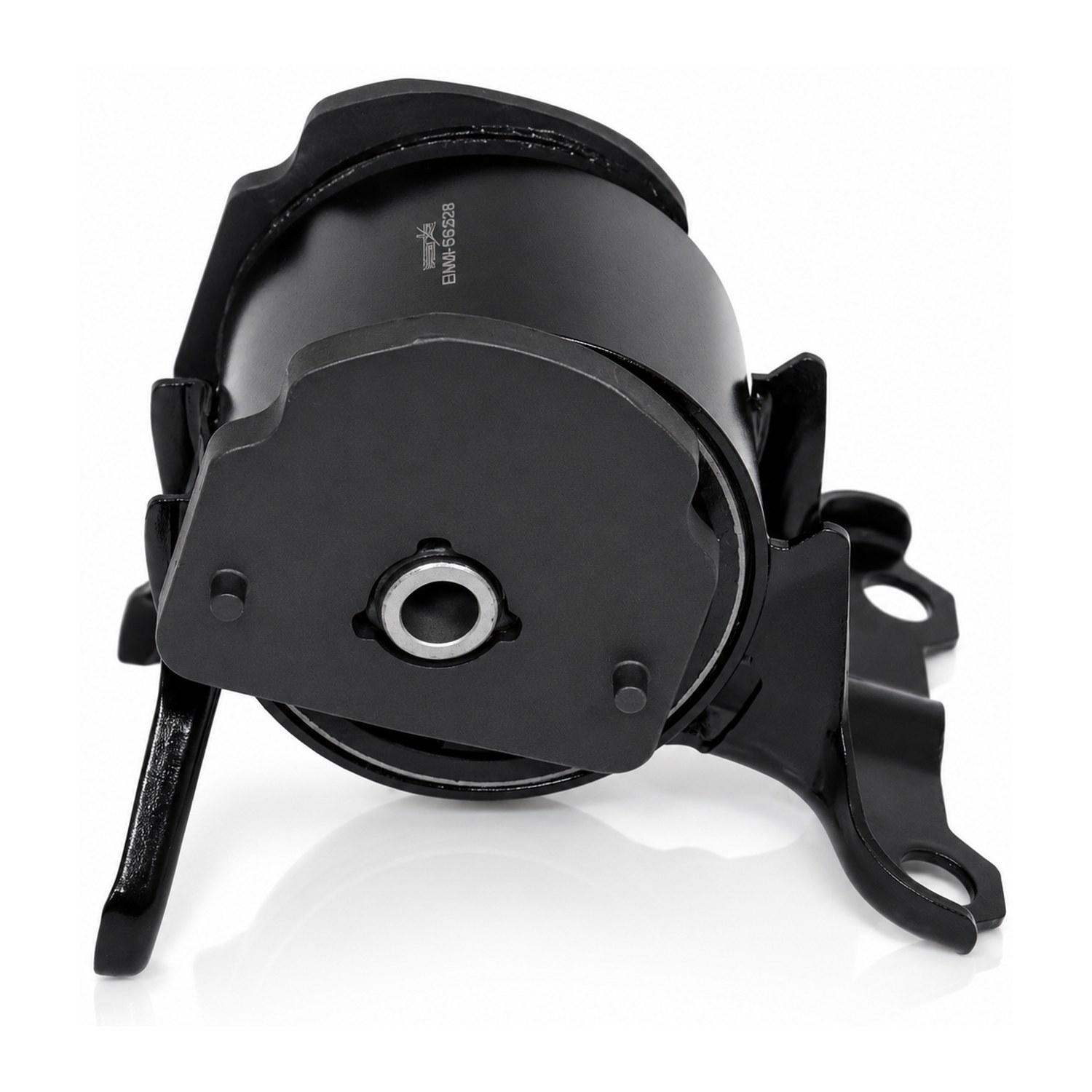

Automatic Transmission Mount
Remove the old mount and bolt the new one in hand-tight.
7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
