2 Piece Front & Rear Engine Mount Kit

ETK-264

How to install the 2 Piece Front & Rear Engine Mount Kit

2 piecesFits 6 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 6 cars it fits
YearsMakeModelEngineChoose
2011–2014LincolnMKXV6 3.7L
2009–2012FordFlexV6 3.5L
2008–2012FordTaurusV6 3.5L
2009–2011LincolnMKSV6 3.7L
2008–2009FordTaurus XV6 3.5L
2008–2009MercurySableV6 3.5L

What's in the box 2 pieces

  • Engine Torque Strut Mount
    1

    Engine Torque Strut Mount

    Rear or Front

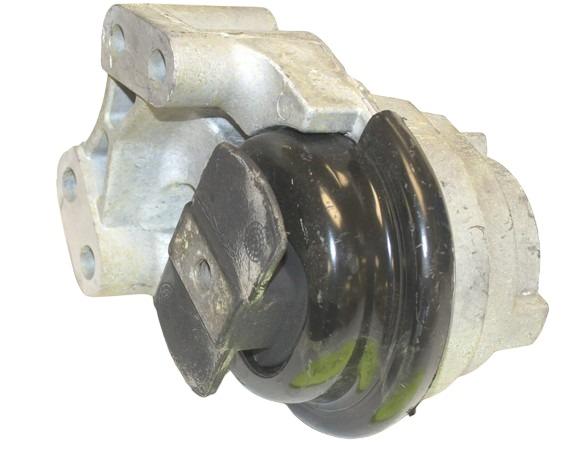

  • Engine Mount
    2

    Engine Mount

    Front Right or Front

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE1122
  • 1Engine Torque Strut Mount: Rear or Front
  • 2Engine Mount: Front Right or Front

Install steps

Good to knowReplace all 2 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Engine Torque Strut Mount

    Rear or Front. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Mount

    Front Right or Front. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
