ETK-253
How to install the 4 Piece Front Engine & Auto Trans & Manual Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
The car it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2003–2004 | Saturn | Ion | L4 2.2L |
What's in the box 4 pieces
1Front Left Automatic Transmission Mount
Front Left
2Manual Transmission Mount
Rear Left or Rear
3Engine Mount
Front Right or Front
4Center Automatic Transmission Mount
Center
Where each piece goes
- 1Front Left Automatic Transmission Mount: Front Left
- 2Manual Transmission Mount: Rear Left or Rear
- 3Engine Mount: Front Right or Front
- 4Center Automatic Transmission Mount: Center
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Front Left Automatic Transmission Mount
Front Left. Remove the old mount and bolt the new one in hand-tight.
- 4
Manual Transmission Mount
Rear Left or Rear. Remove the old mount and bolt the new one in hand-tight.
- 5

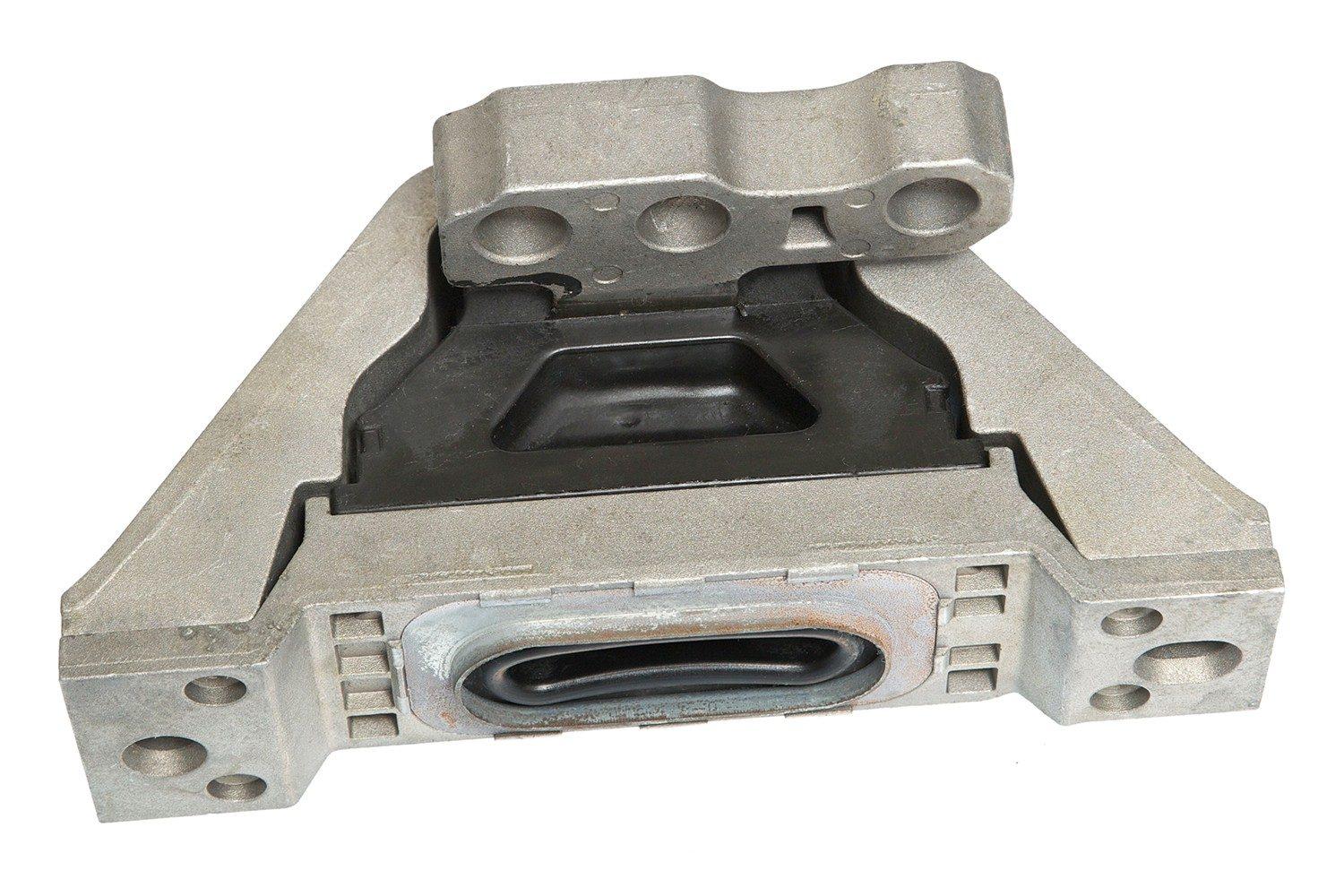

Engine Mount
Front Right or Front. Remove the old mount and bolt the new one in hand-tight.
- 6

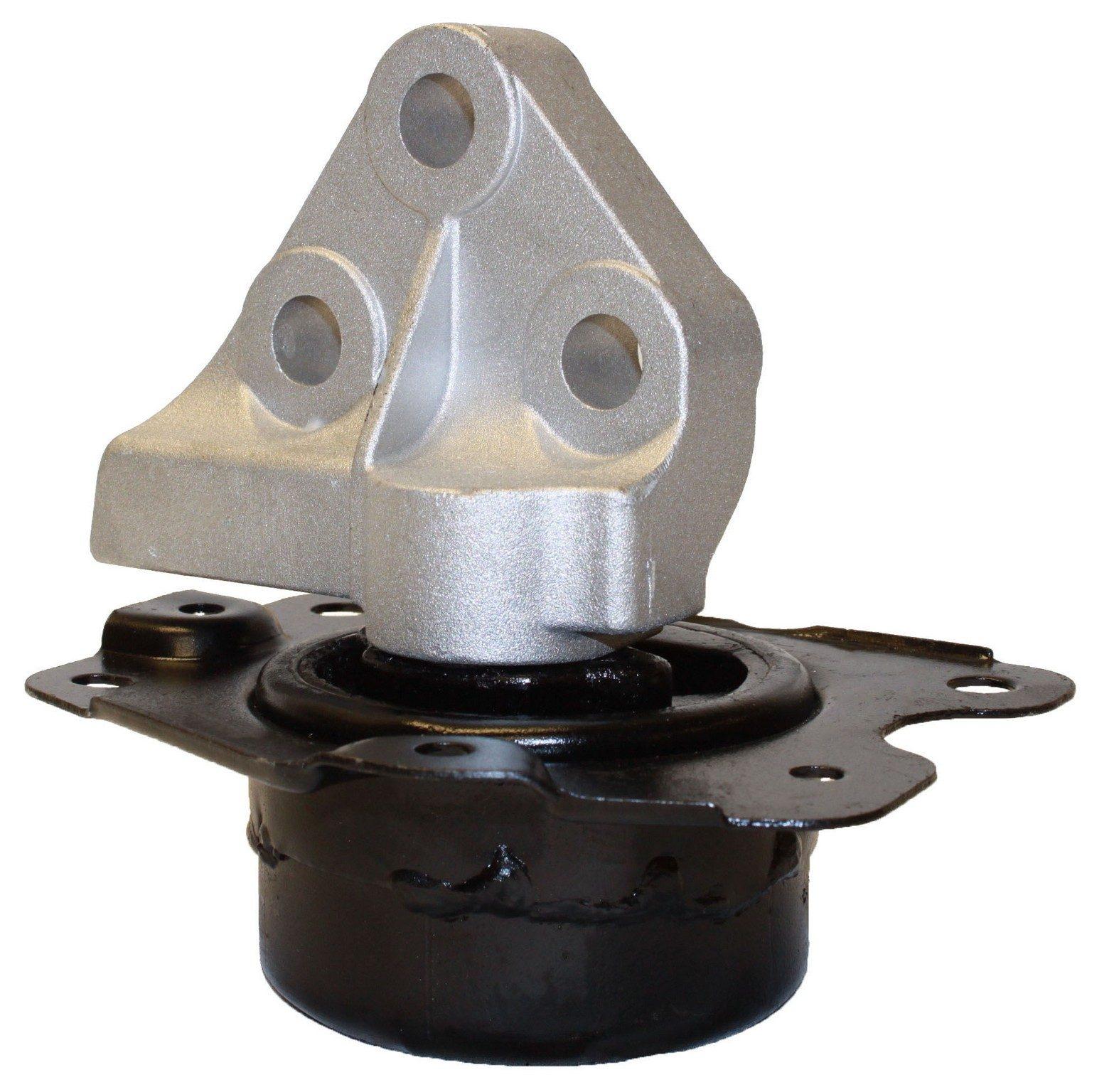

Center Automatic Transmission Mount
Center. Remove the old mount and bolt the new one in hand-tight.
- 7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
