ETK-2325
How to install the 4-Piece Front Right Front Rear Lower Engine & Auto Trans Mount Set
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
The car it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2001–2002 | Mazda | 626 | L4 2.0L |
What's in the box 4 pieces

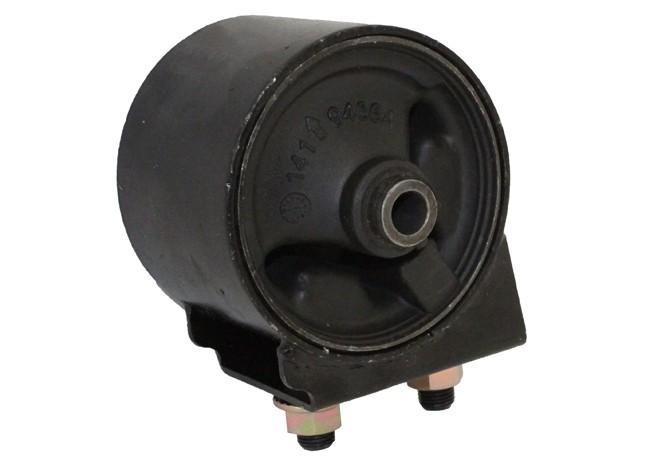

1Front Engine Mount
Front
2Front Right Engine Mount
Front Right
3Engine Mount
Rear or Rear Left
4Center Lower Automatic Transmission Mount
Lower or Center Lower
Where each piece goes
- 1Front Engine Mount: Front
- 2Front Right Engine Mount: Front Right
- 3Engine Mount: Rear or Rear Left
- 4Center Lower Automatic Transmission Mount: Lower or Center Lower
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Front Engine Mount
Front. Remove the old mount and bolt the new one in hand-tight.
- 4
Front Right Engine Mount
Front Right. Remove the old mount and bolt the new one in hand-tight.
- 5
Engine Mount
Rear or Rear Left. Remove the old mount and bolt the new one in hand-tight.
- 6
Center Lower Automatic Transmission Mount
Lower or Center Lower. Remove the old mount and bolt the new one in hand-tight.
- 7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
