3 Piece Front Engine & Auto Trans Mount Kit

ETK-227

How to install the 3 Piece Front Engine & Auto Trans Mount Kit

3 piecesFits 4 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 4 cars it fits
YearsMakeModelEngineChoose
2011–2013HyundaiTucsonL4 2.0L
2010–2013HyundaiTucsonL4 2.4L
2011–2013KiaSportageL4 2.0L
2011–2013KiaSportageL4 2.4L

What's in the box 3 pieces

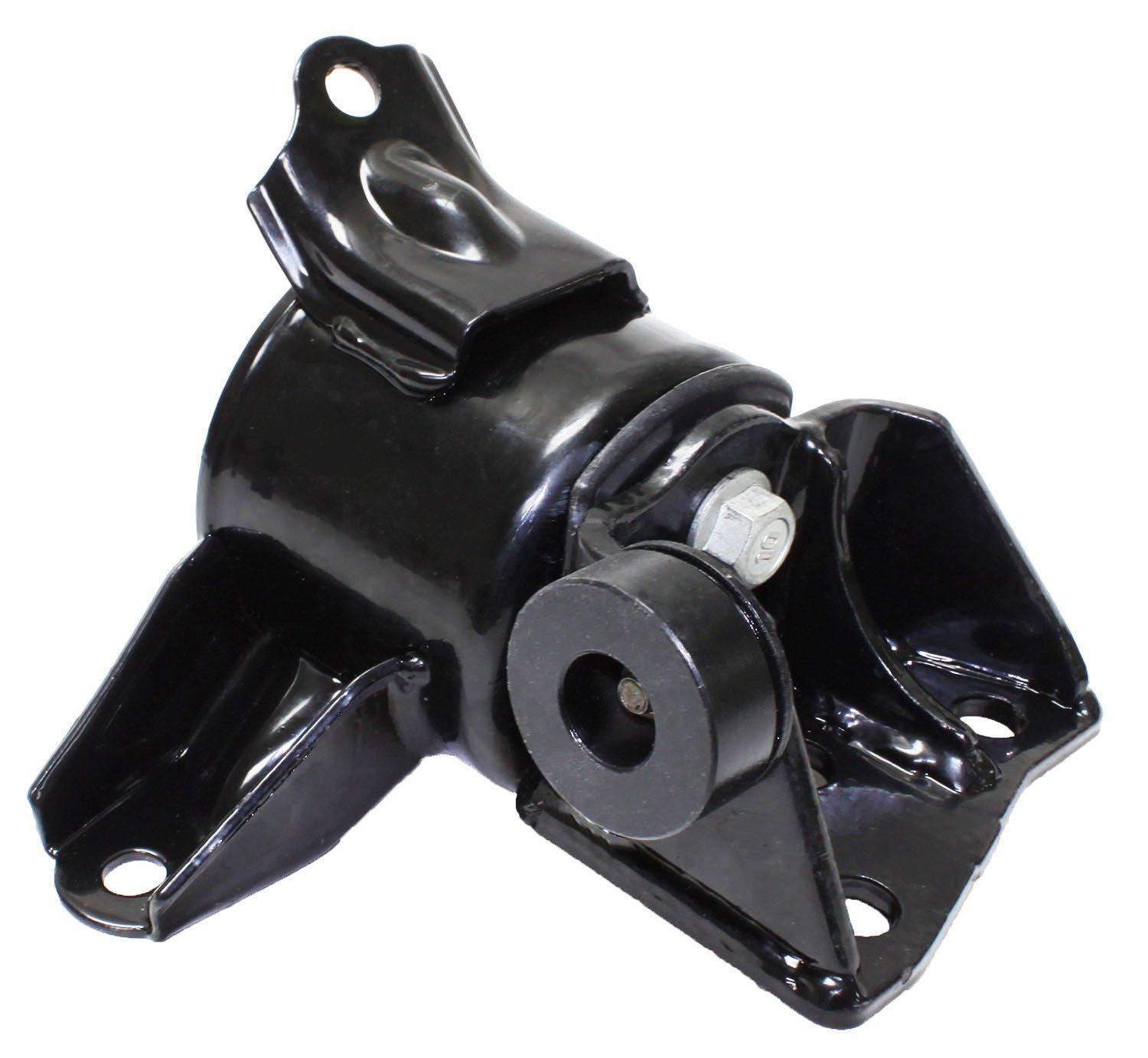

  • Automatic Transmission Mount
    1

    Automatic Transmission Mount

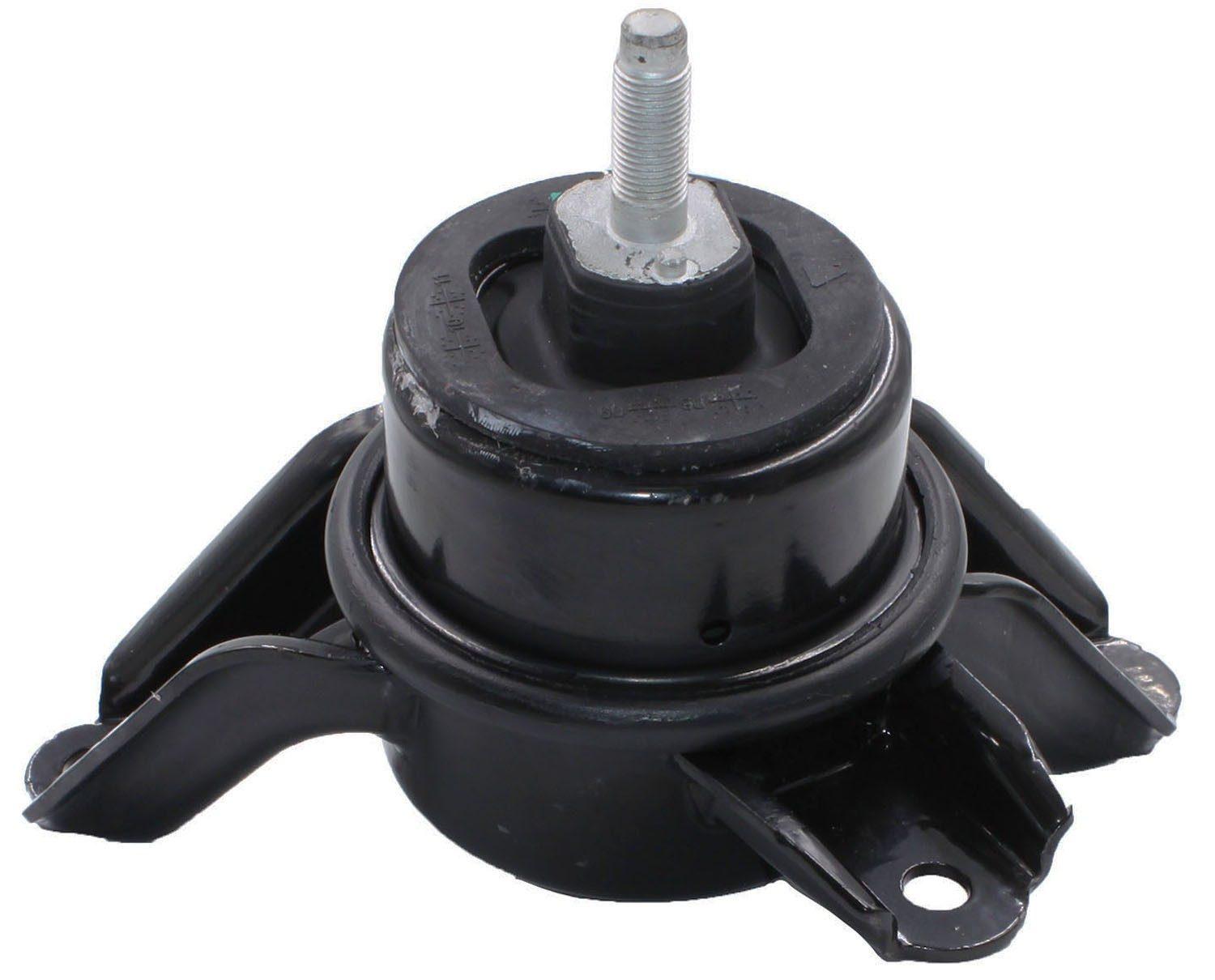

  • Right Engine Mount
    2

    Right Engine Mount

    Right

  • Engine Torque Strut Mount
    3

    Engine Torque Strut Mount

    Lower or Front or Front Lower

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE2333
  • 1Automatic Transmission Mount
  • 2Right Engine Mount: Right
  • 3Engine Torque Strut Mount: Lower or Front or Front Lower

Install steps

Good to knowReplace all 3 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Automatic Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Right Engine Mount

    Right. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Engine Torque Strut Mount

    Lower or Front or Front Lower. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
