ETK-219
How to install the 4 Piece Front & Rear Engine & Auto Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
The car it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2013–2015 | Toyota | RAV4 | L4 2.5L |
What's in the box 4 pieces

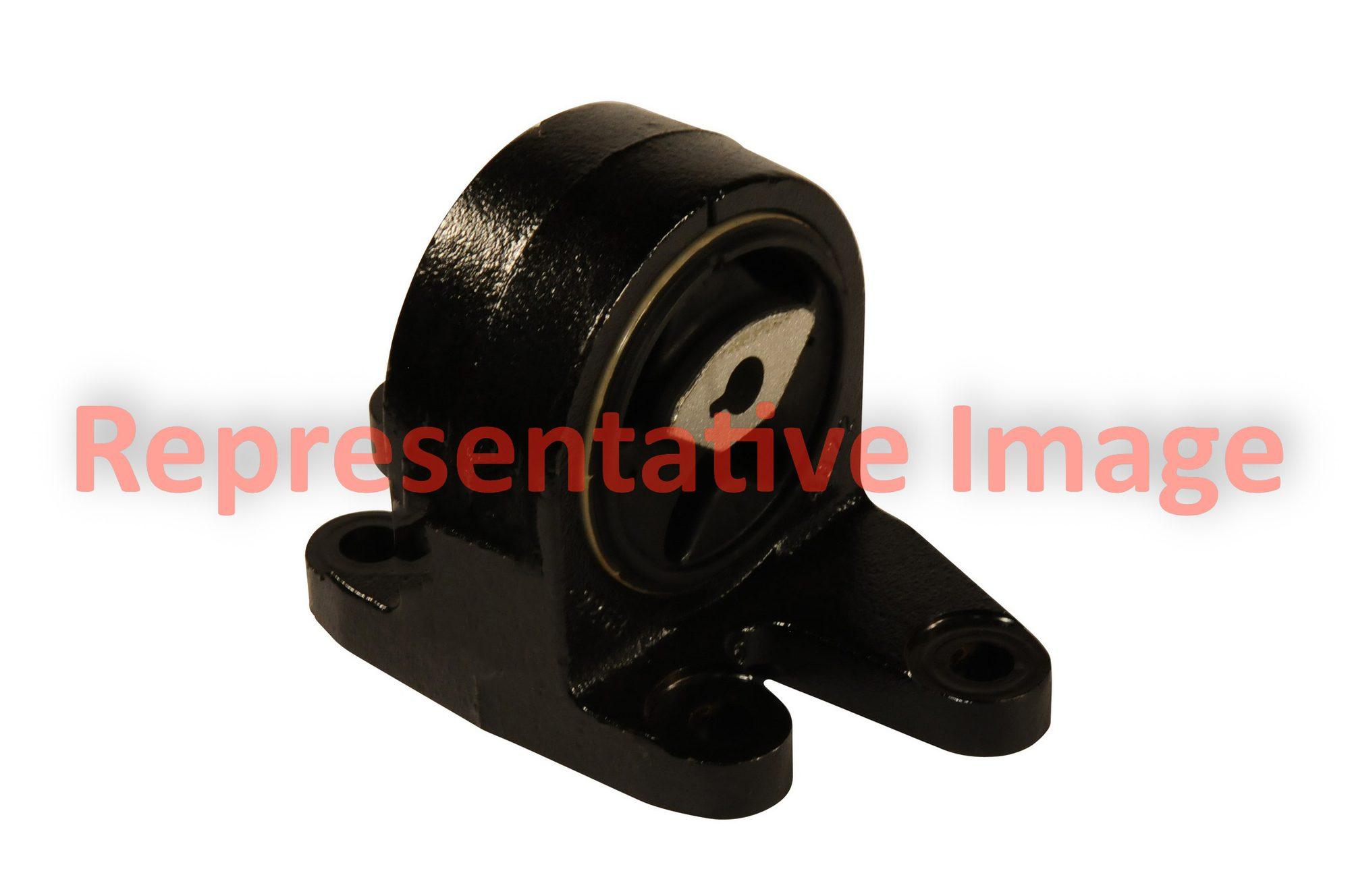

1Automatic Transmission Mount

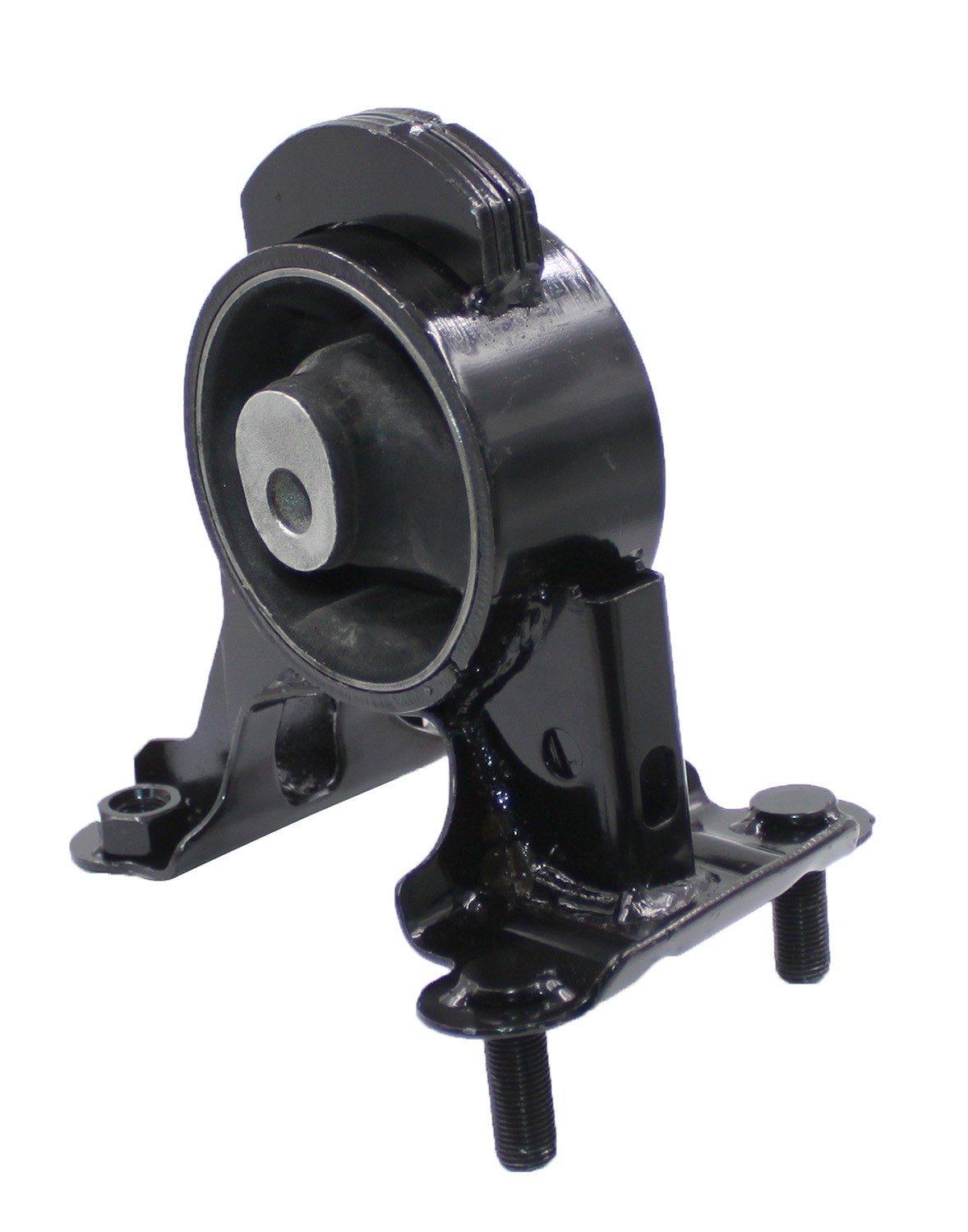

2Rear Engine Mount
Rear

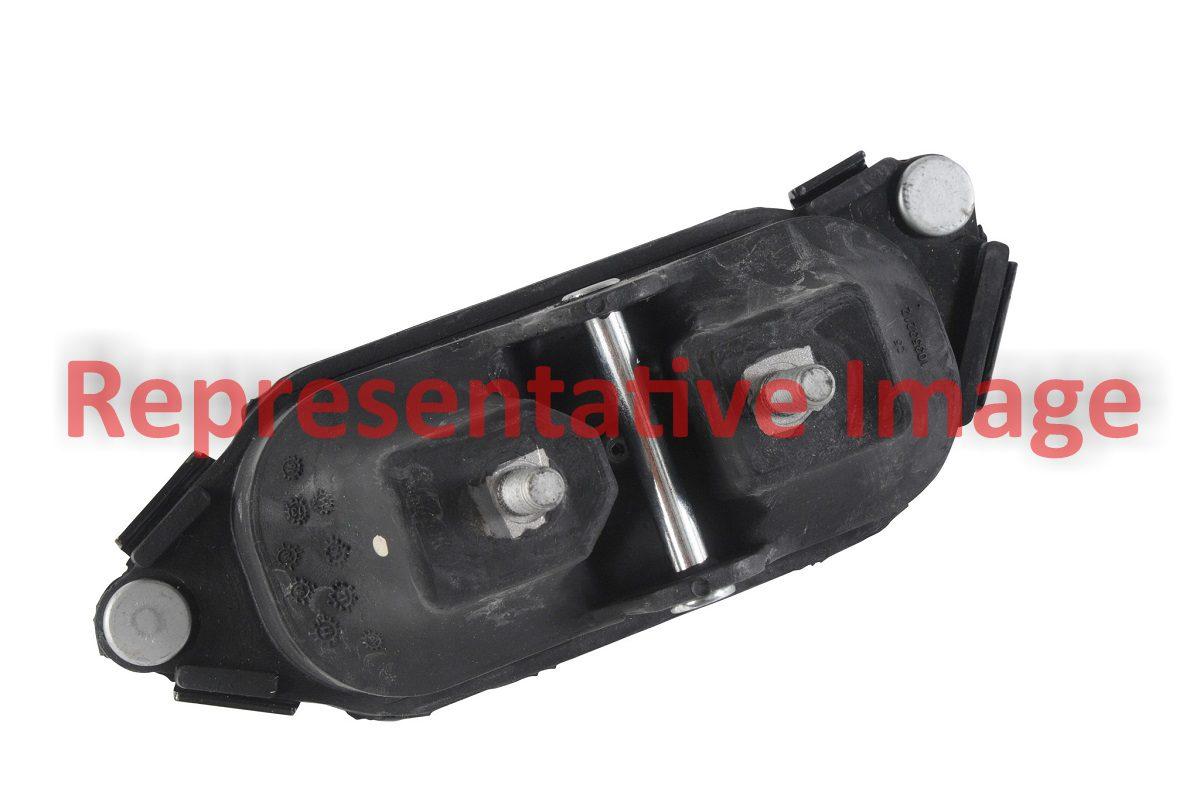

3Right Engine Mount
Right
4Front Engine Mount
Front
Where each piece goes
- 1Automatic Transmission Mount
- 2Rear Engine Mount: Rear
- 3Right Engine Mount: Right
- 4Front Engine Mount: Front
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Automatic Transmission Mount
Remove the old mount and bolt the new one in hand-tight.
- 4
Rear Engine Mount
Rear. Remove the old mount and bolt the new one in hand-tight.
- 5
Right Engine Mount
Right. Remove the old mount and bolt the new one in hand-tight.
- 6
Front Engine Mount
Front. Remove the old mount and bolt the new one in hand-tight.
- 7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
