3 Piece Front Engine & Manual Trans Mount Kit

ETK-209

How to install the 3 Piece Front Engine & Manual Trans Mount Kit

3 piecesFits 1985–1995 Suzuki Samurai

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
1985–1995SuzukiSamuraiL4 1.3L

What's in the box 3 pieces

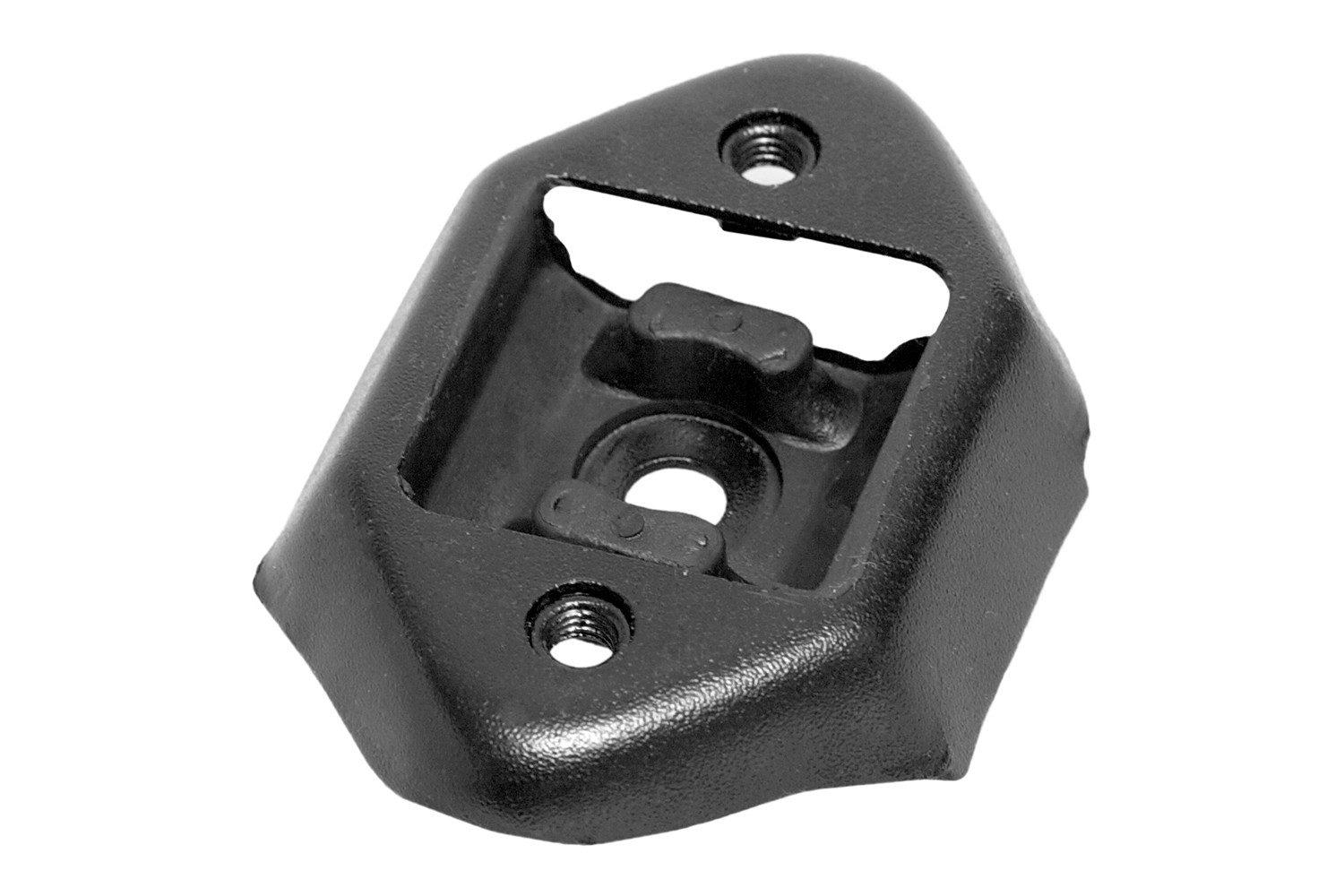

  • Manual Transmission Mount
    1

    Manual Transmission Mount

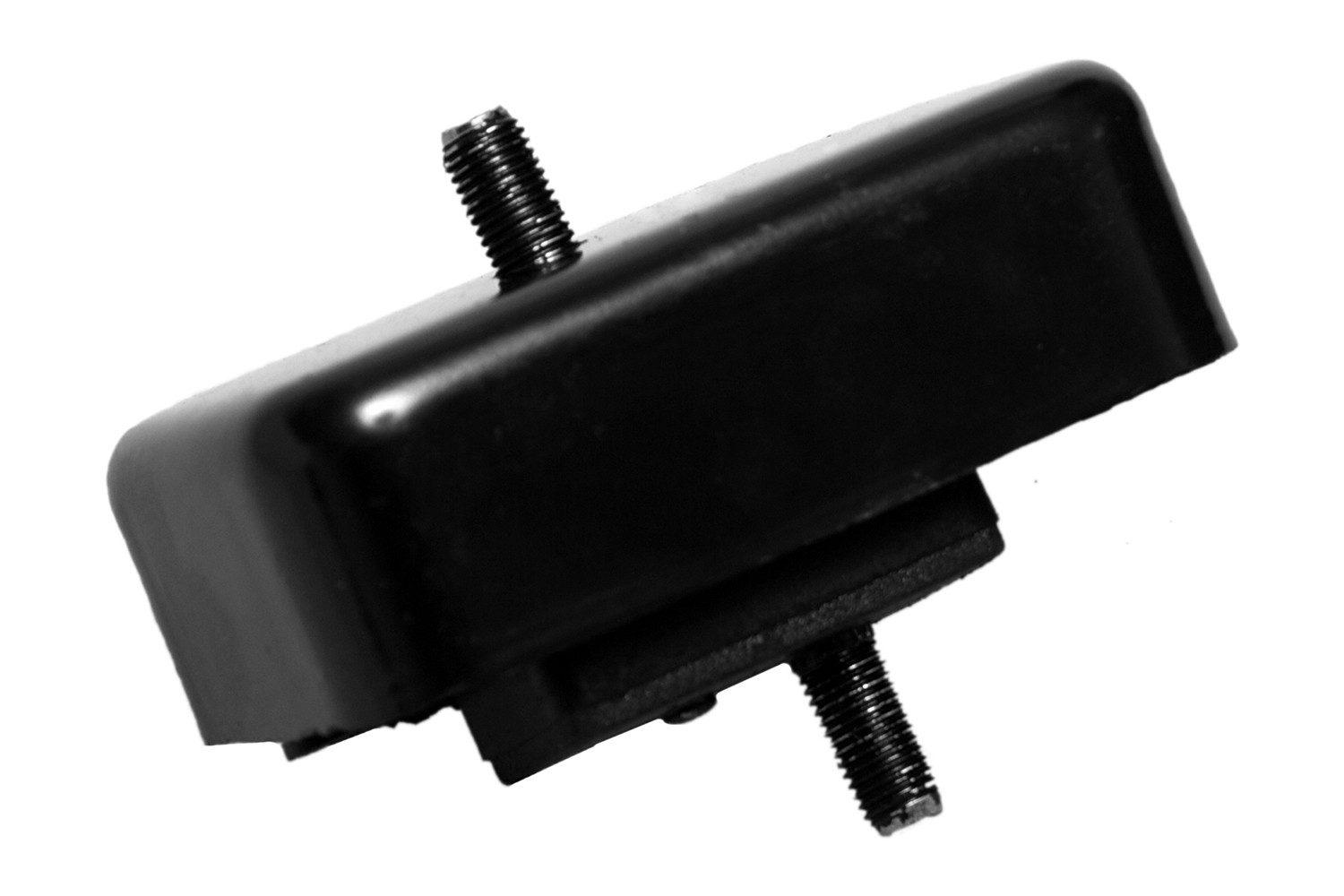

  • Front Engine Mount
    2

    2 × Front Engine Mount

    Front

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE2
  • 1Manual Transmission Mount
  • 2Front Engine Mount: Front

Install steps

Good to knowReplace all 3 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Manual Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
