3 Piece Front Engine & Auto Trans Mount Kit

ETK-206

How to install the 3 Piece Front Engine & Auto Trans Mount Kit

3 piecesFits 3 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 3 cars it fits
YearsMakeModelEngineChoose
1995–2004ToyotaTacomaL4 2.4L
1995–2004ToyotaTacomaL4 2.7L
1994–1998ToyotaT100L4 2.7L

What's in the box 3 pieces

  • Left Automatic Transmission Mount
    1

    Left Automatic Transmission Mount

    Left

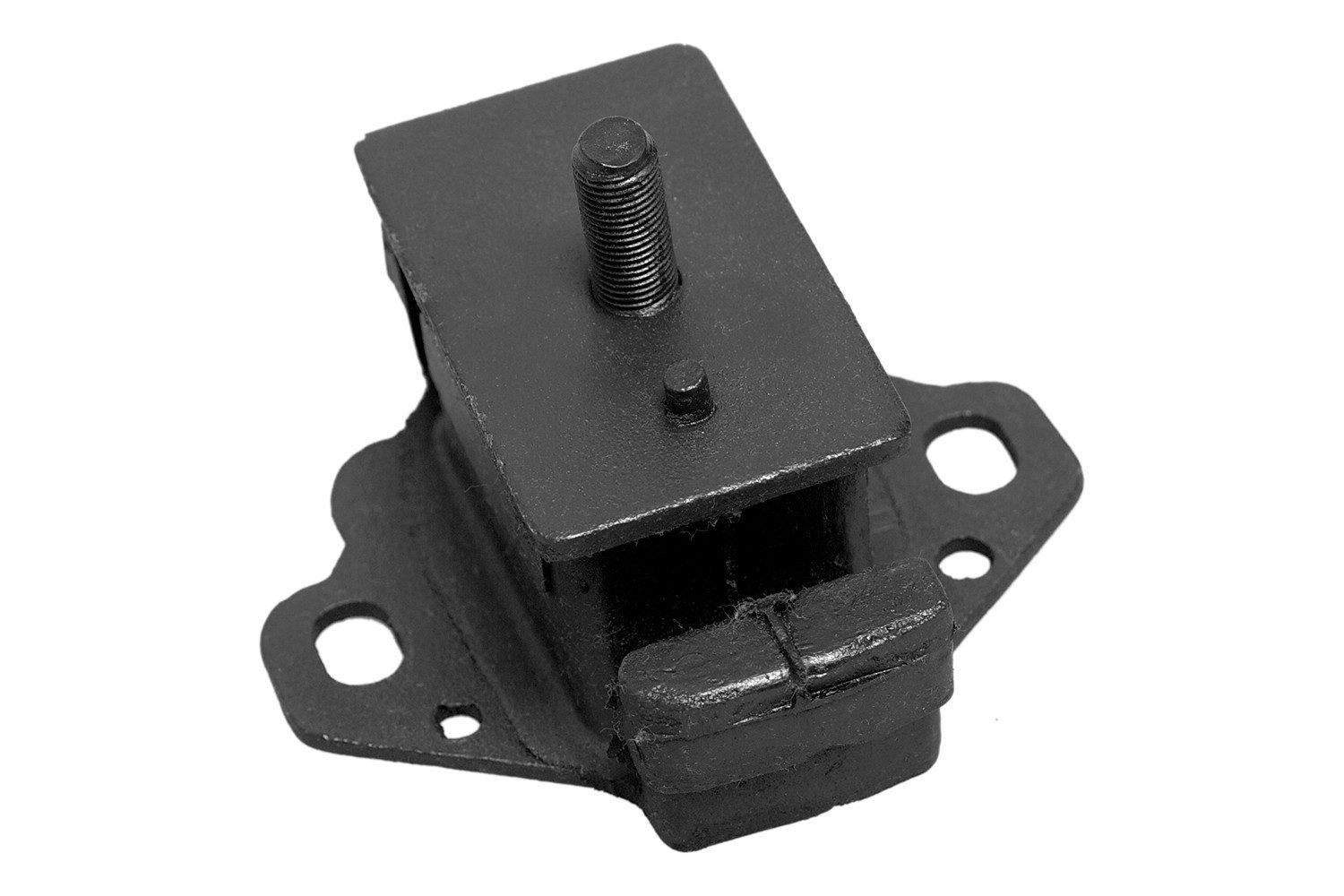

  • Front Engine Mount
    2

    2 × Front Engine Mount

    Front

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE12
  • 1Left Automatic Transmission Mount: Left
  • 2Front Engine Mount: Front

Install steps

Good to knowReplace all 3 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Left Automatic Transmission Mount

    Left. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
