4-Piece Front Rear Left Right Lower Engine & Manual Trans Mount Set

ETK-1761

How to install the 4-Piece Front Rear Left Right Lower Engine & Manual Trans Mount Set

4 piecesFits 2009–2012 Honda Accord

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2009–2012HondaAccordL4 2.4L

What's in the box 4 pieces

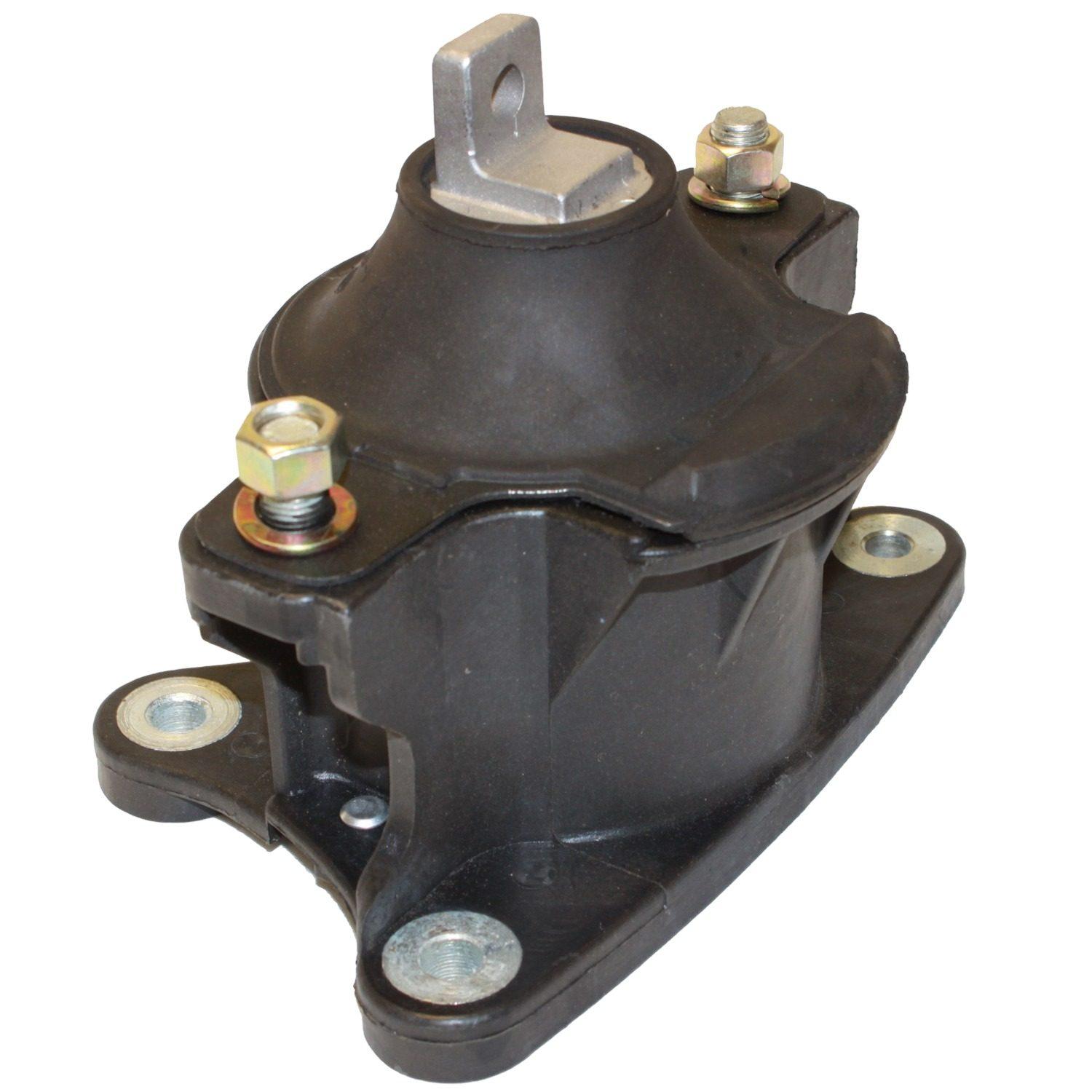

  • Front Engine Mount
    1

    Front Engine Mount

    Front

  • Engine Mount
    2

    Engine Mount

    Rear Left or Rear

  • Engine Mount
    3

    Engine Mount

    Right or Front Right

  • Lower Manual Transmission Mount
    4

    Lower Manual Transmission Mount

    Lower

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE122334
  • 1Front Engine Mount: Front
  • 2Engine Mount: Rear Left or Rear
  • 3Engine Mount: Right or Front Right
  • 4Lower Manual Transmission Mount: Lower

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Mount

    Rear Left or Rear. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Engine Mount

    Right or Front Right. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Lower Manual Transmission Mount

    Lower. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
