4-Piece Front Rear Engine & Auto Trans Mount Set

ETK-1663

How to install the 4-Piece Front Rear Engine & Auto Trans Mount Set

4 piecesFits 2003–2006 Subaru Baja

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2003–2006SubaruBajaH4 2.5L

What's in the box 4 pieces

  • Engine Mount
    1

    2 × Engine Mount

    Front or Front Left or Rear

  • Engine Torque Strut Mount
    2

    Engine Torque Strut Mount

    Front or Rear

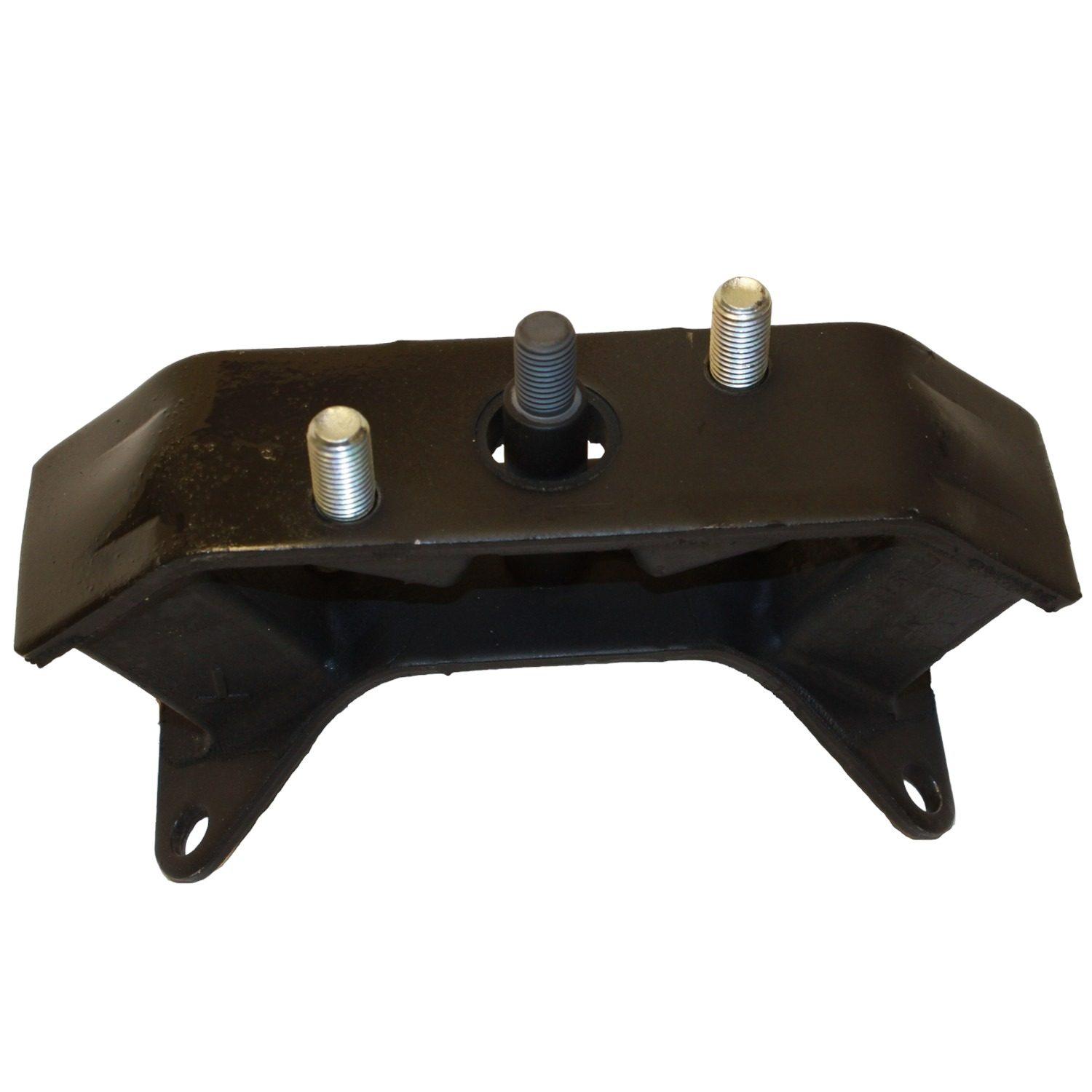

  • Automatic Transmission Mount
    3

    Automatic Transmission Mount

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE11122
  • 1Engine Mount: Front or Front Left or Rear
  • 2Engine Torque Strut Mount: Front or Rear
  • 3Automatic Transmission Mount

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Engine Mount

    Front or Front Left or Rear. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Torque Strut Mount

    Front or Rear. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Automatic Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
