ETK-1412
How to install the 5 Piece Front & Rear Engine & Manual Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
All 4 cars it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 1996–1997 | Honda | Civic del Sol | L4 1.6L | |
| 1993–1995 | Honda | Civic del Sol | L4 1.5L | |
| 1992–1993 | Honda | Civic | L4 1.5L | |
| 1992–1993 | Honda | Civic | L4 1.6L |
What's in the box 5 pieces
1Rear Engine Mount
Rear

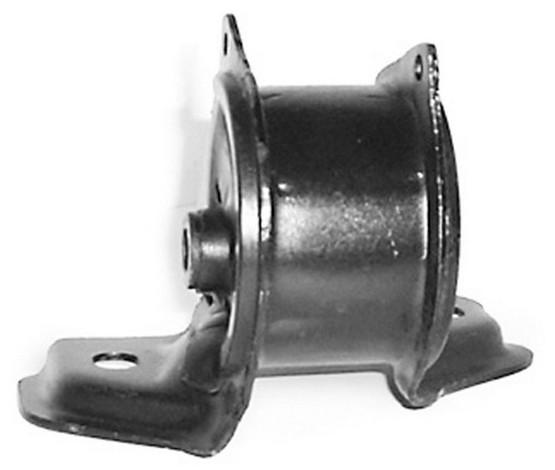

2Manual Transmission Mount
3Engine Mount
Front Left Lower or Front Left or Front Right
4Engine Mount
Front or Front Right
5Engine Mount
Front Left Upper or Rear Left
Where each piece goes
- 1Rear Engine Mount: Rear
- 2Manual Transmission Mount
- 3Engine Mount: Front Left Lower or Front Left or Front Right
- 4Engine Mount: Front or Front Right
- 5Engine Mount: Front Left Upper or Rear Left
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Rear Engine Mount
Rear. Remove the old mount and bolt the new one in hand-tight.
- 4
Manual Transmission Mount
Remove the old mount and bolt the new one in hand-tight.
- 5
Engine Mount
Front Left Lower or Front Left or Front Right. Remove the old mount and bolt the new one in hand-tight.
- 6
Engine Mount
Front or Front Right. Remove the old mount and bolt the new one in hand-tight.
- 7
Engine Mount
Front Left Upper or Rear Left. Remove the old mount and bolt the new one in hand-tight.
- 8
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
