ETK-1405
How to install the 5 Piece Front & Rear Engine & Manual Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
The car it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2005–2006 | Seat | Altea | L4 2.0L |
What's in the box 5 pieces
1Engine Mount
Front or Front Right or Right
2Engine Mount
Rear Lower or Front Lower or Front Left Lower

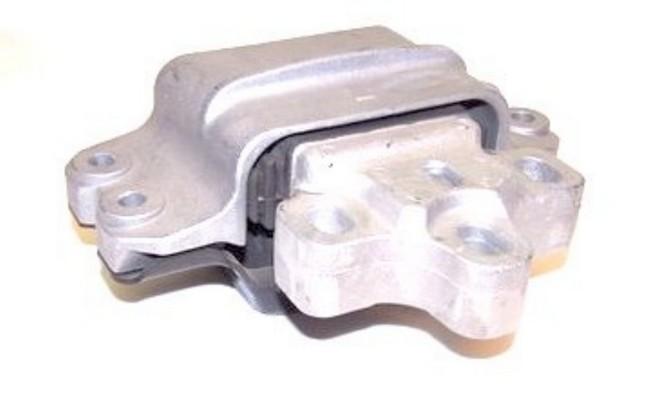

3Manual Transmission Mount
4Engine Mount
Front Left Upper or Front Upper or Rear Right
5Rear Engine Mount
Rear
Where each piece goes
- 1Engine Mount: Front or Front Right or Right
- 2Engine Mount: Rear Lower or Front Lower or Front Left Lower
- 3Manual Transmission Mount
- 4Engine Mount: Front Left Upper or Front Upper or Rear Right
- 5Rear Engine Mount: Rear
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Engine Mount
Front or Front Right or Right. Remove the old mount and bolt the new one in hand-tight.
- 4
Engine Mount
Rear Lower or Front Lower or Front Left Lower. Remove the old mount and bolt the new one in hand-tight.
- 5
Manual Transmission Mount
Remove the old mount and bolt the new one in hand-tight.
- 6
Engine Mount
Front Left Upper or Front Upper or Rear Right. Remove the old mount and bolt the new one in hand-tight.
- 7
Rear Engine Mount
Rear. Remove the old mount and bolt the new one in hand-tight.
- 8
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
