4 Piece Rear Engine & Manual Trans Mount Kit

ETK-127

How to install the 4 Piece Rear Engine & Manual Trans Mount Kit

4 piecesFits 2007–2012 Nissan Sentra

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2007–2012NissanSentraL4 2.5L

What's in the box 4 pieces

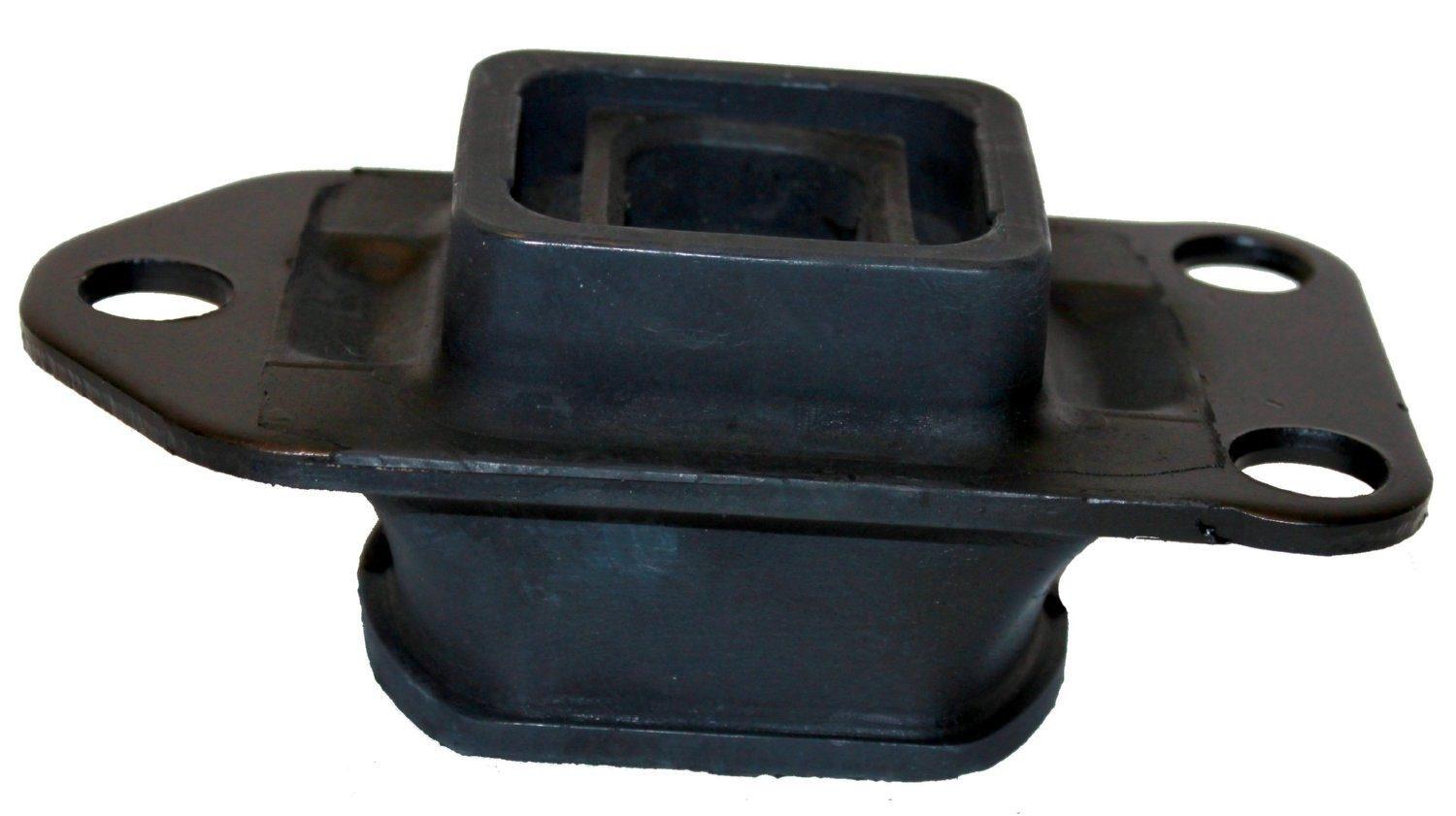

  • Manual Transmission Mount
    1

    Manual Transmission Mount

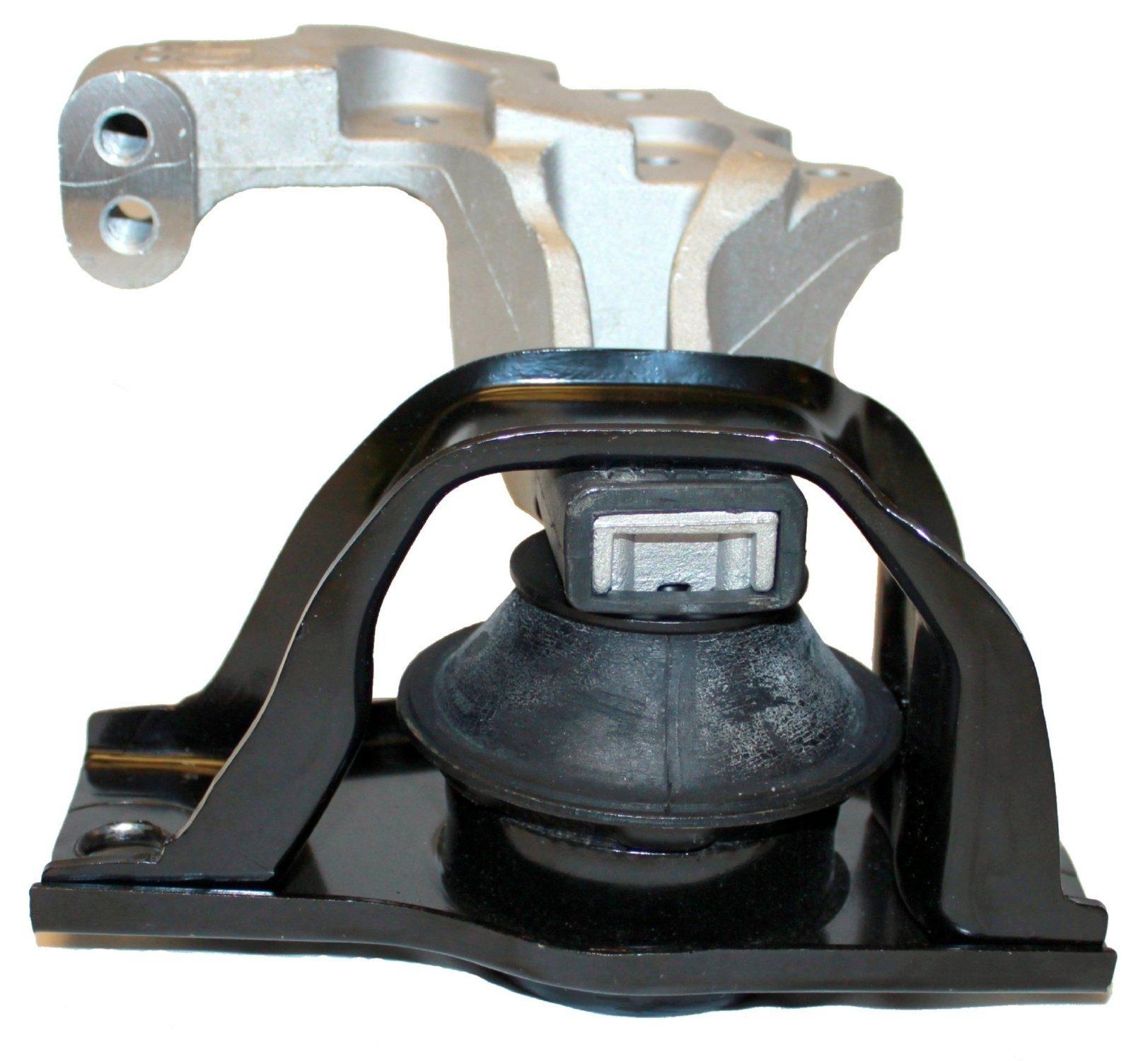

  • Right Engine Mount
    2

    Right Engine Mount

    Right

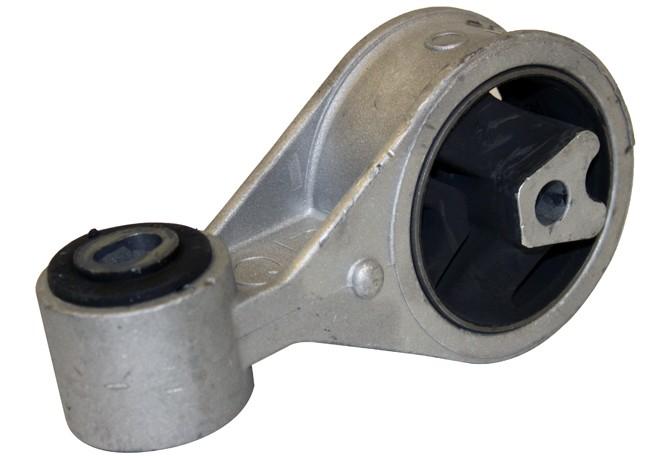

  • Rear Engine Torque Strut Mount
    3

    Rear Engine Torque Strut Mount

    Rear

  • Left Engine Torque Strut Mount
    4

    Left Engine Torque Strut Mount

    Left

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE234
  • 1Manual Transmission Mount
  • 2Right Engine Mount: Right
  • 3Rear Engine Torque Strut Mount: Rear
  • 4Left Engine Torque Strut Mount: Left

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Manual Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Right Engine Mount

    Right. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Rear Engine Torque Strut Mount

    Rear. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Left Engine Torque Strut Mount

    Left. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
