4 Piece Front Engine & Auto Trans Mount Kit

ETK-126

How to install the 4 Piece Front Engine & Auto Trans Mount Kit

4 piecesFits 2009–2011 Acura TL

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2009–2011AcuraTLV6 3.5L

What's in the box 4 pieces

  • Front Engine Mount
    1

    Front Engine Mount

    Front

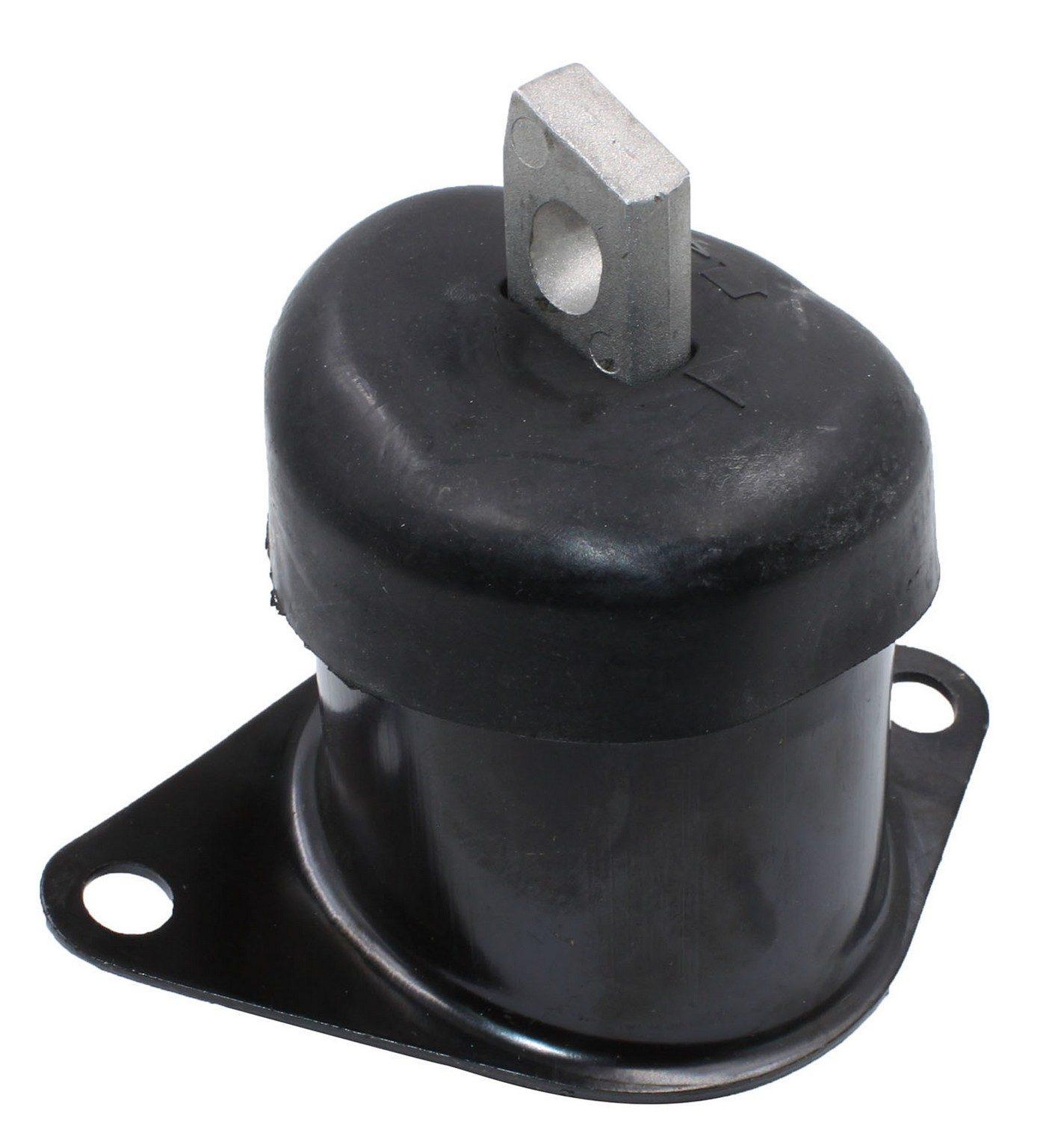

  • Engine Mount
    2

    Engine Mount

    Right or Front Right

  • Upper Automatic Transmission Mount
    3

    Upper Automatic Transmission Mount

    Upper

  • Lower Automatic Transmission Mount
    4

    Lower Automatic Transmission Mount

    Lower

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE12234
  • 1Front Engine Mount: Front
  • 2Engine Mount: Right or Front Right
  • 3Upper Automatic Transmission Mount: Upper
  • 4Lower Automatic Transmission Mount: Lower

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Mount

    Right or Front Right. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Upper Automatic Transmission Mount

    Upper. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Lower Automatic Transmission Mount

    Lower. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
