4 Piece Front & Rear Engine & Auto Trans Mount Kit

ETK-094

How to install the 4 Piece Front & Rear Engine & Auto Trans Mount Kit

4 piecesFits 3 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 3 cars it fits
YearsMakeModelEngineChoose
2005–2011FordEscapeV6 3.0L
2005–2011MazdaTributeV6 3.0L
2005–2011MercuryMarinerV6 3.0L

What's in the box 4 pieces

  • Rear Engine Mount
    1

    Rear Engine Mount

    Rear

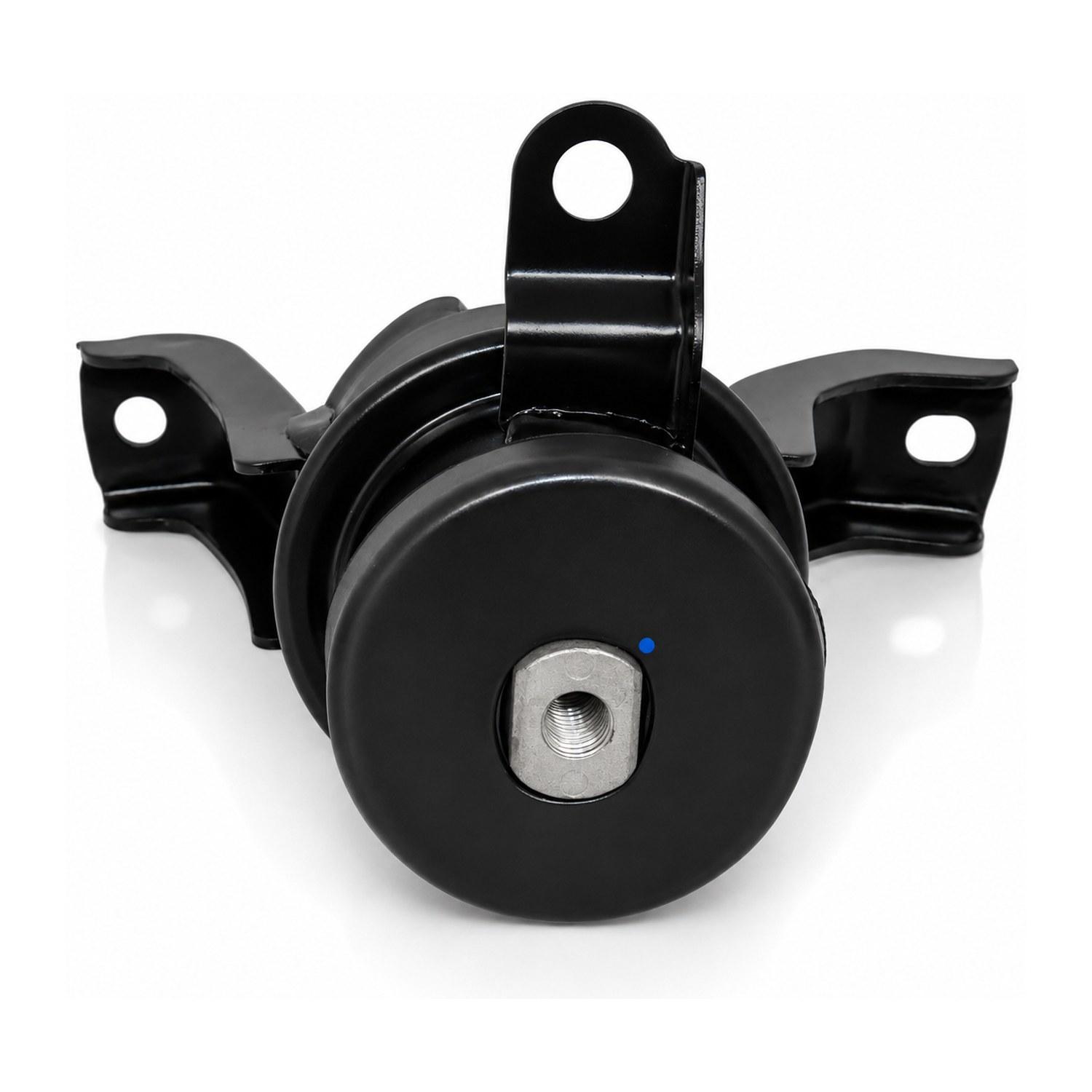

  • Engine Mount
    2

    Engine Mount

    Front or Right

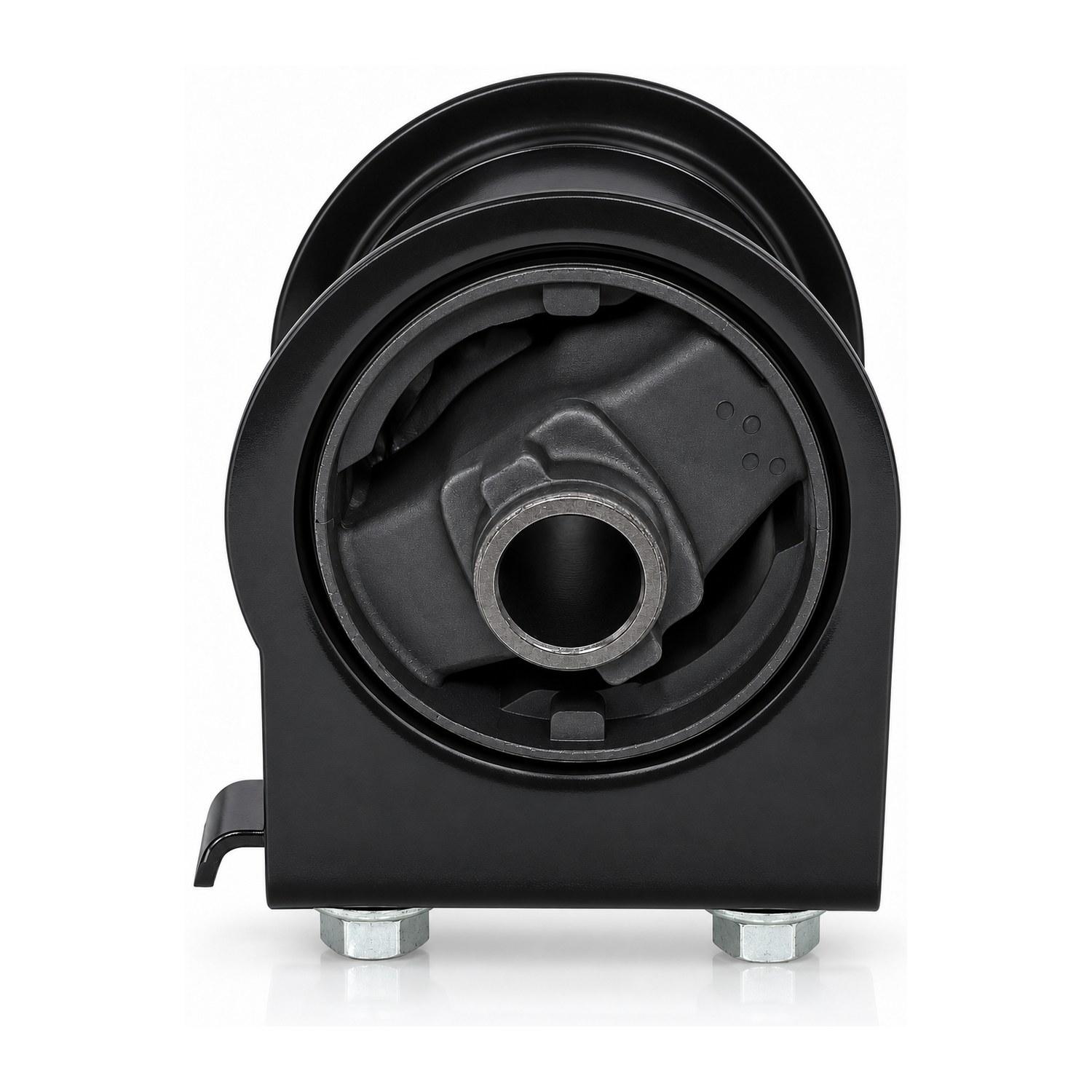

  • Engine Mount
    3

    Engine Mount

    Front Left or Front

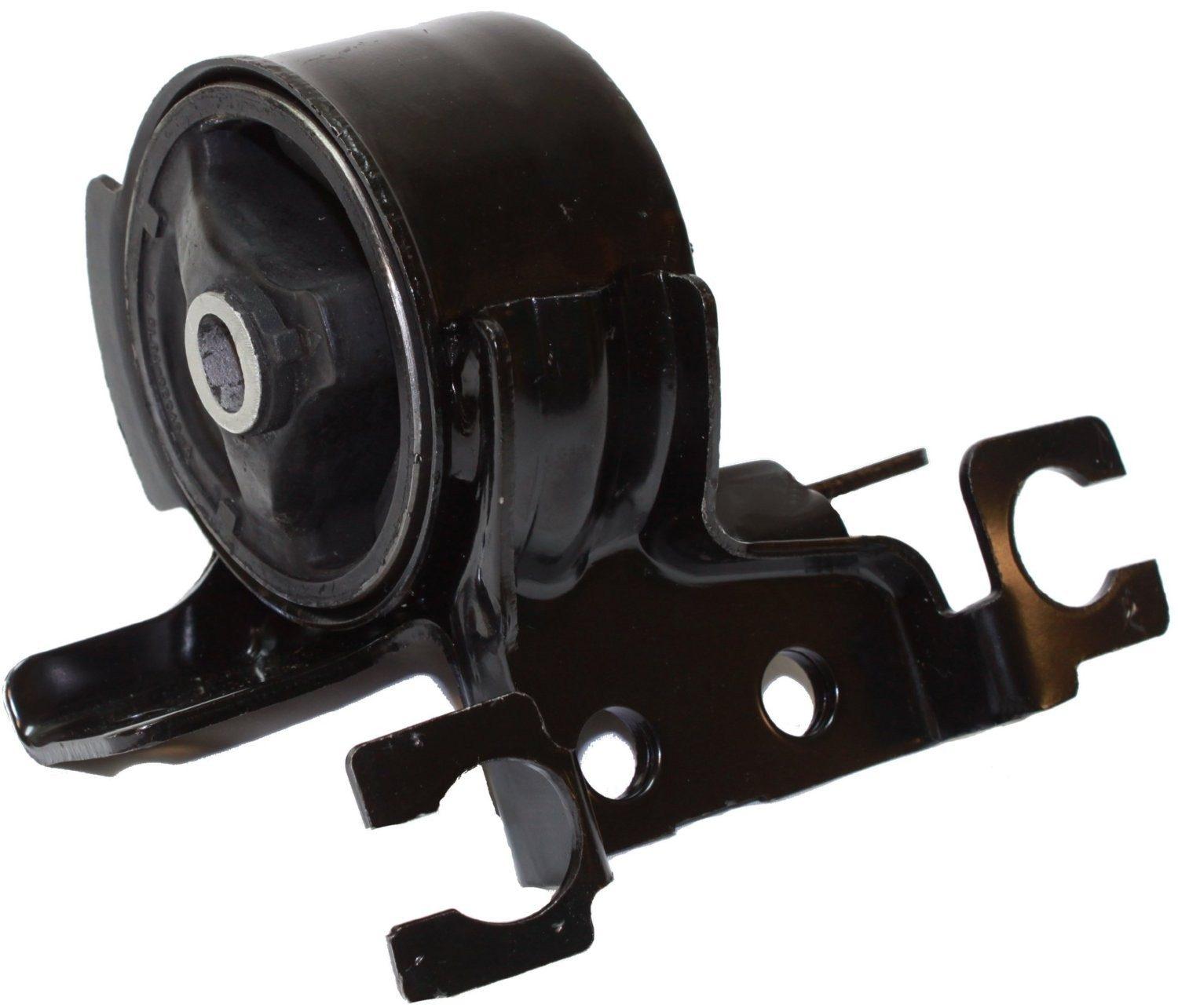

  • Automatic Transmission Mount
    4

    Automatic Transmission Mount

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE12233
  • 1Rear Engine Mount: Rear
  • 2Engine Mount: Front or Right
  • 3Engine Mount: Front Left or Front
  • 4Automatic Transmission Mount

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Rear Engine Mount

    Rear. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Mount

    Front or Right. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Engine Mount

    Front Left or Front. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Automatic Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
