3 Piece Front Engine & Auto Trans Mount Kit

ETK-057

How to install the 3 Piece Front Engine & Auto Trans Mount Kit

5 piecesFits 10 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 10 cars it fits
YearsMakeModelEngineChoose
2002–2006CadillacEscaladeV8 6.0L
2002–2006ChevroletAvalanche 1500V8 5.3L
1999–2006ChevroletSilverado 1500V8 4.8L
2004–2006ChevroletSilverado 1500V8 6.0L
2001–2006ChevroletSilverado 1500 HDV8 6.0L
2002–2006ChevroletSuburban 1500V8 5.3L
2002–2006ChevroletSuburban 2500V8 6.0L
2002–2006ChevroletTahoeV8 4.8L

What's in the box 5 pieces

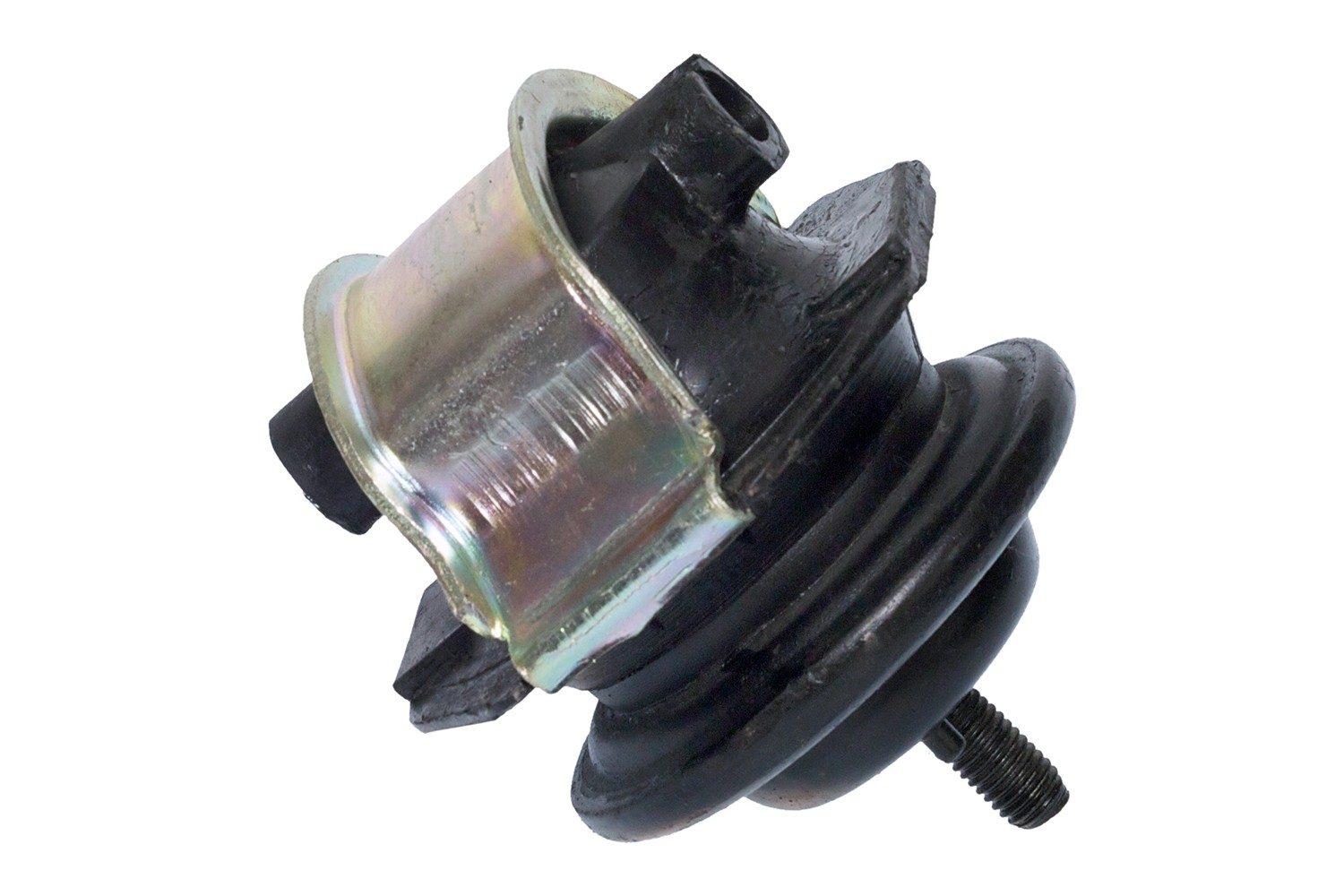

  • Front Engine Mount
    1

    2 × Front Engine Mount

    Front

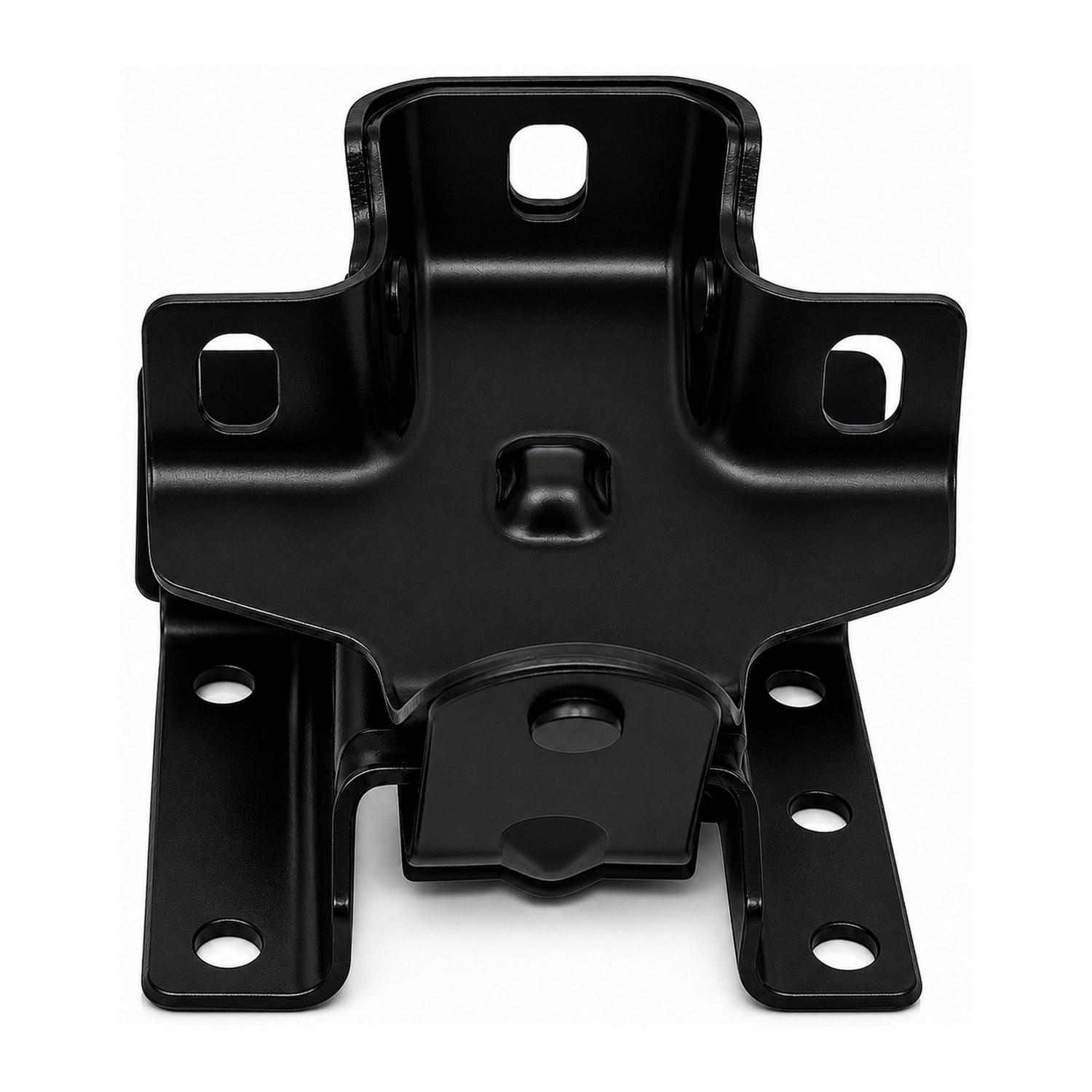

  • Front Engine Mount
    2

    2 × Front Engine Mount

    Front

  • Automatic Transmission Mount
    3

    Automatic Transmission Mount

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE12
  • 1Front Engine Mount: Front
  • 2Front Engine Mount: Front
  • 3Automatic Transmission Mount

Install steps

Good to knowReplace all 5 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Automatic Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
