3 Piece Front & Rear Engine & Auto Trans Mount Kit

ETK-048

How to install the 3 Piece Front & Rear Engine & Auto Trans Mount Kit

3 piecesFits 2013–2016 Ford Escape

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2013–2016FordEscapeL4 1.6L

What's in the box 3 pieces

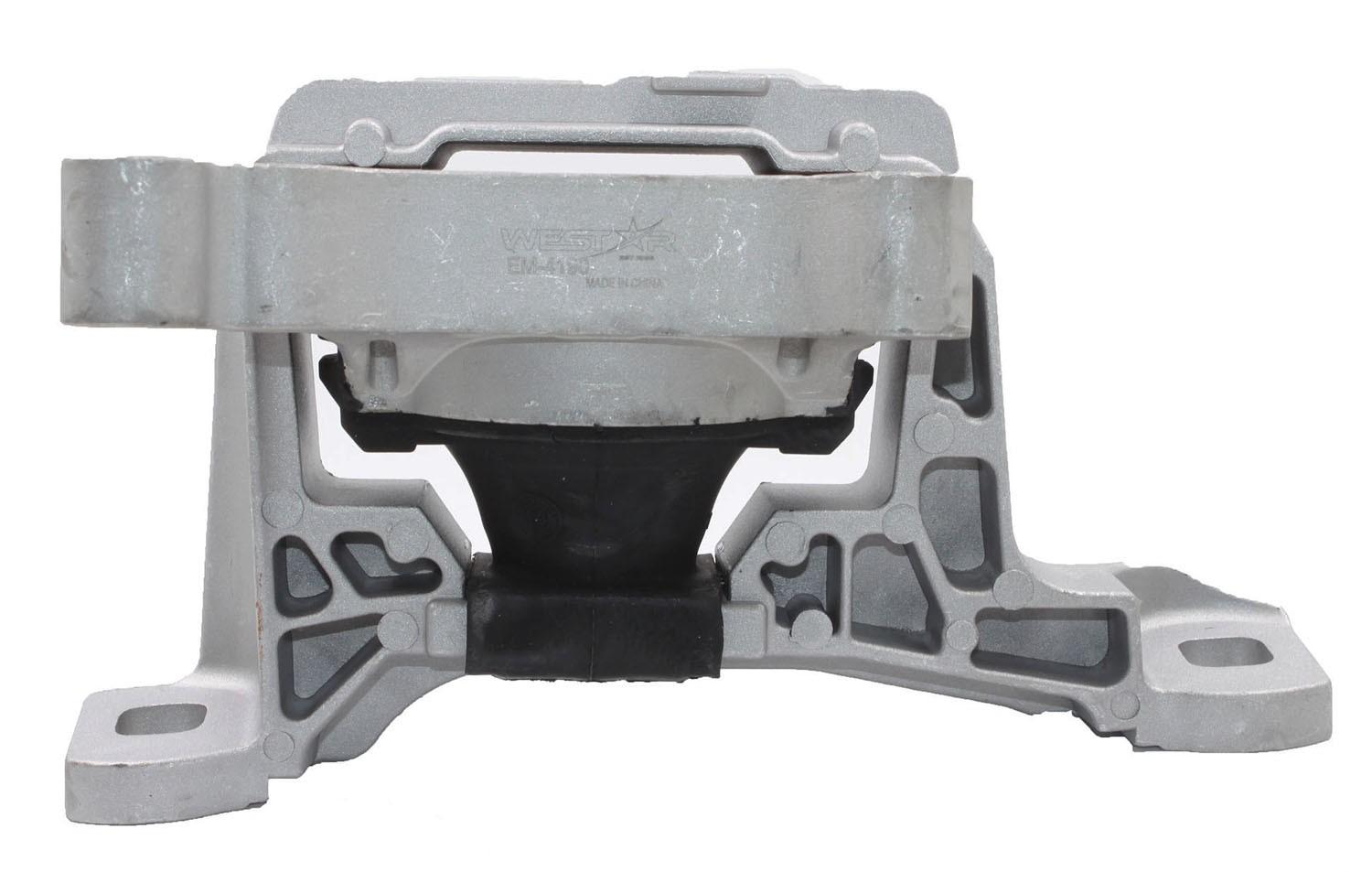

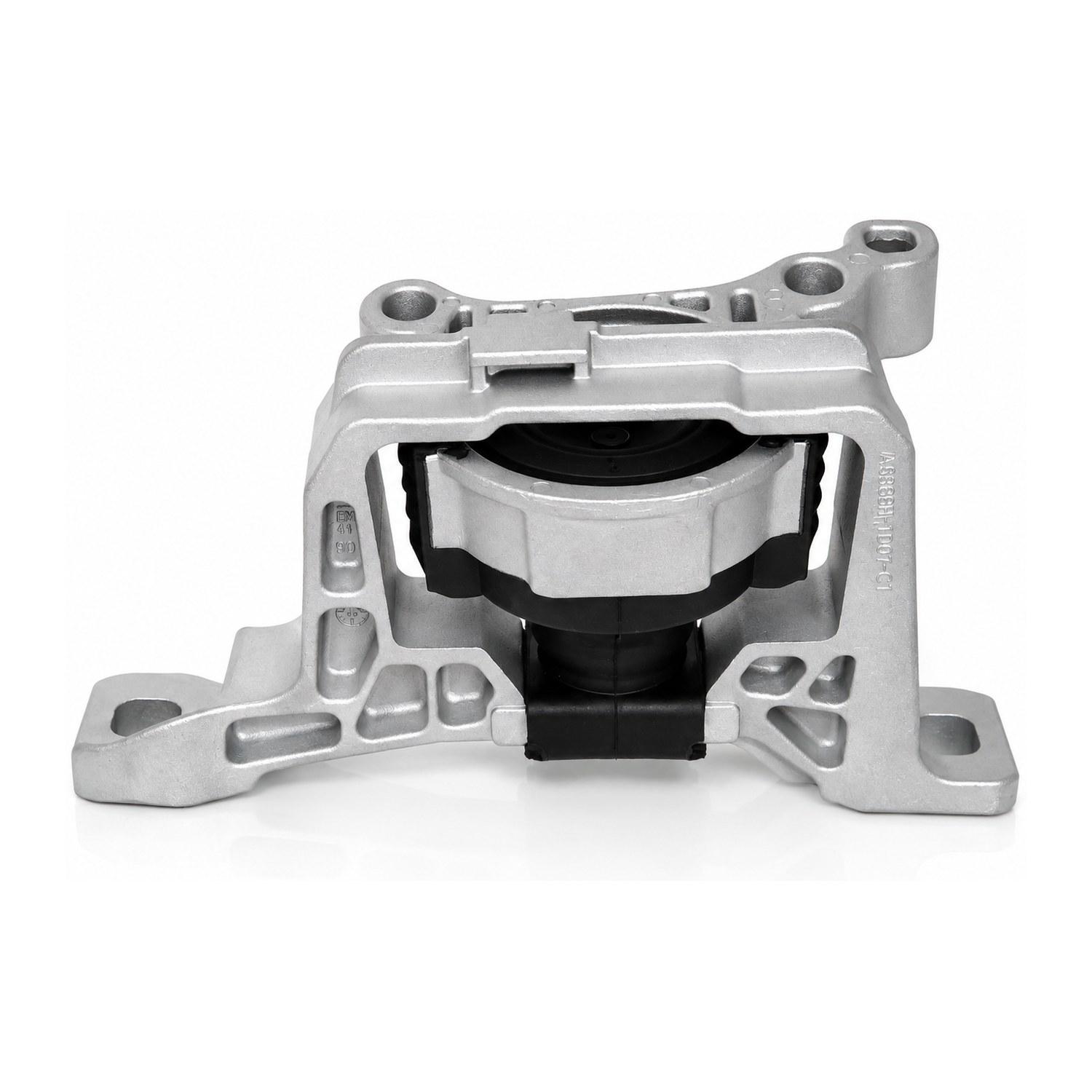

  • Right Engine Mount
    1

    Right Engine Mount

    Right

  • Engine Torque Strut Mount
    2

    Engine Torque Strut Mount

    Rear Lower or Front Lower

  • Upper Automatic Transmission Mount
    3

    Upper Automatic Transmission Mount

    Upper

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE1223
  • 1Right Engine Mount: Right
  • 2Engine Torque Strut Mount: Rear Lower or Front Lower
  • 3Upper Automatic Transmission Mount: Upper

Install steps

Good to knowReplace all 3 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Right Engine Mount

    Right. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Torque Strut Mount

    Rear Lower or Front Lower. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Upper Automatic Transmission Mount

    Upper. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
