4 Piece Front & Rear Engine & Auto Trans Mount Kit

ETK-046

How to install the 4 Piece Front & Rear Engine & Auto Trans Mount Kit

4 piecesFits 2011–2014 Toyota Sienna

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2011–2014ToyotaSiennaV6 3.5L

What's in the box 4 pieces

  • Engine Mount
    1

    Engine Mount

    Front or Front Left

  • Engine Mount
    2

    Engine Mount

    Right or Front Right

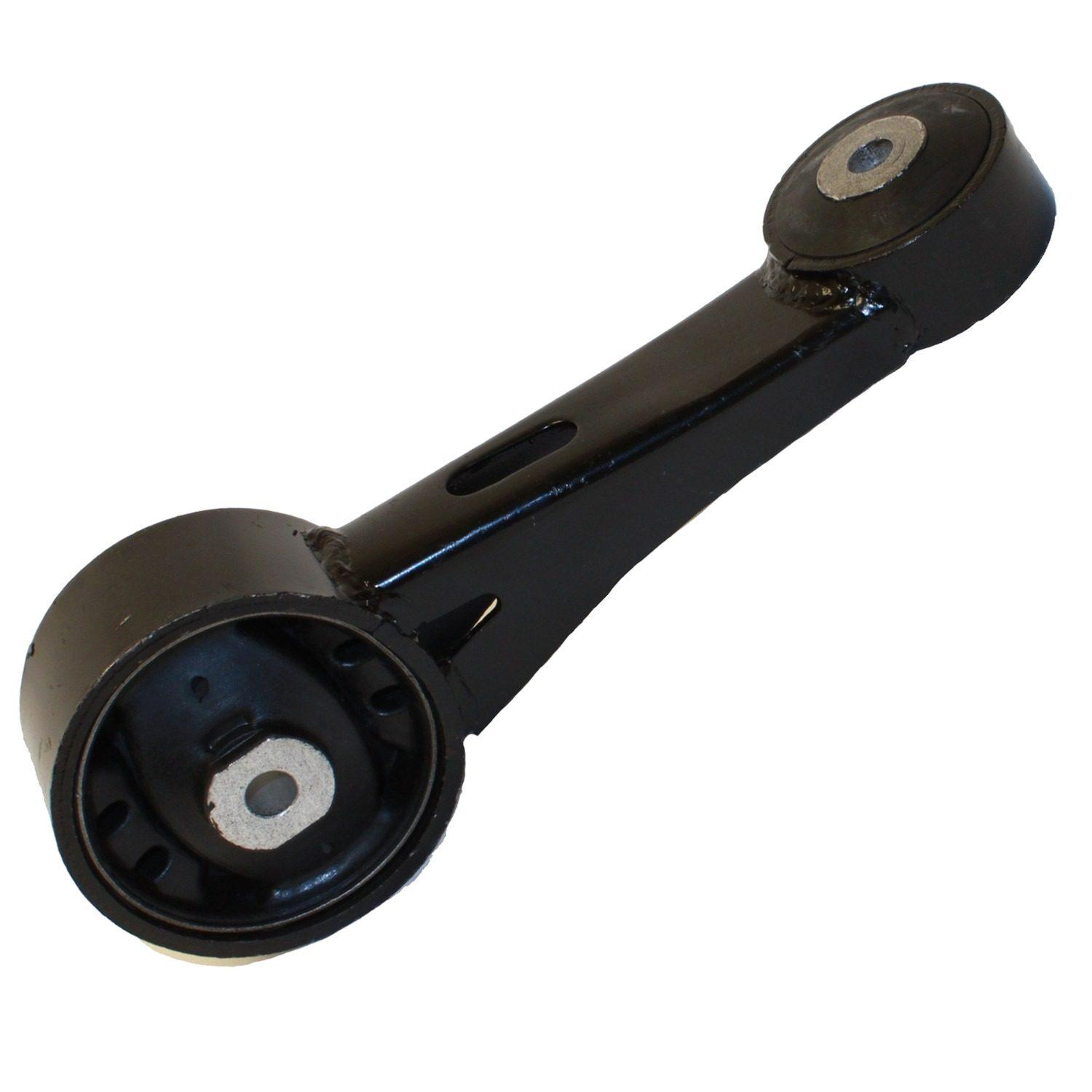

  • Rear Engine Torque Strut Mount
    3

    Rear Engine Torque Strut Mount

    Rear

  • Automatic Transmission Mount
    4

    Automatic Transmission Mount

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE11223
  • 1Engine Mount: Front or Front Left
  • 2Engine Mount: Right or Front Right
  • 3Rear Engine Torque Strut Mount: Rear
  • 4Automatic Transmission Mount

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Engine Mount

    Front or Front Left. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Mount

    Right or Front Right. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Rear Engine Torque Strut Mount

    Rear. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Automatic Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
