6 Piece Front Engine & Auto Trans Mount Kit

ETK-034

How to install the 6 Piece Front Engine & Auto Trans Mount Kit

6 piecesFits 8 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 8 cars it fits
YearsMakeModelEngineChoose
2000–2005ChevroletMonte CarloV6 3.4L
1994–2003PontiacGrand PrixV6 3.1L
1997–2003PontiacGrand PrixV6 3.8L
1995–2001ChevroletLuminaV6 3.1L
1998–1999ChevroletLuminaV6 3.8L
1995–1999ChevroletMonte CarloV6 3.1L
1994–1997OldsmobileCutlass SupremeV6 3.1L
1994–1996BuickRegalV6 3.1L

What's in the box 6 pieces

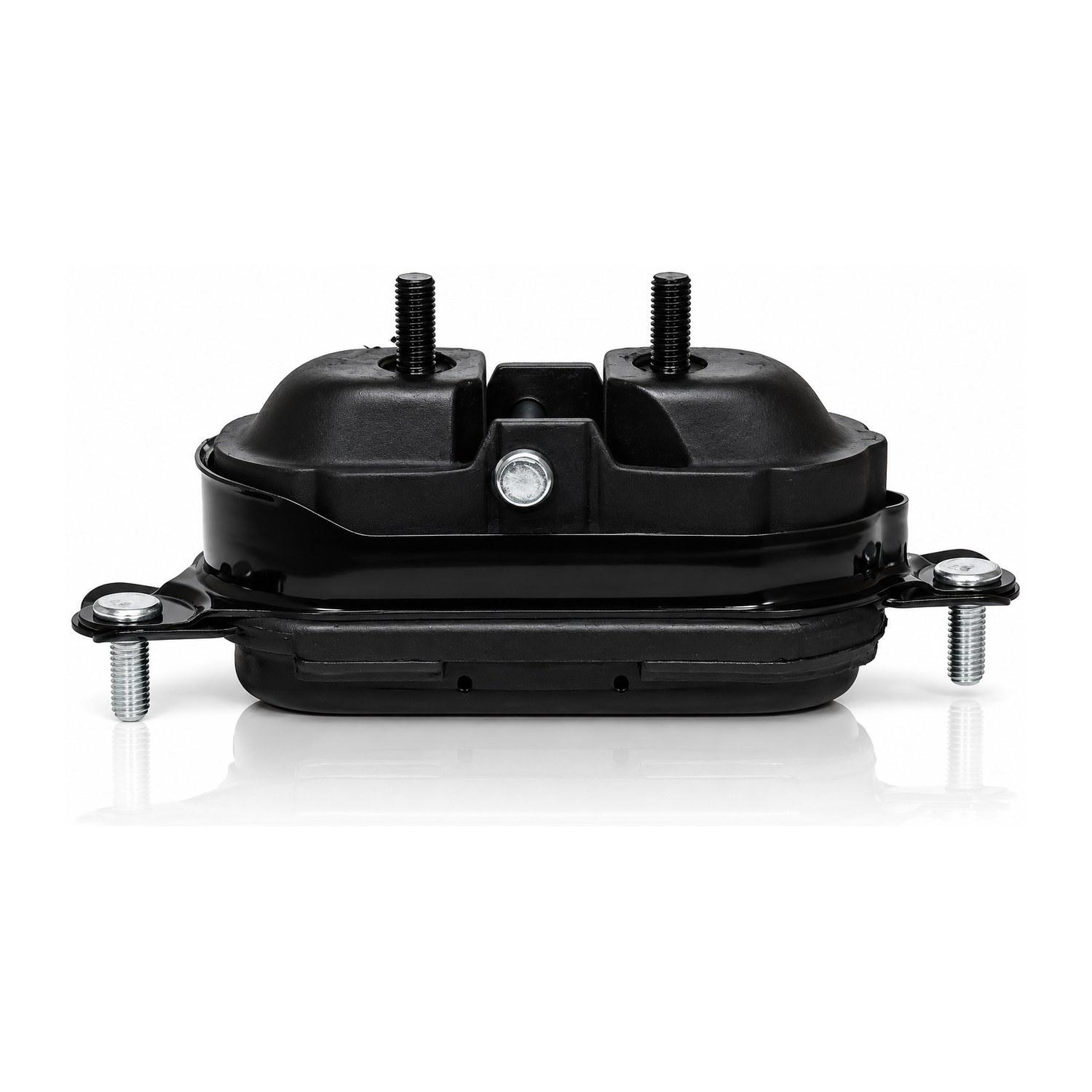

  • Engine Mount
    1

    Engine Mount

    Front Right or Front

  • Engine Torque Strut Mount
    2

    2 × Engine Torque Strut Mount

    Front or Front Left

  • Engine Torque Strut Mount
    3

    2 × Engine Torque Strut Mount

    Front or Front Left

  • Left Automatic Transmission Mount
    4

    Left Automatic Transmission Mount

    Left

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE1122334
  • 1Engine Mount: Front Right or Front
  • 2Engine Torque Strut Mount: Front or Front Left
  • 3Engine Torque Strut Mount: Front or Front Left
  • 4Left Automatic Transmission Mount: Left

Install steps

Good to knowReplace all 6 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Engine Mount

    Front Right or Front. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Engine Torque Strut Mount

    Front or Front Left. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Engine Torque Strut Mount

    Front or Front Left. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Left Automatic Transmission Mount

    Left. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
