4 Piece Front & Rear Engine & Auto Trans Mount Kit

ETK-021

How to install the 4 Piece Front & Rear Engine & Auto Trans Mount Kit

4 piecesFits 2009–2014 Nissan Maxima

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2009–2014NissanMaximaV6 3.5L

What's in the box 4 pieces

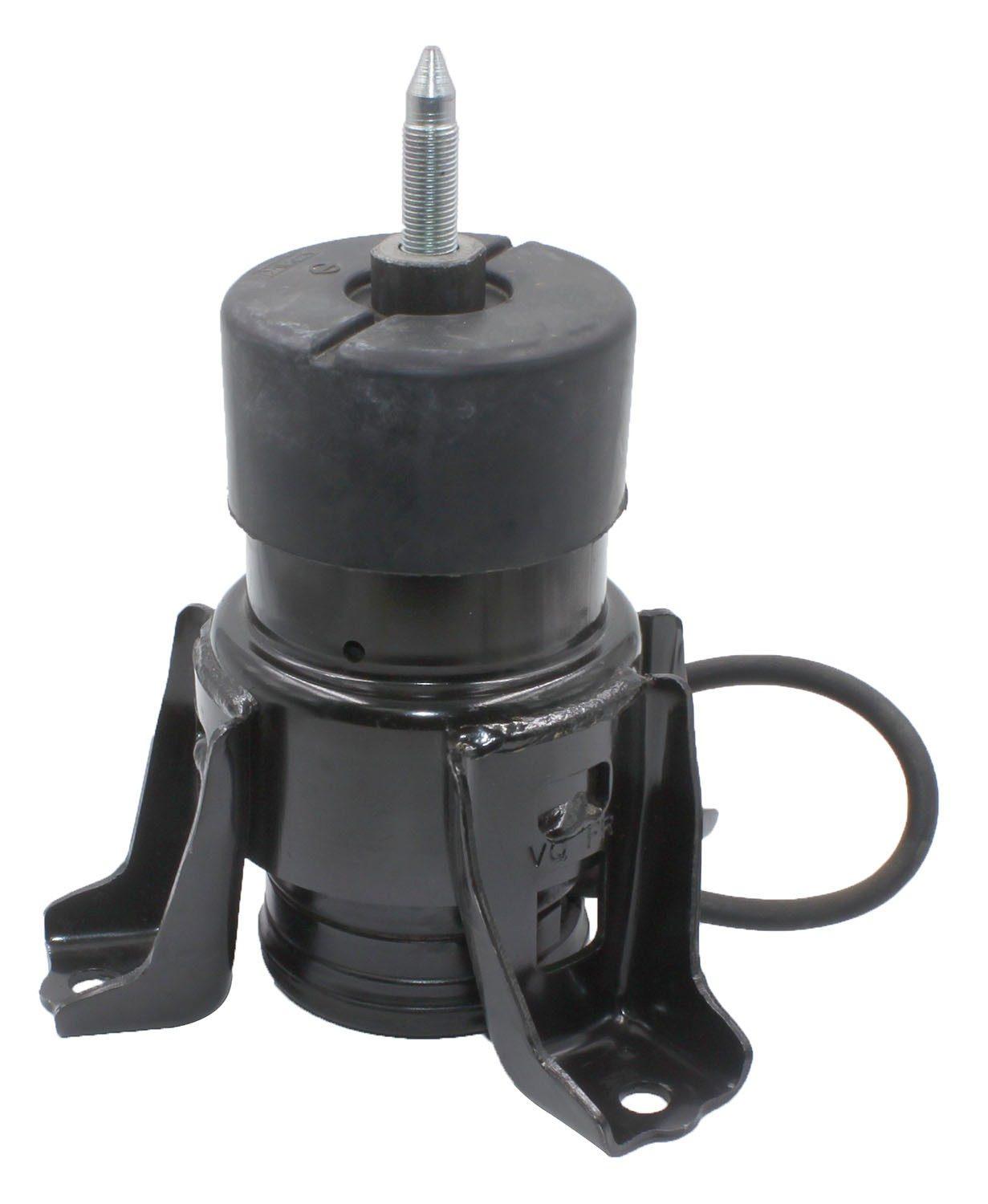

  • Front Engine Mount
    1

    Front Engine Mount

    Front

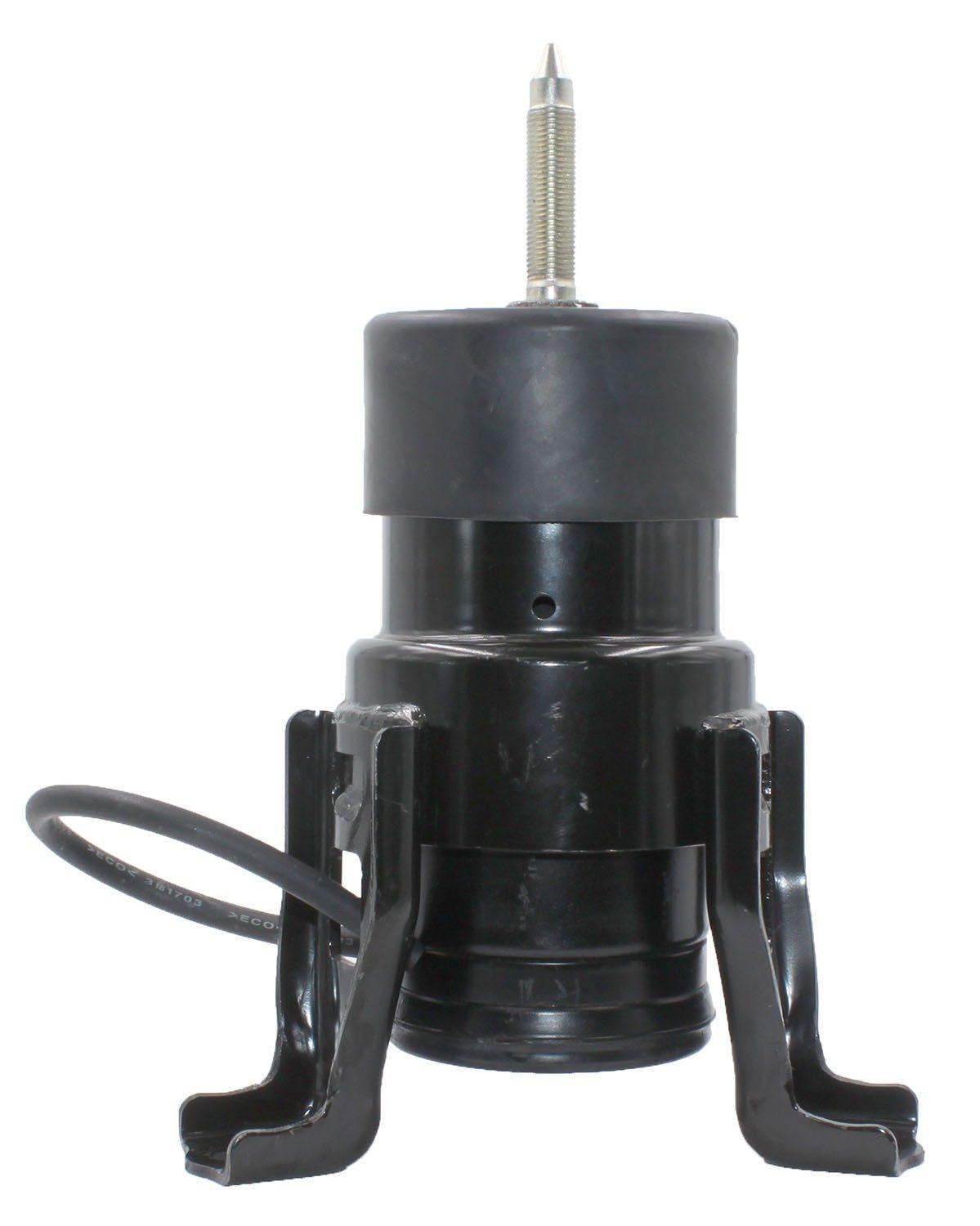

  • Rear Engine Mount
    2

    Rear Engine Mount

    Rear

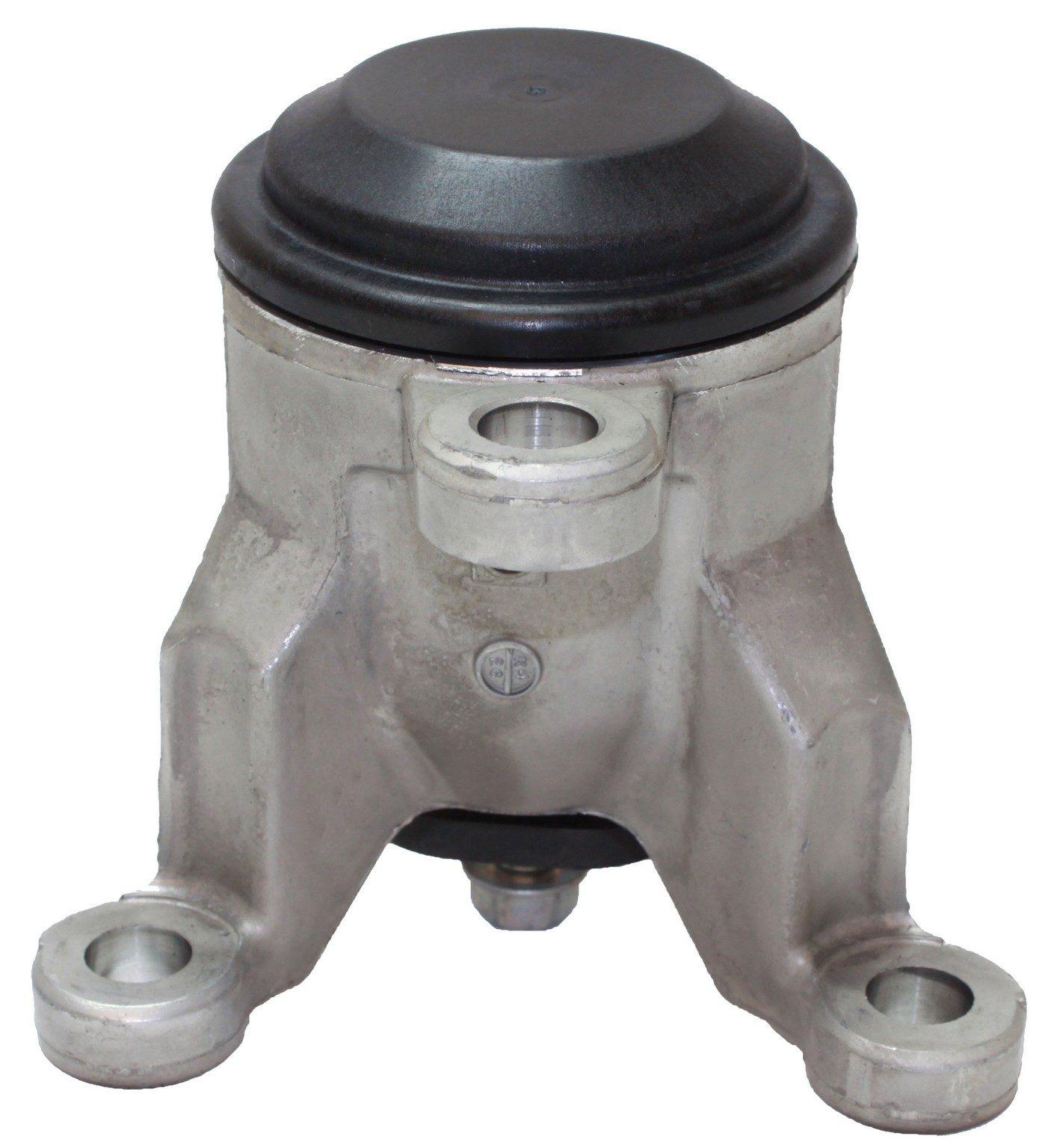

  • Right Engine Mount
    3

    Right Engine Mount

    Right

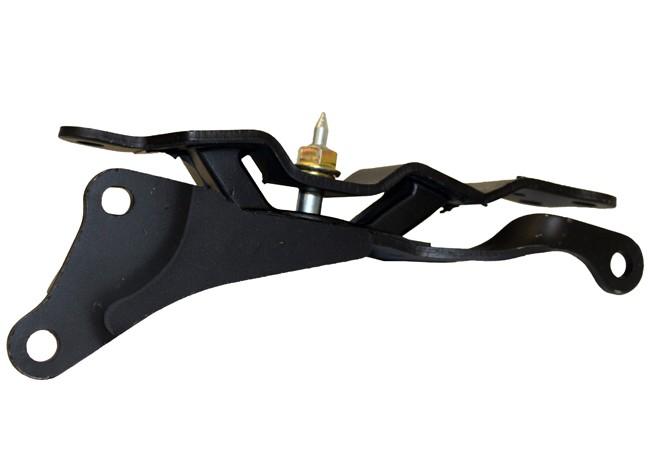

  • Automatic Transmission Mount
    4

    Automatic Transmission Mount

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE123
  • 1Front Engine Mount: Front
  • 2Rear Engine Mount: Rear
  • 3Right Engine Mount: Right
  • 4Automatic Transmission Mount

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Rear Engine Mount

    Rear. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Right Engine Mount

    Right. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Automatic Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
