ETK-014
How to install the 5 Piece Front & Rear Engine & Auto Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
All 2 cars it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2004–2006 | Toyota | Solara | L4 2.4L | |
| 2002–2005 | Toyota | Camry | L4 2.4L |
What's in the box 5 pieces

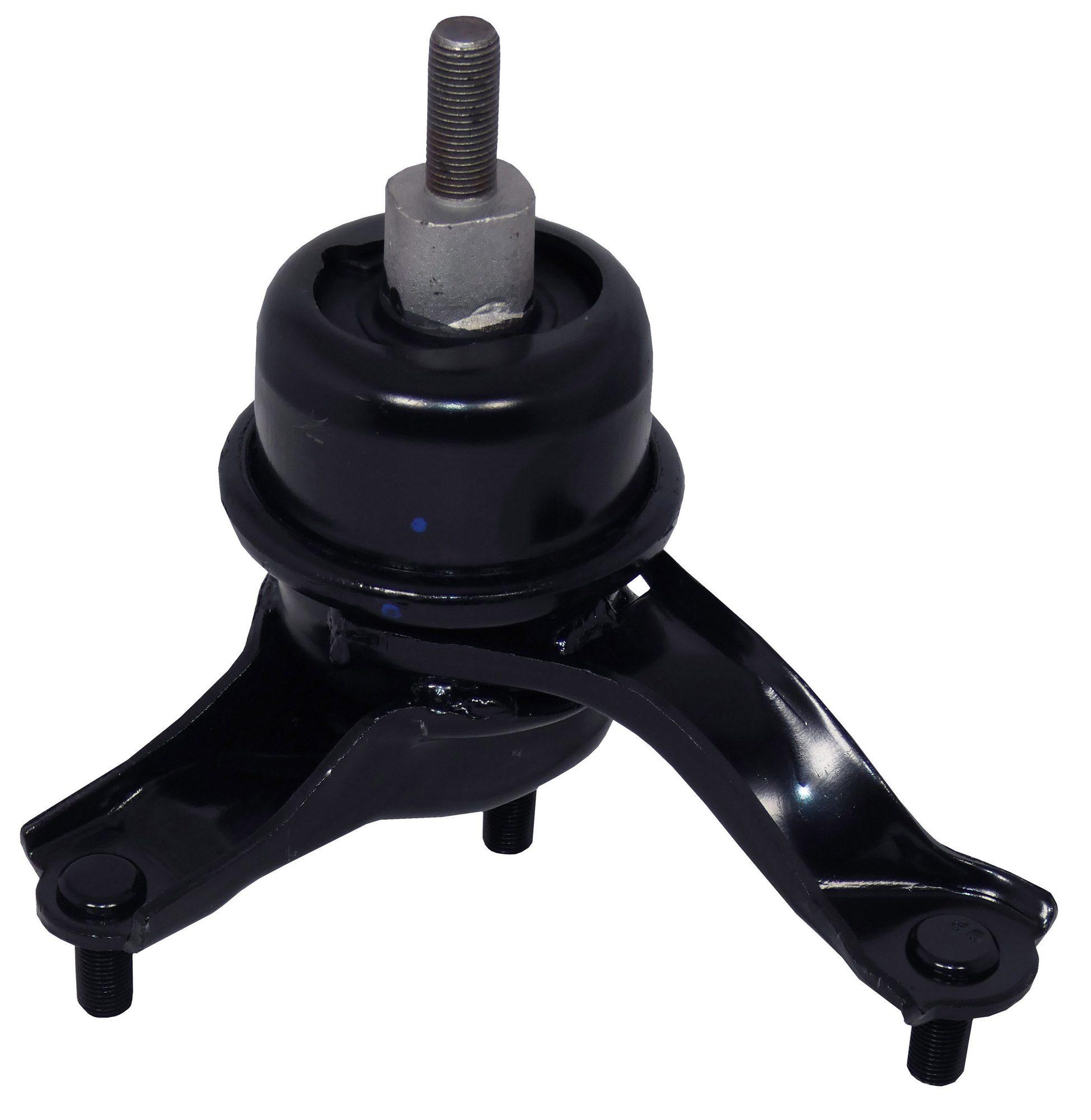

1Engine Mount
Right or Front Right

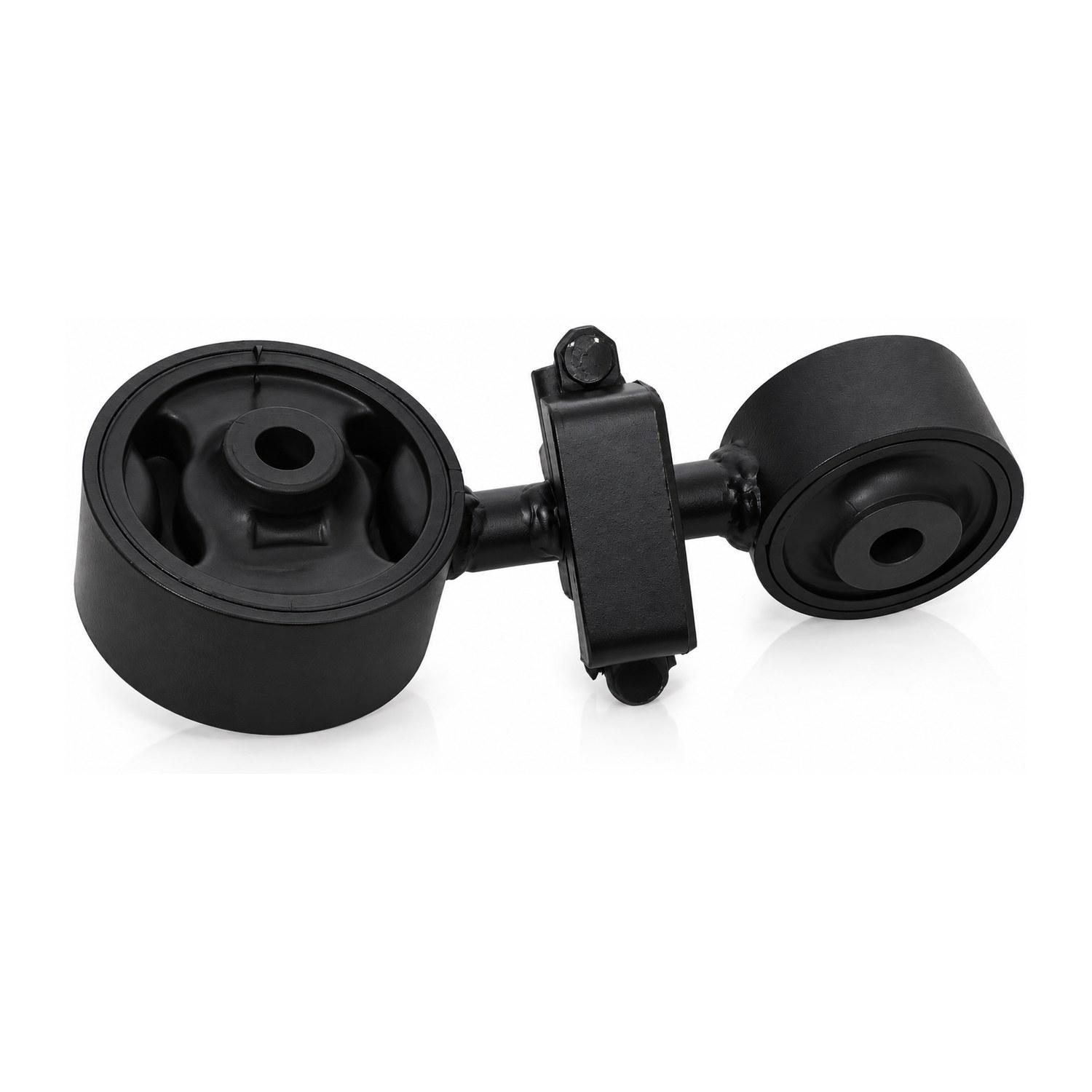

2Front Right Engine Torque Strut Mount
Front Right

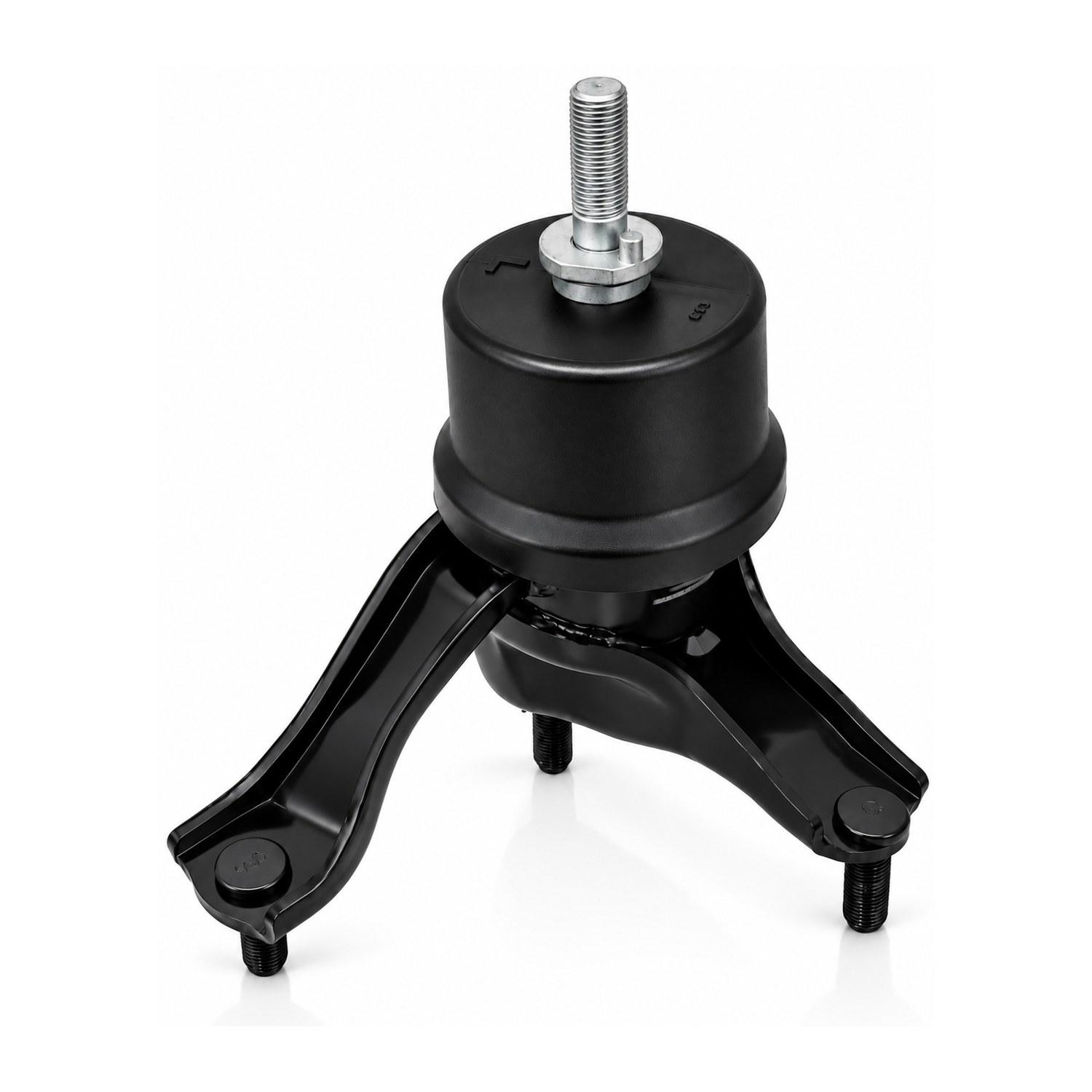

3Left Automatic Transmission Mount
Left

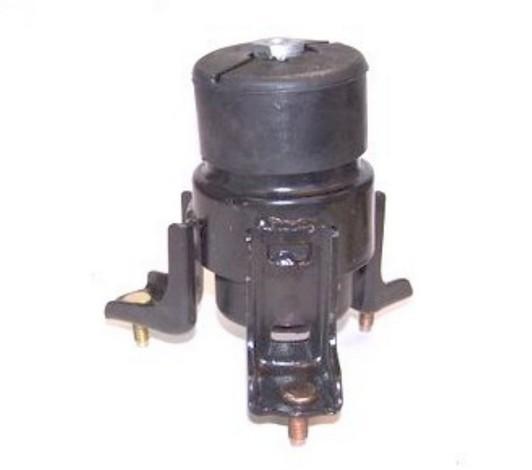

4Front Engine Mount
Front

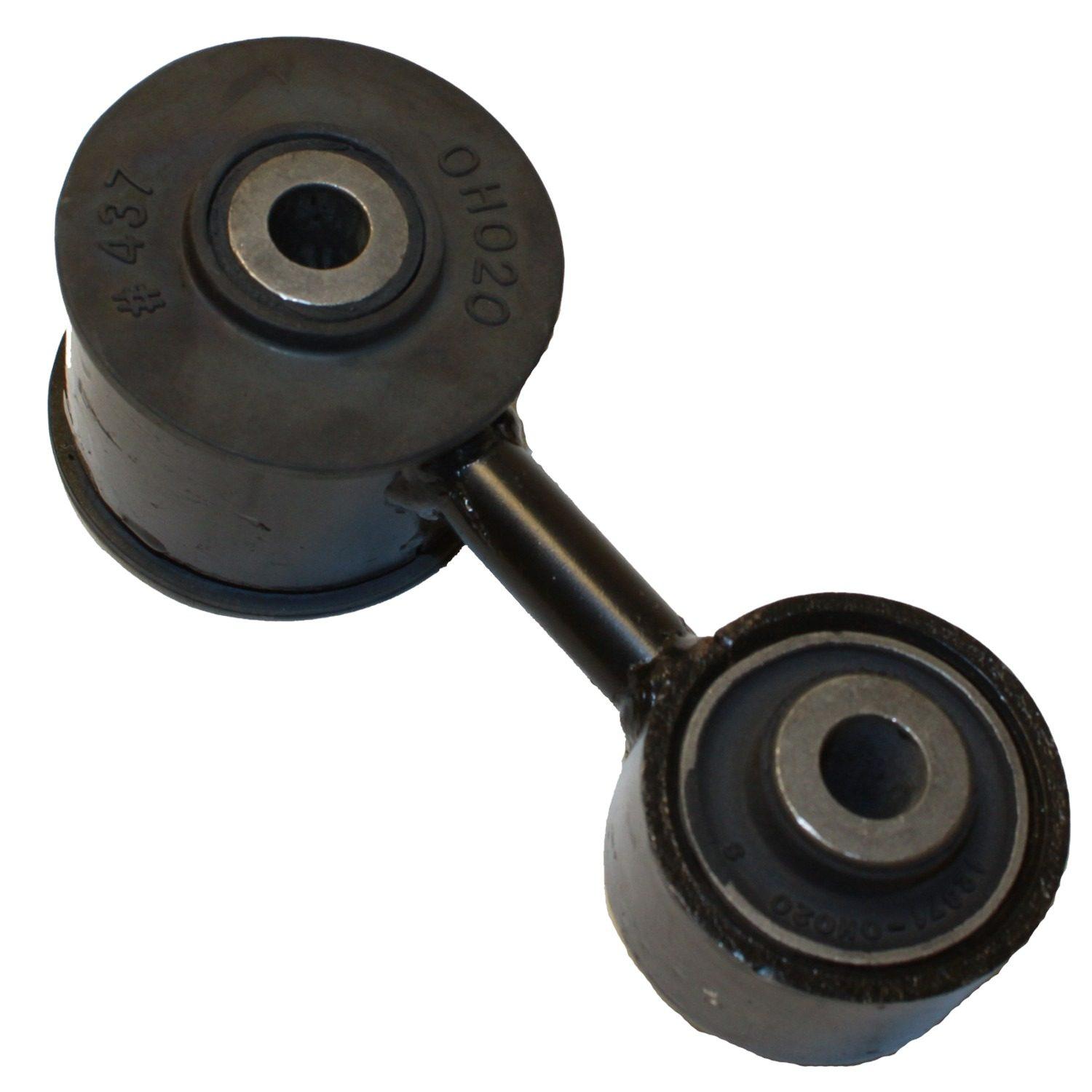

5Rear Engine Torque Strut Mount
Rear
Where each piece goes
- 1Engine Mount: Right or Front Right
- 2Front Right Engine Torque Strut Mount: Front Right
- 3Left Automatic Transmission Mount: Left
- 4Front Engine Mount: Front
- 5Rear Engine Torque Strut Mount: Rear
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Engine Mount
Right or Front Right. Remove the old mount and bolt the new one in hand-tight.
- 4
Front Right Engine Torque Strut Mount
Front Right. Remove the old mount and bolt the new one in hand-tight.
- 5
Left Automatic Transmission Mount
Left. Remove the old mount and bolt the new one in hand-tight.
- 6
Front Engine Mount
Front. Remove the old mount and bolt the new one in hand-tight.
- 7
Rear Engine Torque Strut Mount
Rear. Remove the old mount and bolt the new one in hand-tight.
- 8
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
