3 Piece Front Engine & Manual Trans Mount Kit

ETK-012

How to install the 3 Piece Front Engine & Manual Trans Mount Kit

3 piecesFits 4 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 4 cars it fits
YearsMakeModelEngineChoose
2006–2009FordFusionL4 2.3L
2006–2009FordFusionV6 3.0L
2006–2009MercuryMilanL4 2.3L
2006–2009MercuryMilanV6 3.0L

What's in the box 3 pieces

  • Engine Torque Strut Mount
    1

    Engine Torque Strut Mount

    Front or Front Right

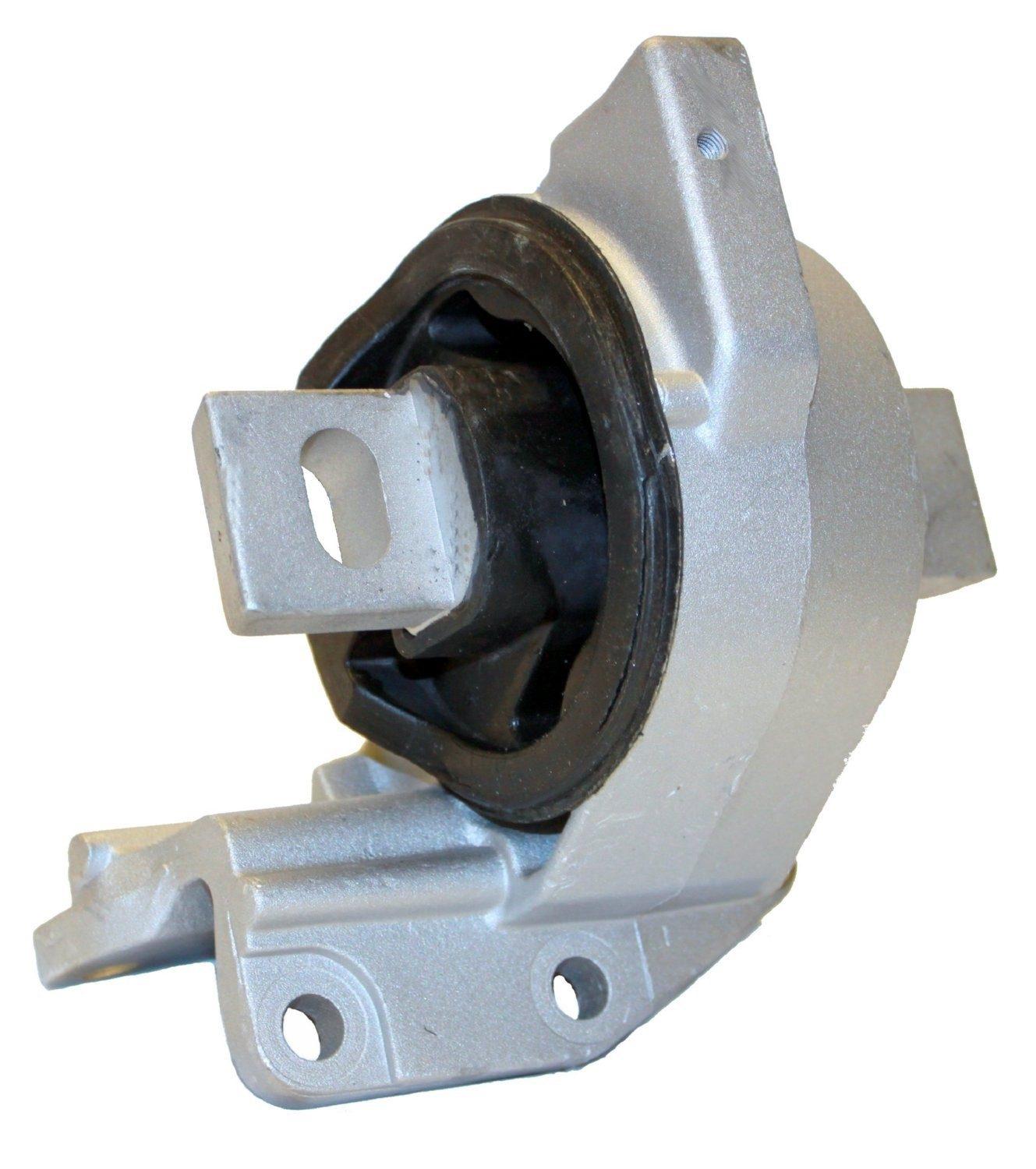

  • Manual Transmission Mount
    2

    Manual Transmission Mount

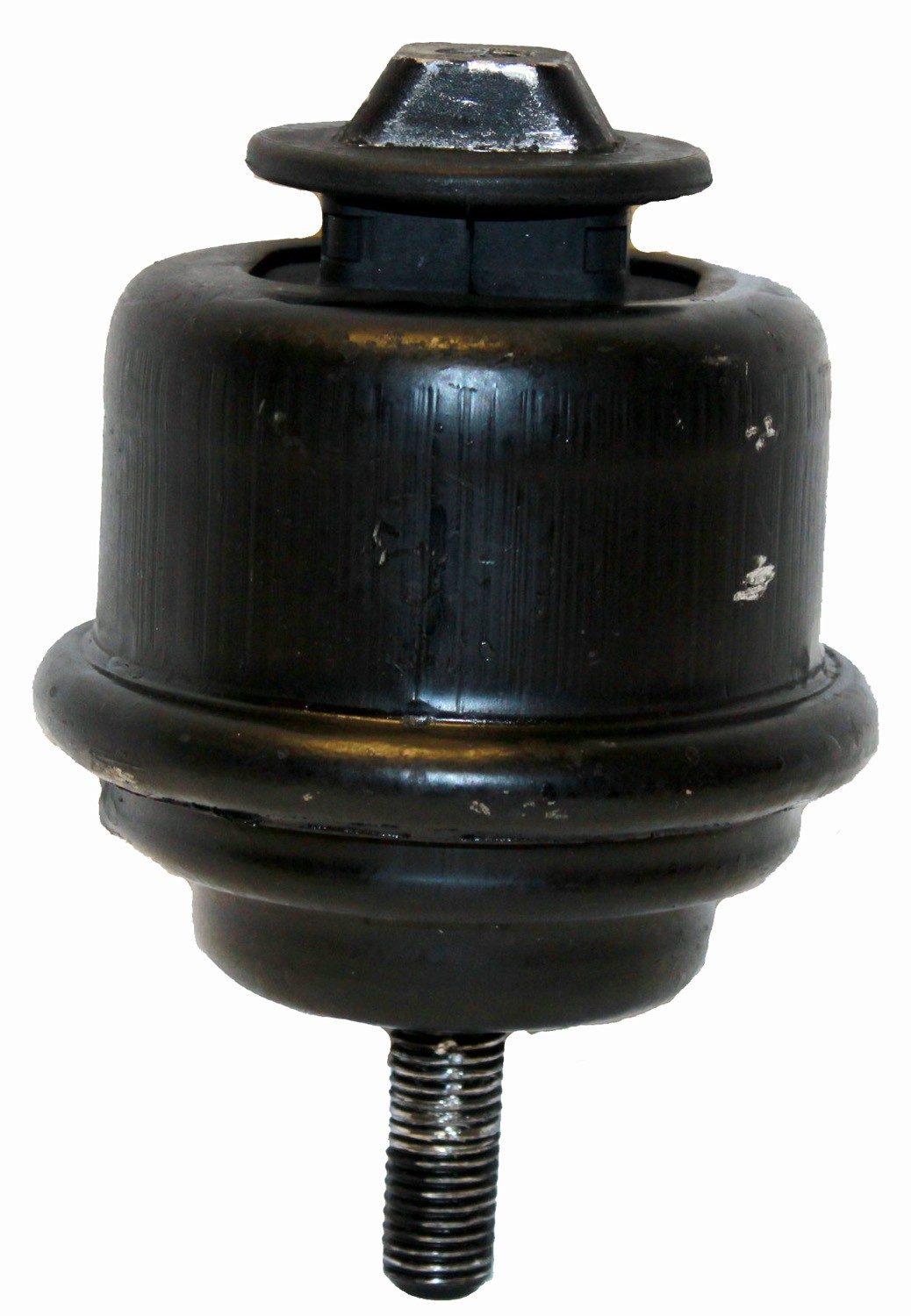

  • Right Engine Mount
    3

    Right Engine Mount

    Right

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE113
  • 1Engine Torque Strut Mount: Front or Front Right
  • 2Manual Transmission Mount
  • 3Right Engine Mount: Right

Install steps

Good to knowReplace all 3 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Engine Torque Strut Mount

    Front or Front Right. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Manual Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Right Engine Mount

    Right. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
