4 Piece Engine & Manual Trans Mount Kit

ETK-010

How to install the 4 Piece Engine & Manual Trans Mount Kit

4 piecesFits 2006–2011 Honda Civic

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2006–2011HondaCivicL4 1.8L

What's in the box 4 pieces

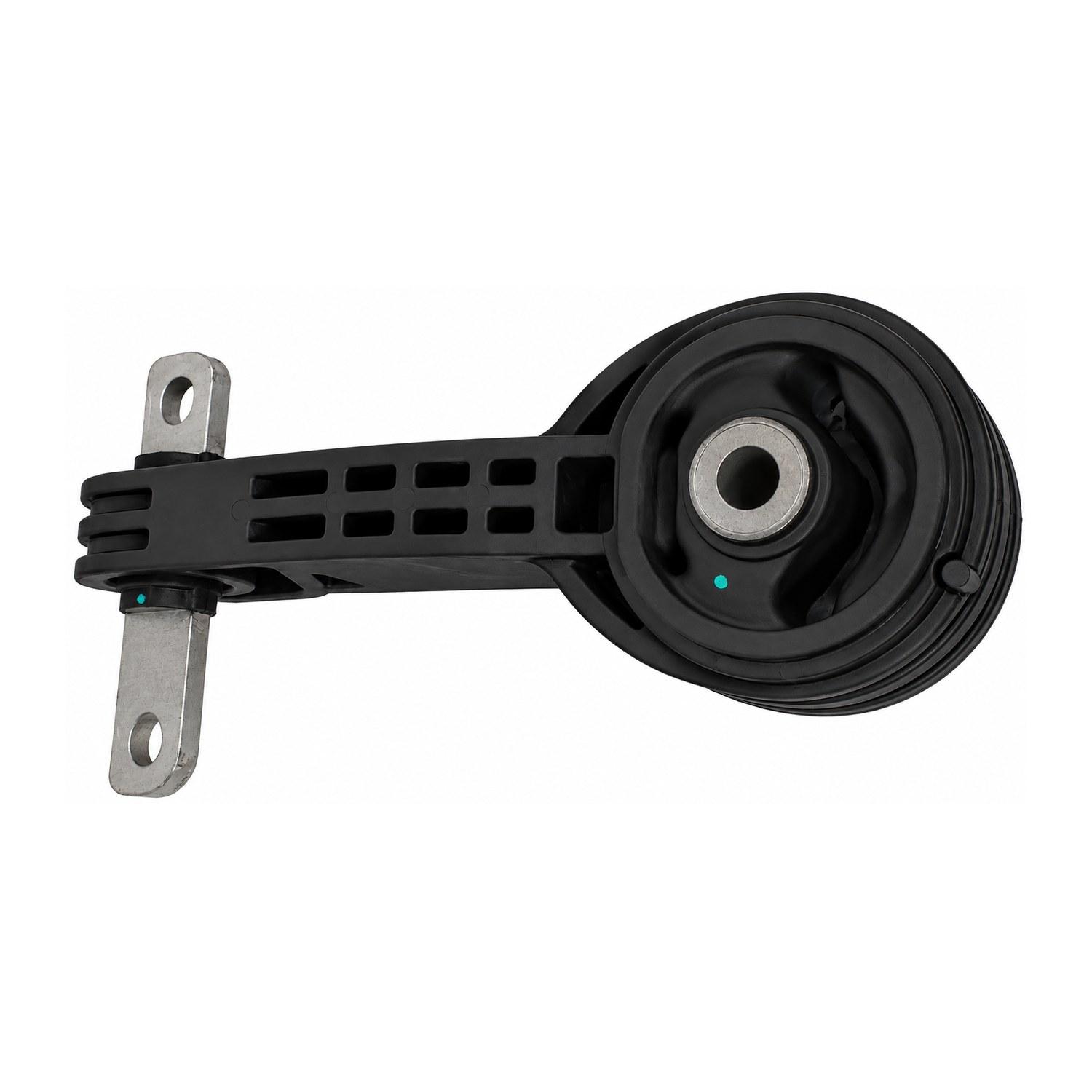

  • Upper Engine Torque Strut Mount
    1

    Upper Engine Torque Strut Mount

    Upper

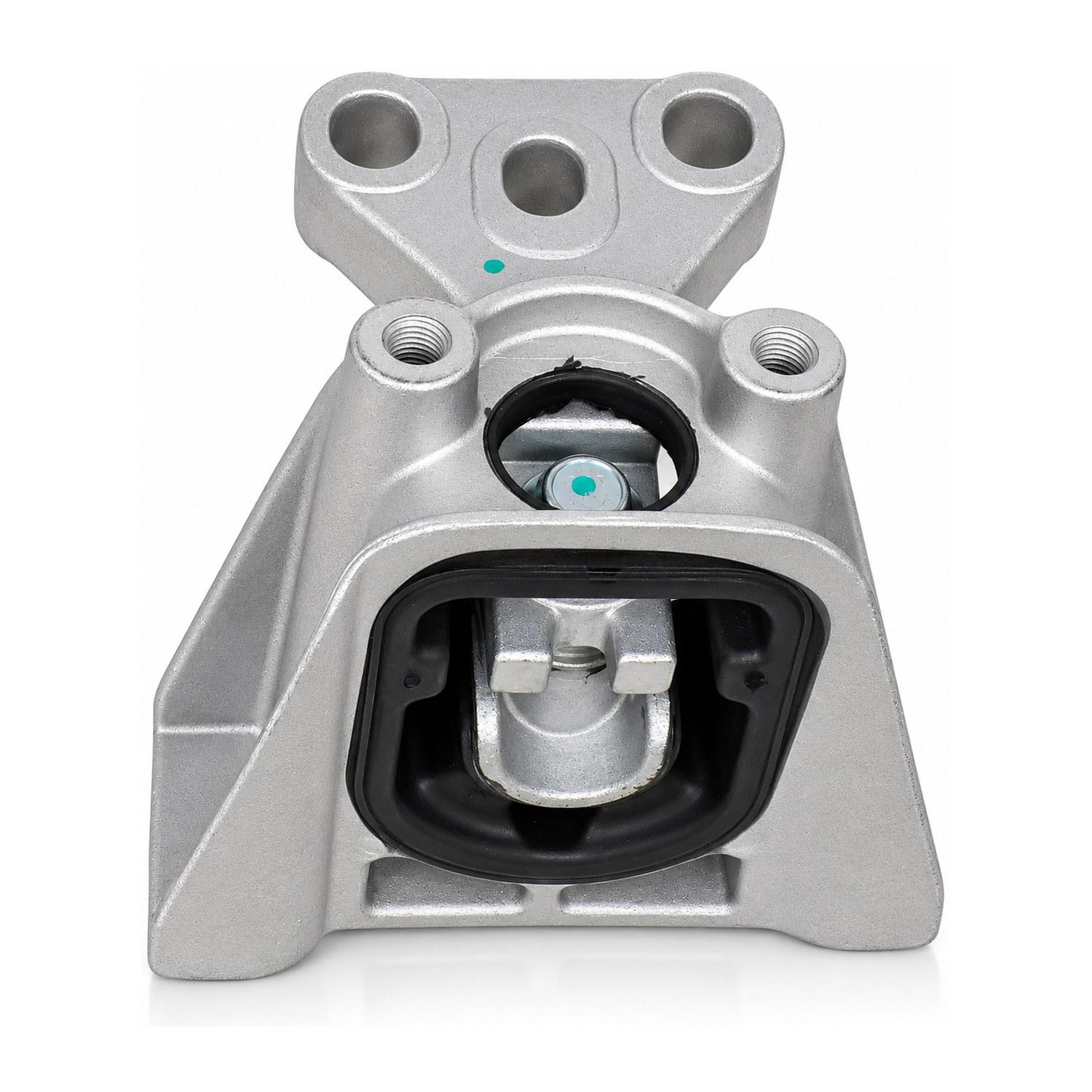

  • Manual Transmission Mount
    2

    Manual Transmission Mount

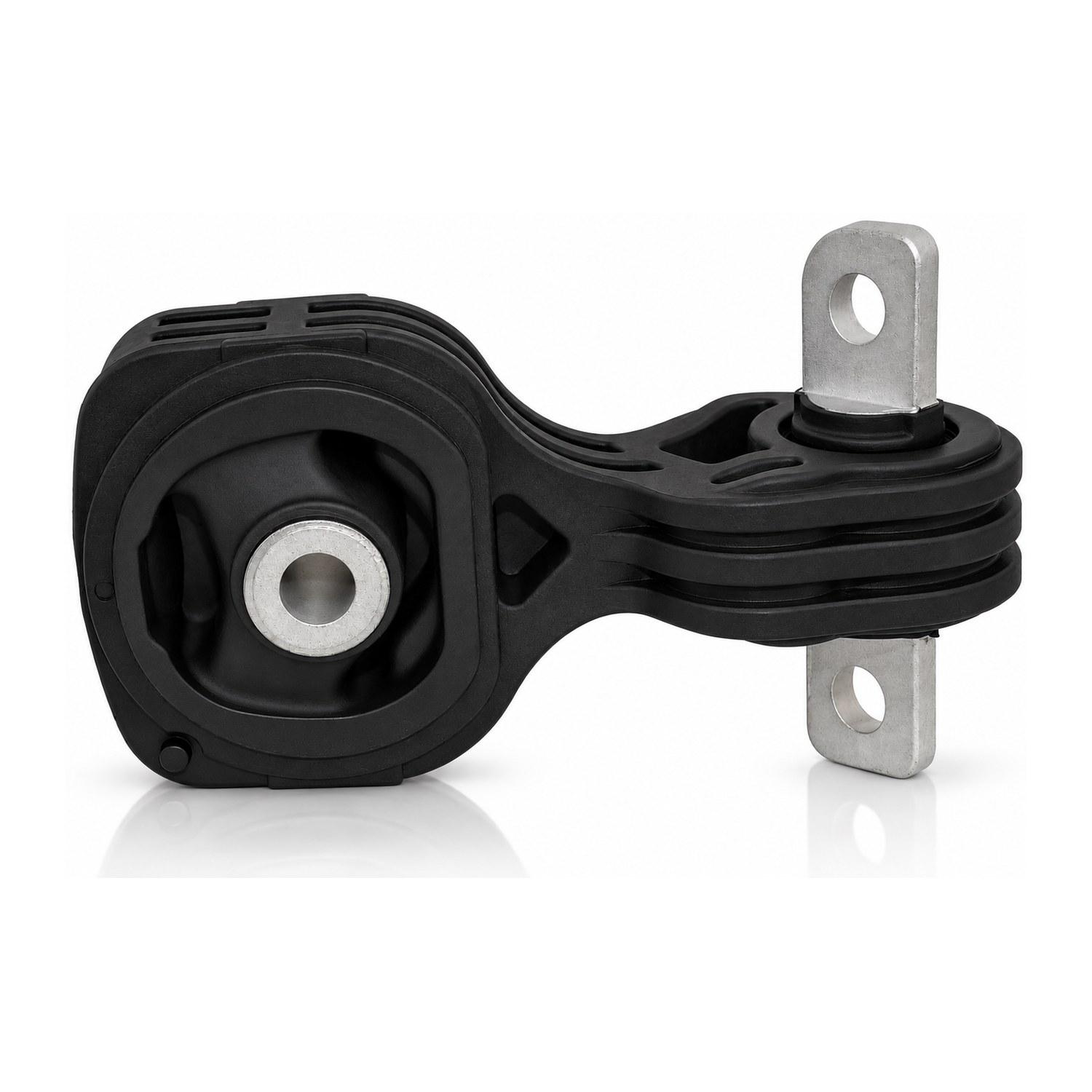

  • Lower Engine Torque Strut Mount
    3

    Lower Engine Torque Strut Mount

    Lower

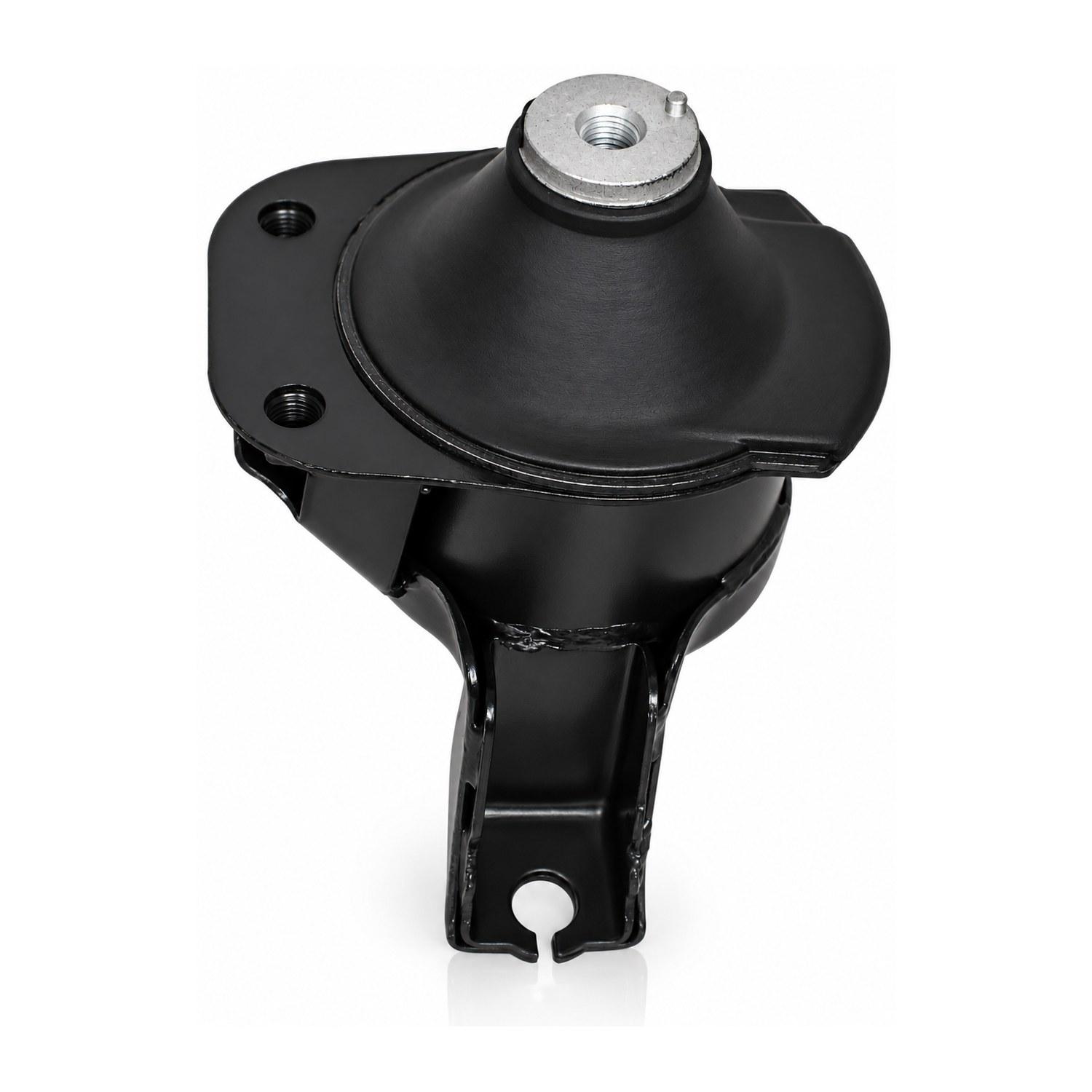

  • Right Engine Mount
    4

    Right Engine Mount

    Right

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE134
  • 1Upper Engine Torque Strut Mount: Upper
  • 2Manual Transmission Mount
  • 3Lower Engine Torque Strut Mount: Lower
  • 4Right Engine Mount: Right

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Upper Engine Torque Strut Mount

    Upper. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Manual Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Lower Engine Torque Strut Mount

    Lower. Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Right Engine Mount

    Right. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
