4 Piece Front & Rear Engine & Manual Trans Mount Kit

ETK-009

How to install the 4 Piece Front & Rear Engine & Manual Trans Mount Kit

4 piecesFits 2 cars

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

All 2 cars it fits
YearsMakeModelEngineChoose
2003–2006PontiacVibeL4 1.8L
2003–2006ToyotaMatrixL4 1.8L

What's in the box 4 pieces

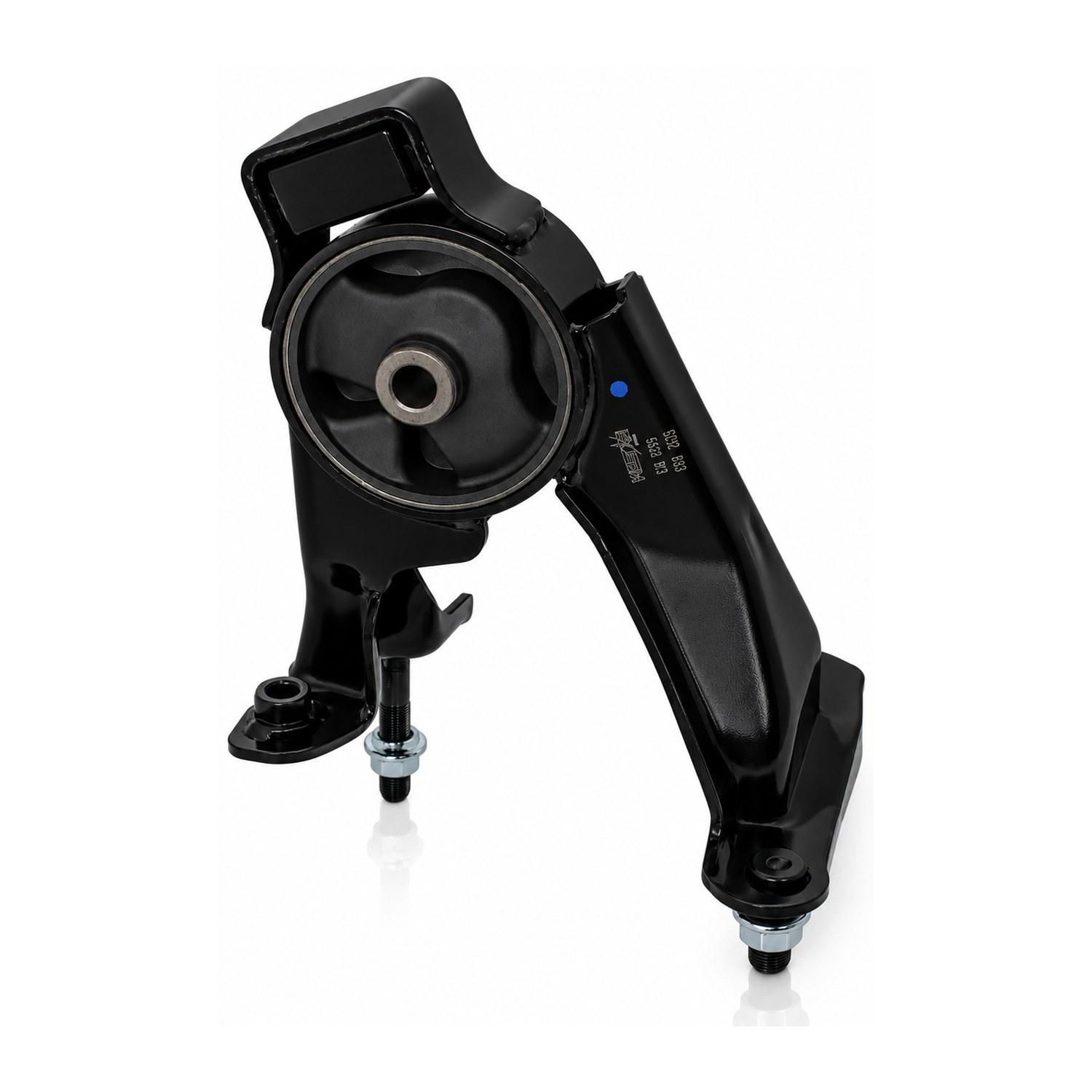

  • Rear Engine Mount
    1

    Rear Engine Mount

    Rear

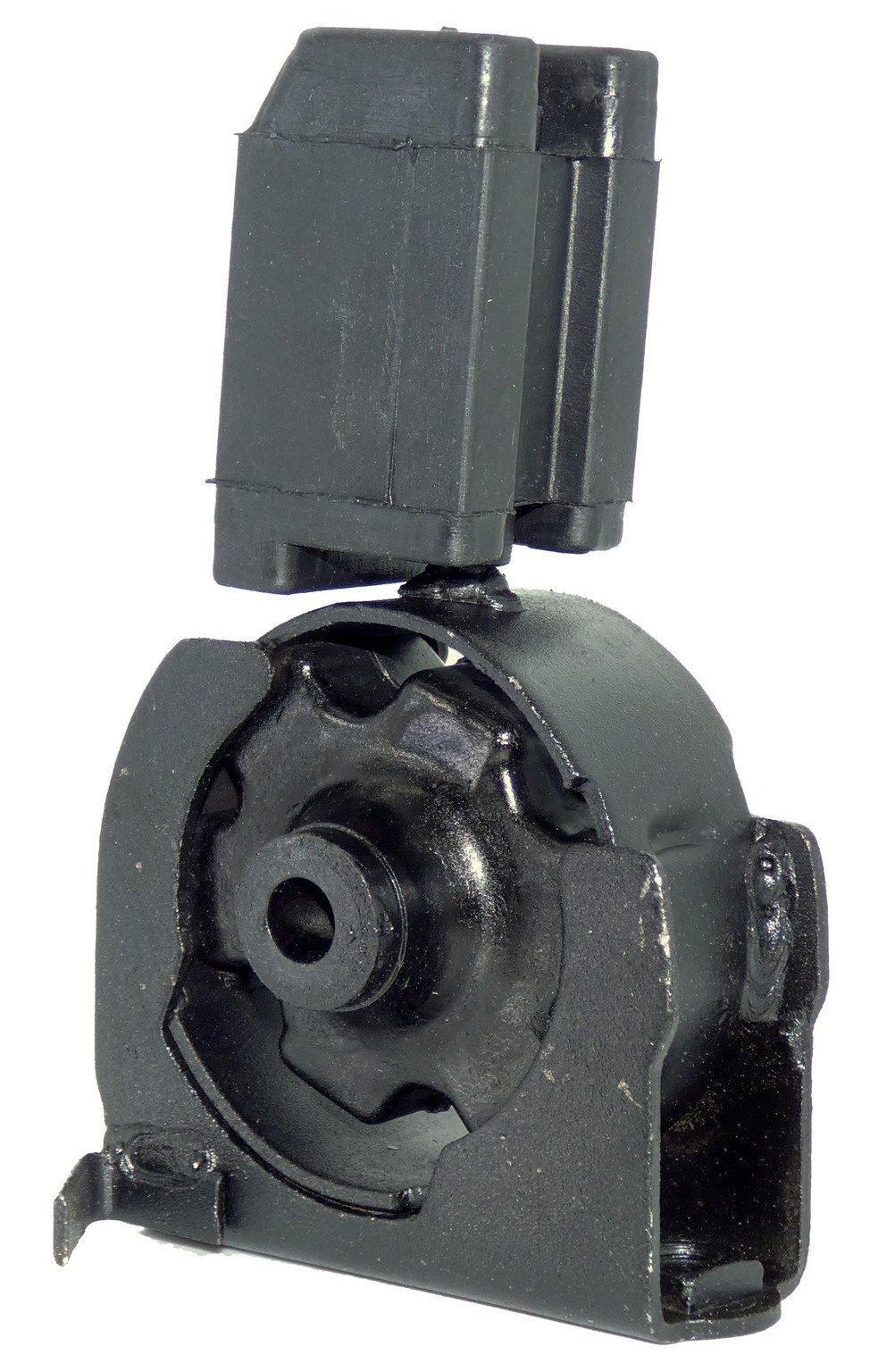

  • Front Engine Mount
    2

    Front Engine Mount

    Front

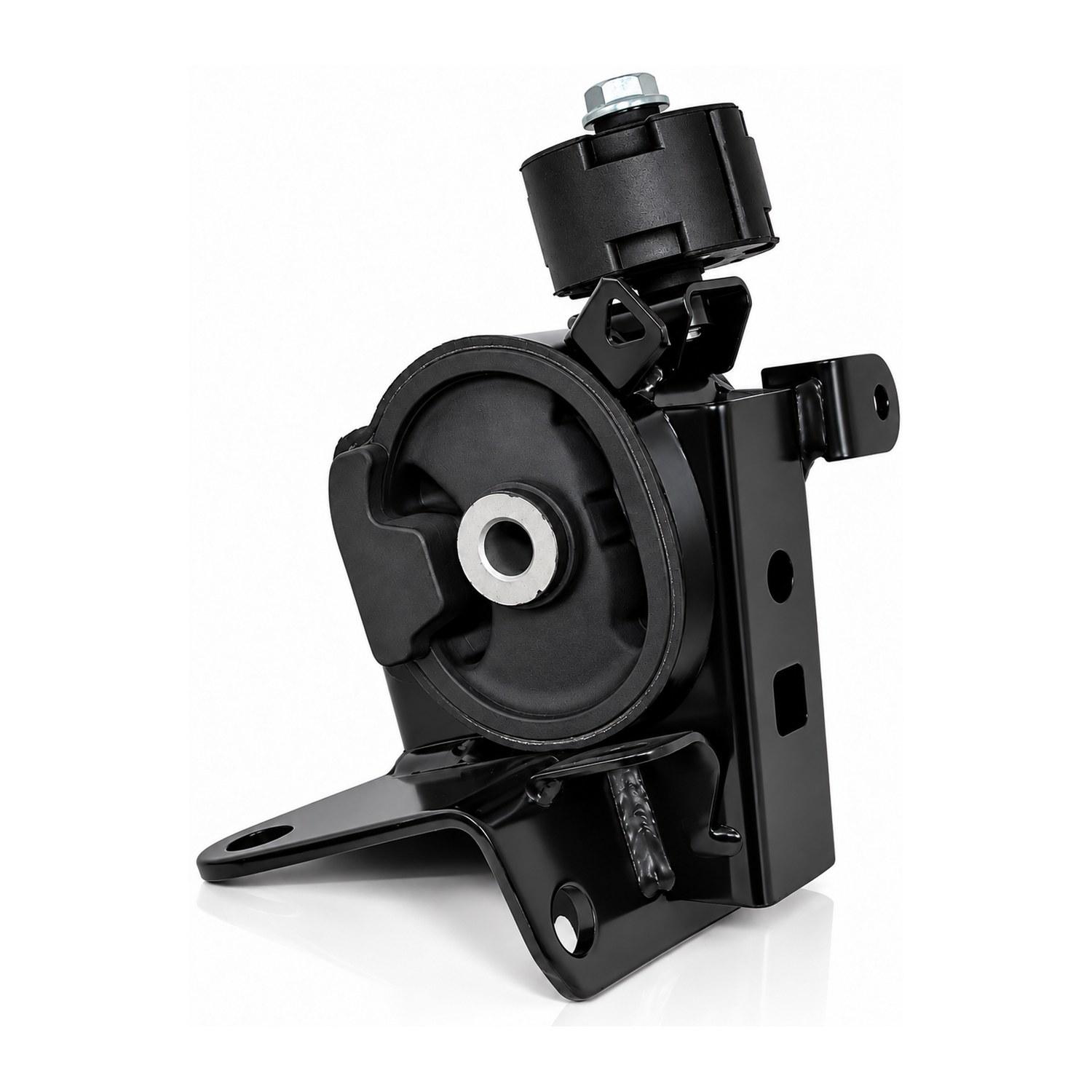

  • Manual Transmission Mount
    3

    Manual Transmission Mount

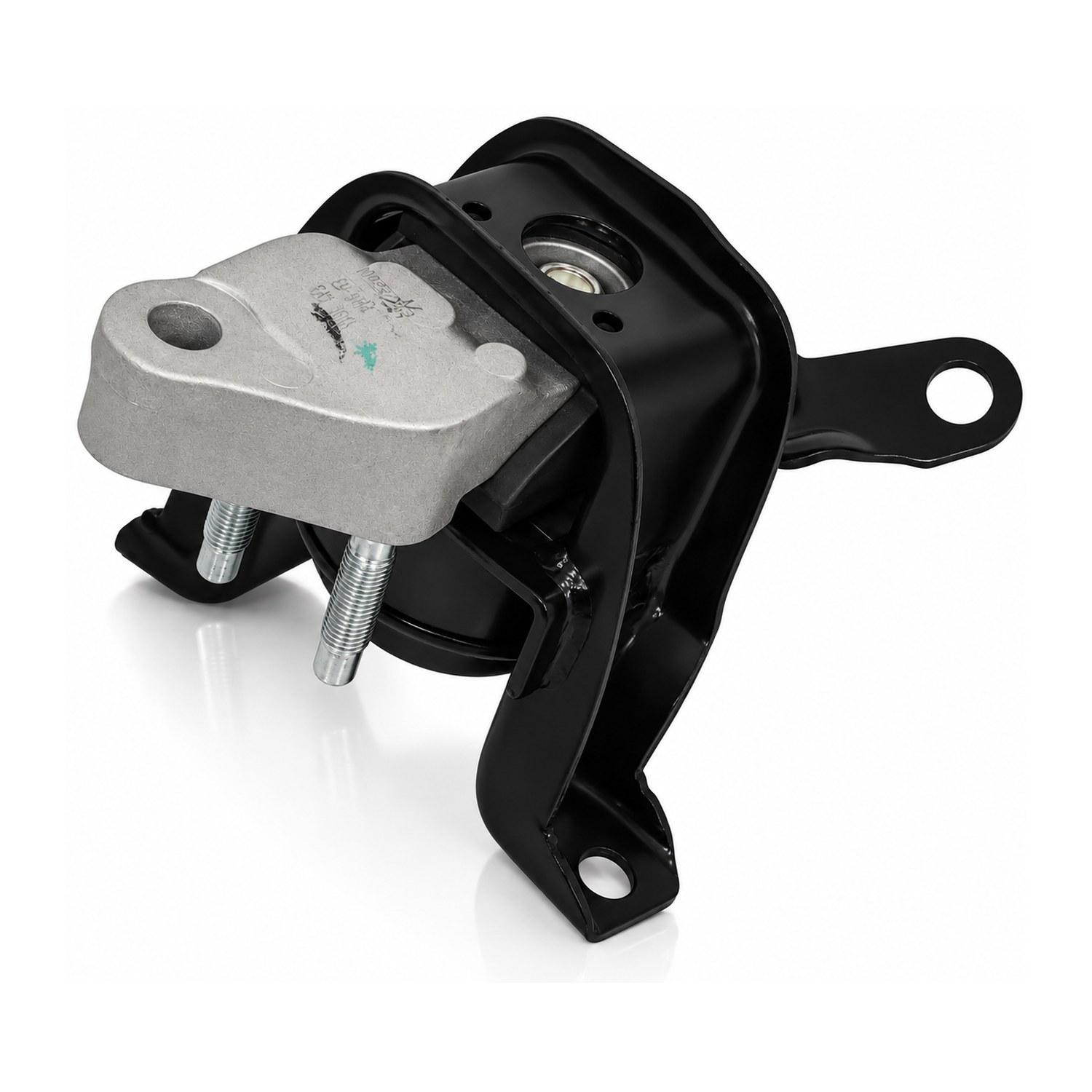

  • Front Right Engine Mount
    4

    Front Right Engine Mount

    Front Right

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE124
  • 1Rear Engine Mount: Rear
  • 2Front Engine Mount: Front
  • 3Manual Transmission Mount
  • 4Front Right Engine Mount: Front Right

Install steps

Good to knowReplace all 4 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Rear Engine Mount

    Rear. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Front Engine Mount

    Front. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Manual Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Front Right Engine Mount

    Front Right. Remove the old mount and bolt the new one in hand-tight.

  7. 7

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
