ETK-007
How to install the 6 Piece Front Engine & Auto Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
All 2 cars it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2006–2011 | Chevrolet | Impala | V6 3.5L | |
| 2006–2007 | Chevrolet | Monte Carlo | V6 3.5L |
What's in the box 6 pieces
1Automatic Transmission Mount
2Engine Mount
Front Right or Right or Front Left or Front
32 × Front Engine Torque Strut Mount
Front
42 × Front Engine Torque Strut Mount
Front
Where each piece goes
- 1Automatic Transmission Mount
- 2Engine Mount: Front Right or Right or Front Left or Front
- 3Front Engine Torque Strut Mount: Front
- 4Front Engine Torque Strut Mount: Front
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Automatic Transmission Mount
Remove the old mount and bolt the new one in hand-tight.
- 4

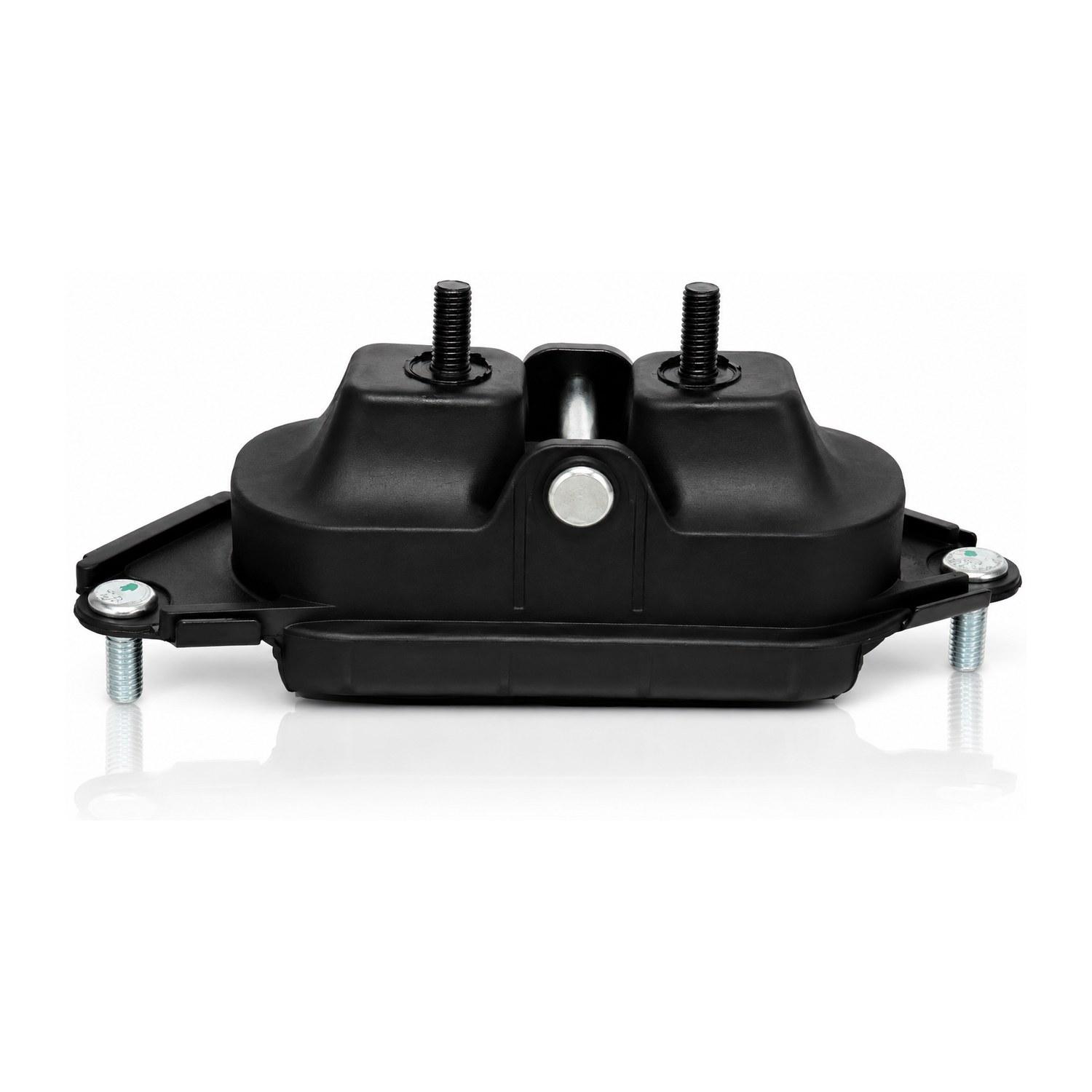

Engine Mount
Front Right or Right or Front Left or Front. Remove the old mount and bolt the new one in hand-tight.
- 5

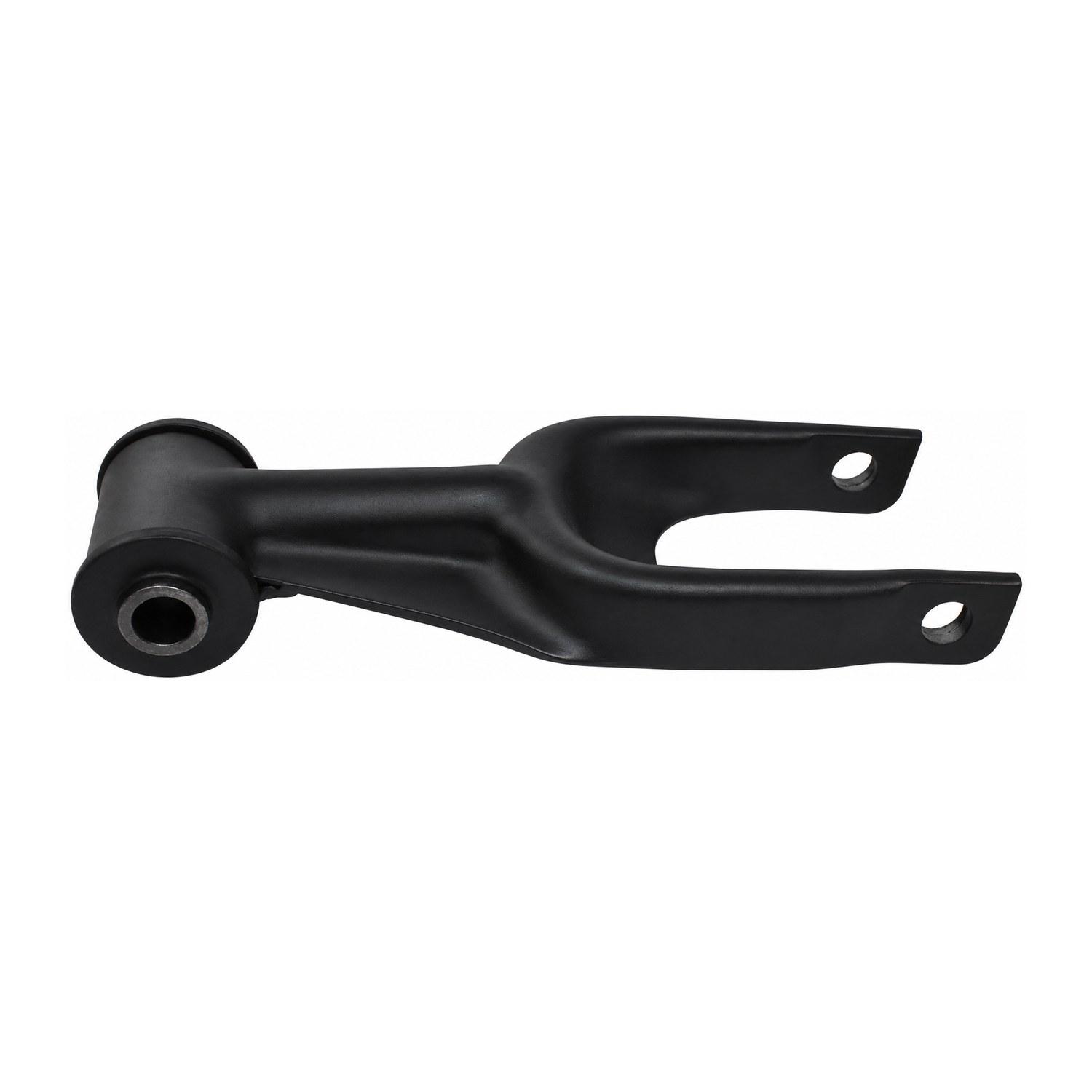

Front Engine Torque Strut Mount
Front. Remove the old mount and bolt the new one in hand-tight.
- 6

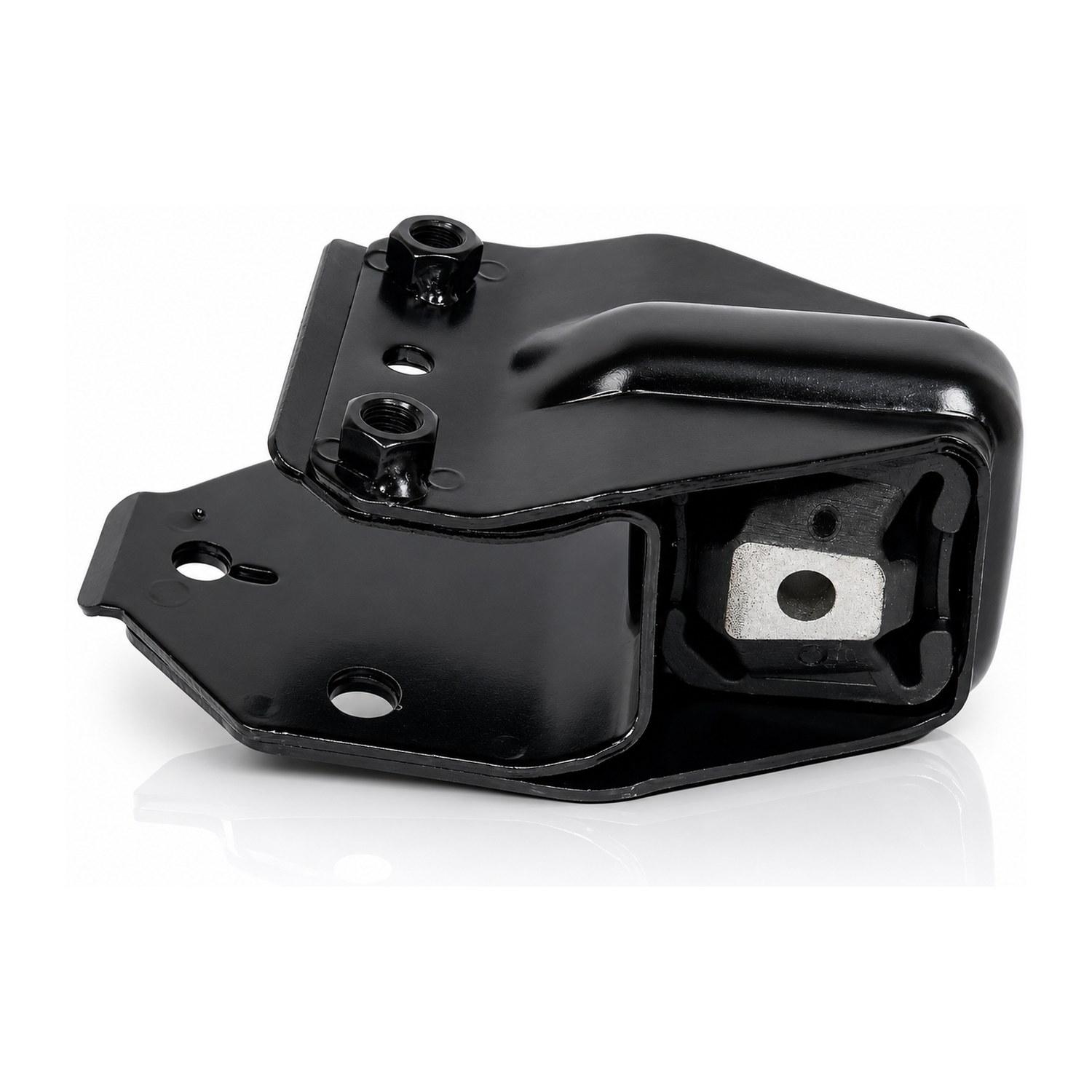

Front Engine Torque Strut Mount
Front. Remove the old mount and bolt the new one in hand-tight.
- 7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
