How to install the 5 Piece Front & Rear Engine & Auto Trans Mount Kit

Install steps

1. 1

   Get the car ready

   Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

2. 2

   Support the engine

   Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

3. 3

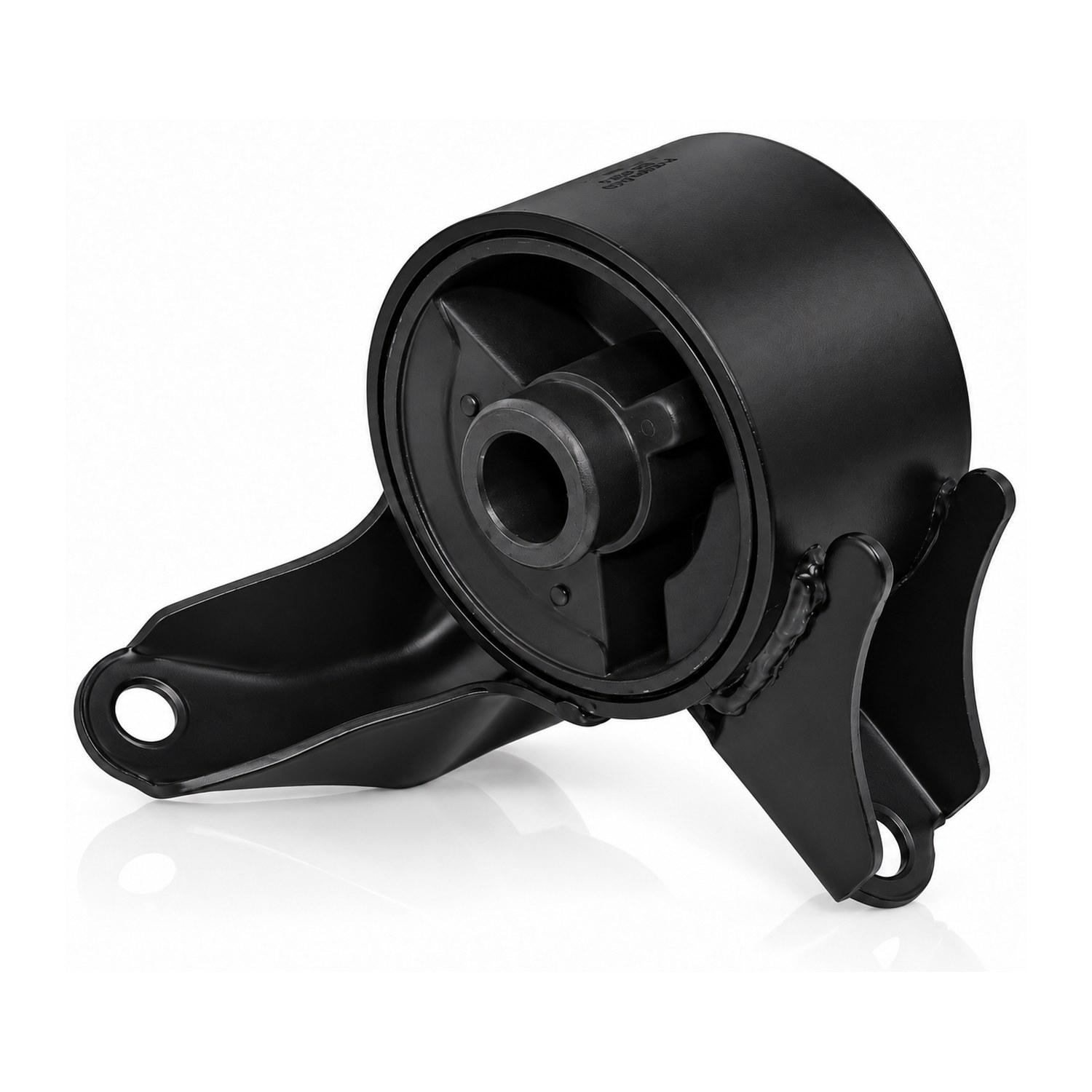

   Engine Mount

   Front Right or Right. Remove the old mount and bolt the new one in hand-tight.


4. 4

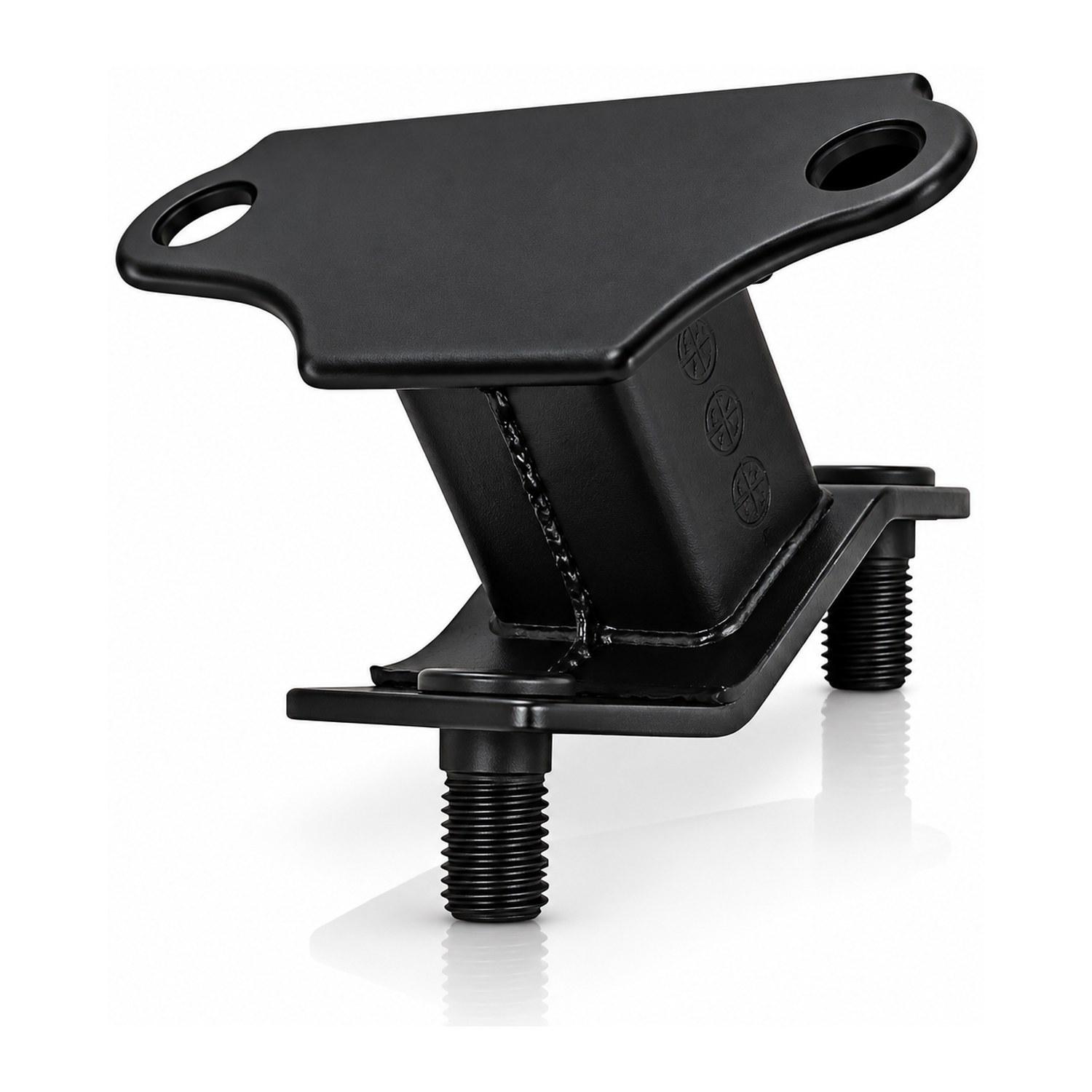

   Automatic Transmission Mount

   Rear or Rear Left. Remove the old mount and bolt the new one in hand-tight.


5. 5

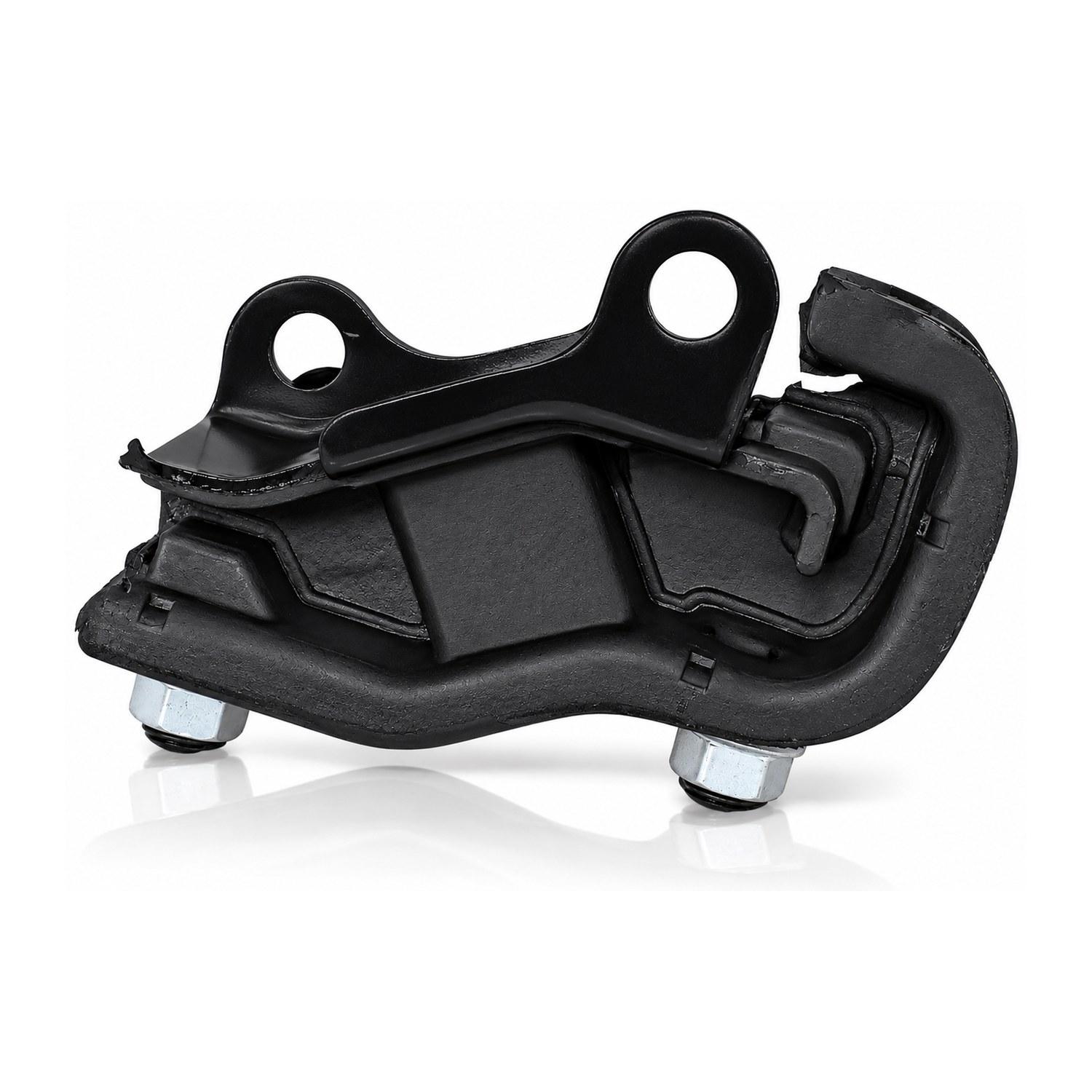

   Front Automatic Transmission Mount

   Front. Remove the old mount and bolt the new one in hand-tight.


6. 6

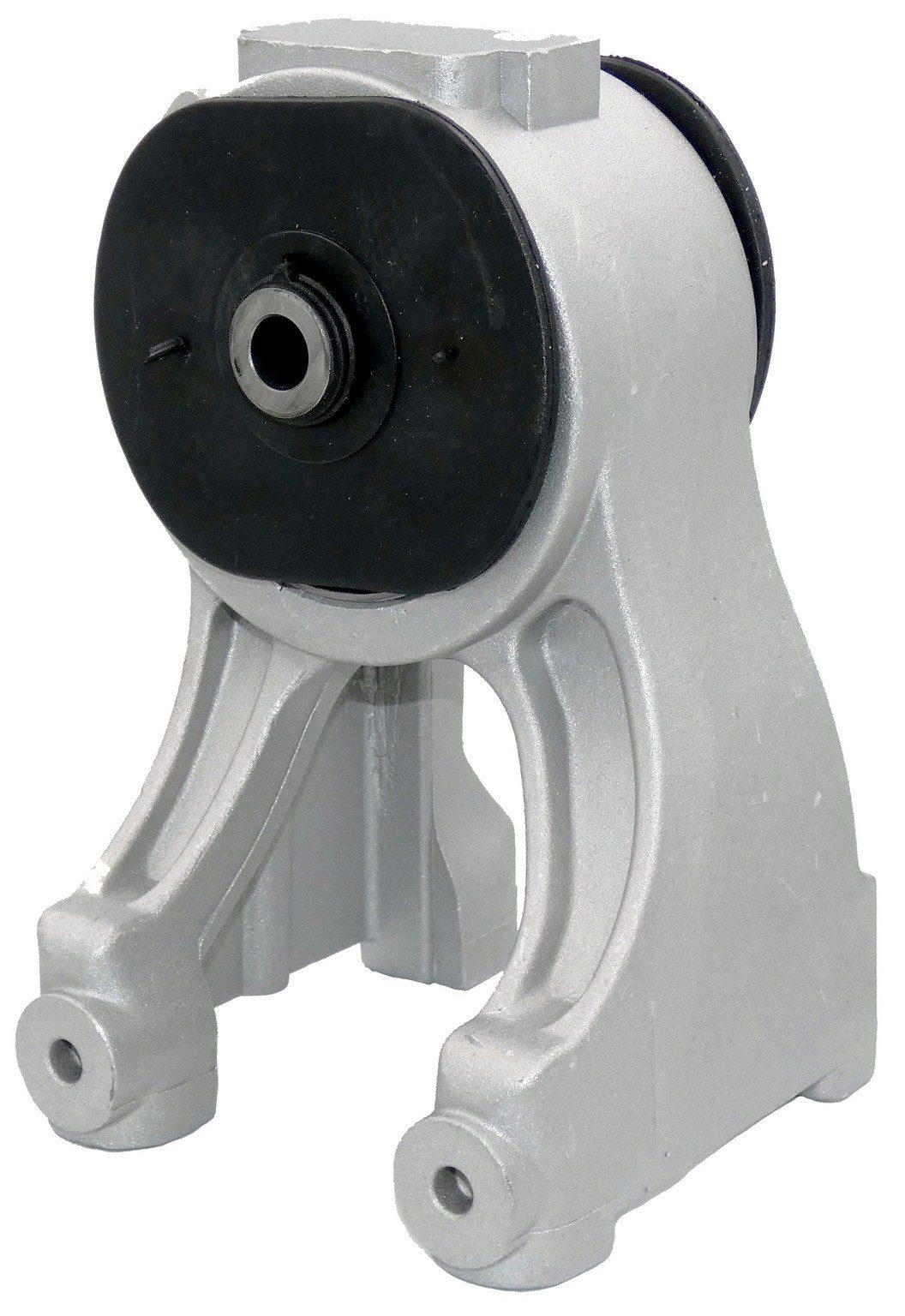

   Rear Engine Mount

   Rear. Remove the old mount and bolt the new one in hand-tight.


7. 7

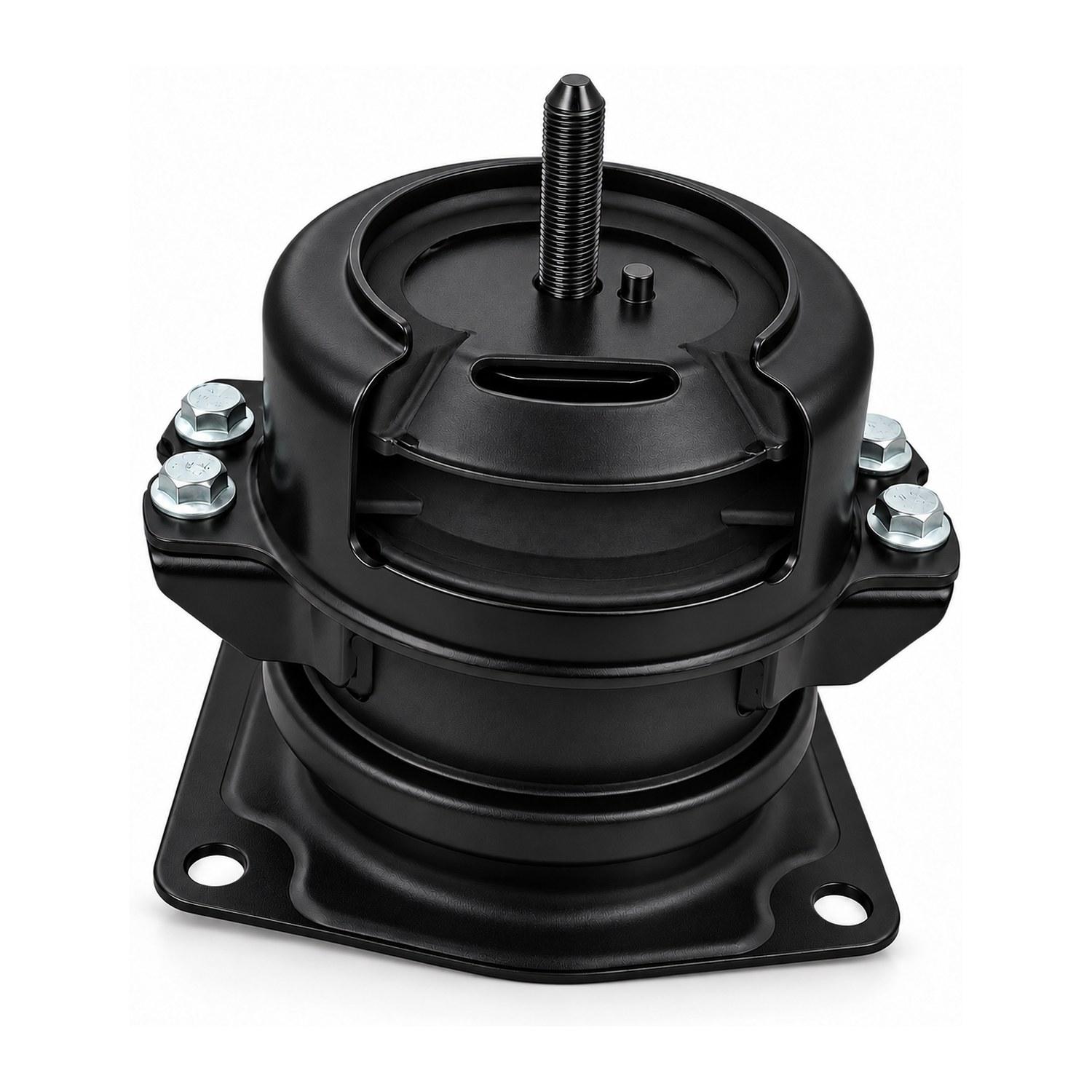

   Front Engine Mount

   Front. Remove the old mount and bolt the new one in hand-tight.


8. 8

   Tighten, lower, test

   Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
