ETK-002
How to install the 4 Piece Front & Rear Engine & Auto Trans Mount Kit
Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.
The car it fits
| Years | Make | Model | Engine | Choose |
|---|---|---|---|---|
| 2003–2008 | Chrysler | PT Cruiser | L4 2.4L |
What's in the box 4 pieces

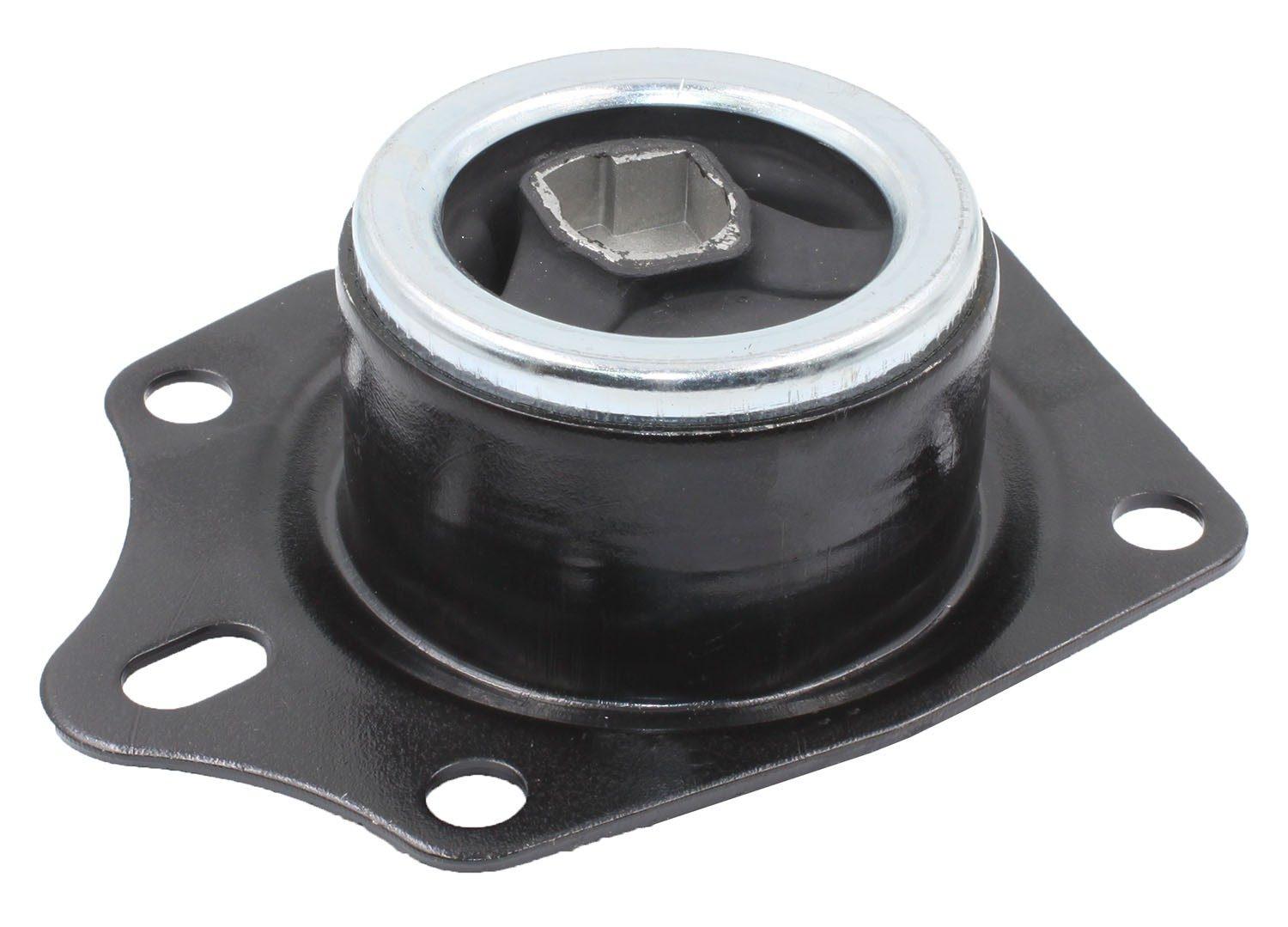

1Engine Mount
Rear Right or Right or Rear
2Engine Mount
Right Upper or Front Right Upper or Rear Left Upper or Front Lower

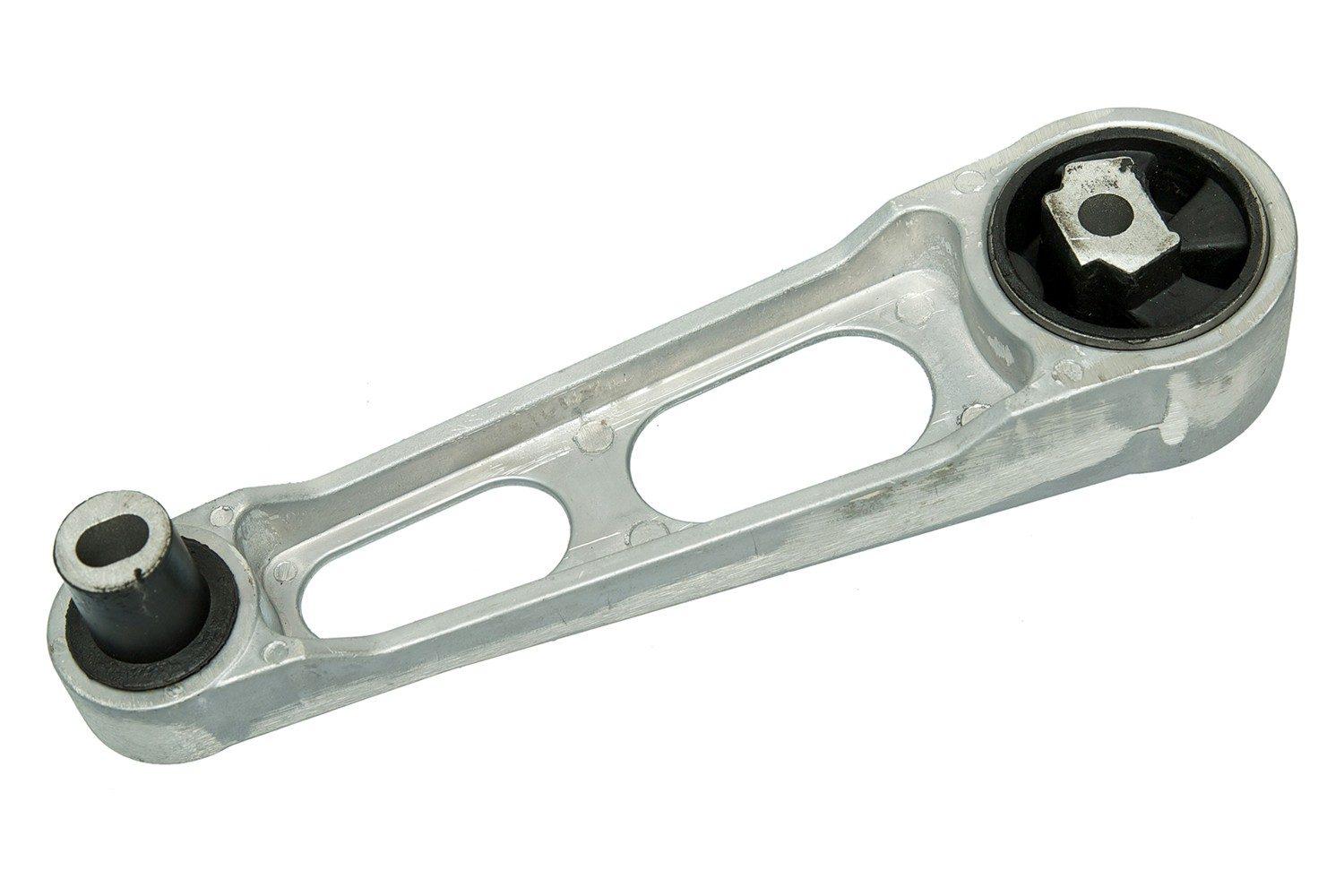

3Front Lower Engine Mount
Front Lower

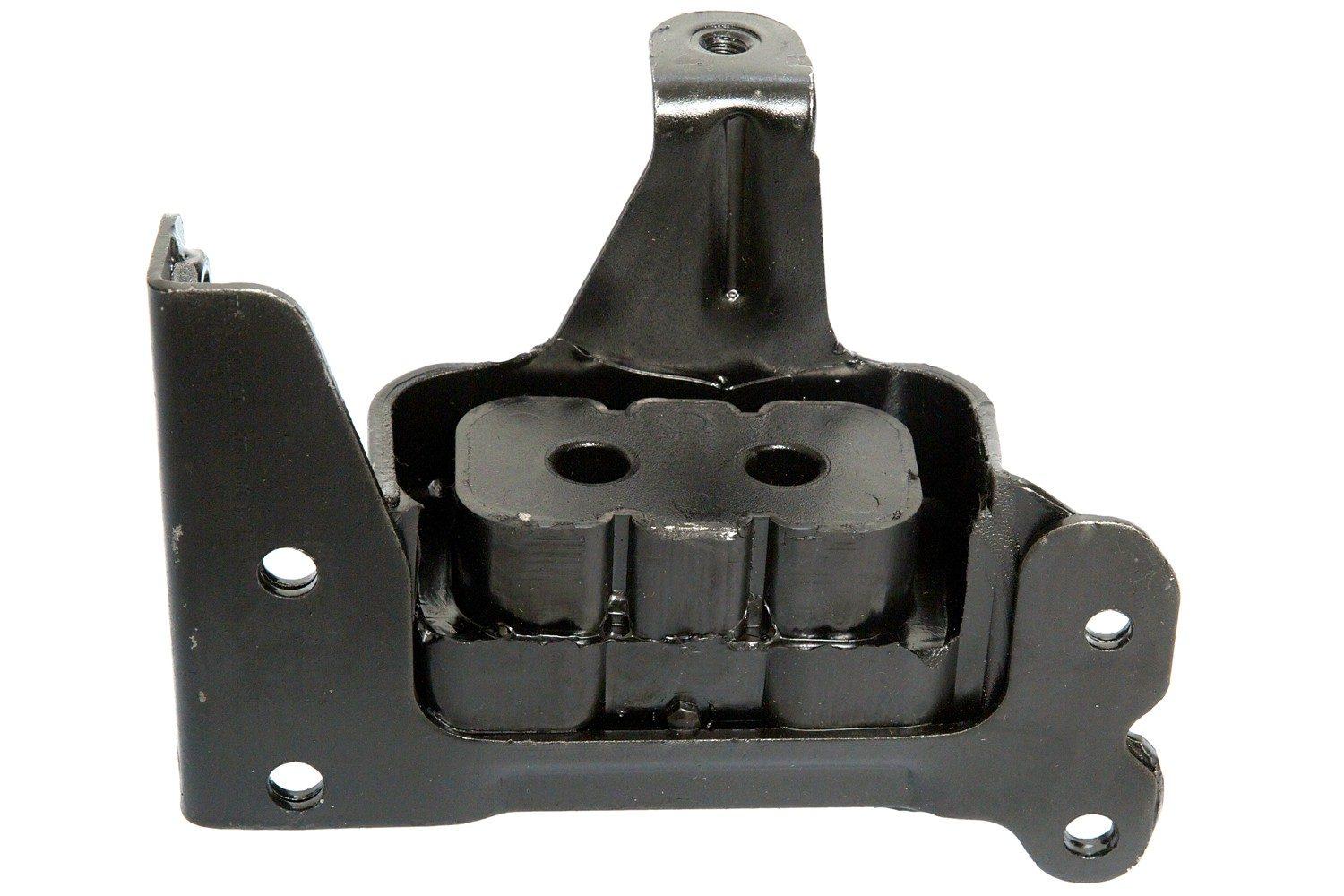

4Automatic Transmission Mount
Where each piece goes
- 1Engine Mount: Rear Right or Right or Rear
- 2Engine Mount: Right Upper or Front Right Upper or Rear Left Upper or Front Lower
- 3Front Lower Engine Mount: Front Lower
- 4Automatic Transmission Mount
Install steps
- 1
Get the car ready
Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.
- 2
Support the engine
Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.
- 3
Engine Mount
Rear Right or Right or Rear. Remove the old mount and bolt the new one in hand-tight.
- 4
Engine Mount
Right Upper or Front Right Upper or Rear Left Upper or Front Lower. Remove the old mount and bolt the new one in hand-tight.
- 5
Front Lower Engine Mount
Front Lower. Remove the old mount and bolt the new one in hand-tight.
- 6
Automatic Transmission Mount
Remove the old mount and bolt the new one in hand-tight.
- 7
Tighten, lower, test
Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.
Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
