3 Piece Front & Rear Engine & Manual Trans Mount Kit

ETK-001

How to install the 3 Piece Front & Rear Engine & Manual Trans Mount Kit

3 piecesFits 2008–2011 Ford Focus

Pick your car in the car picker at the top of the page to check it fits and see the notes for your car.

The car it fits
YearsMakeModelEngineChoose
2008–2011FordFocusL4 2.0L

What's in the box 3 pieces

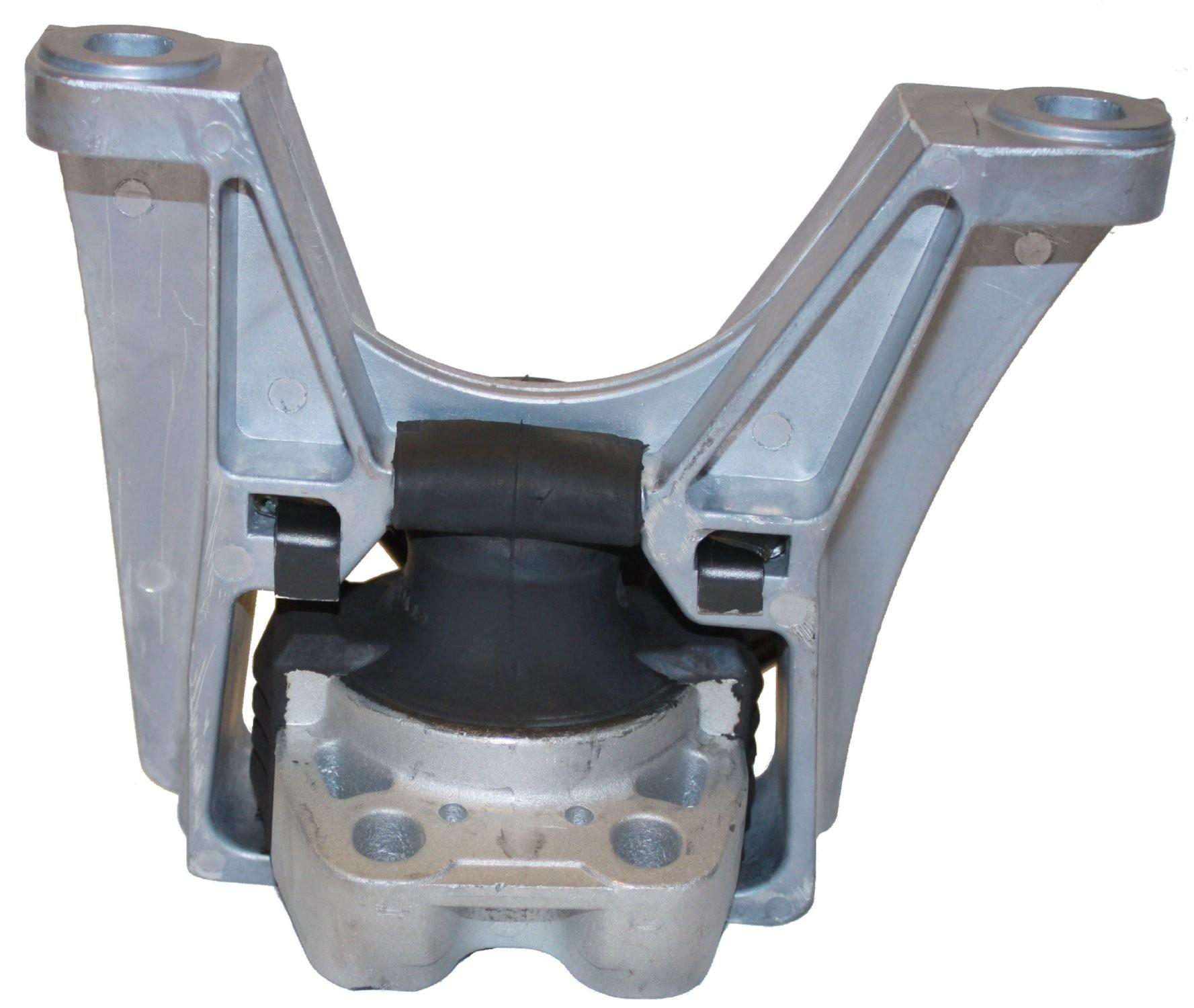

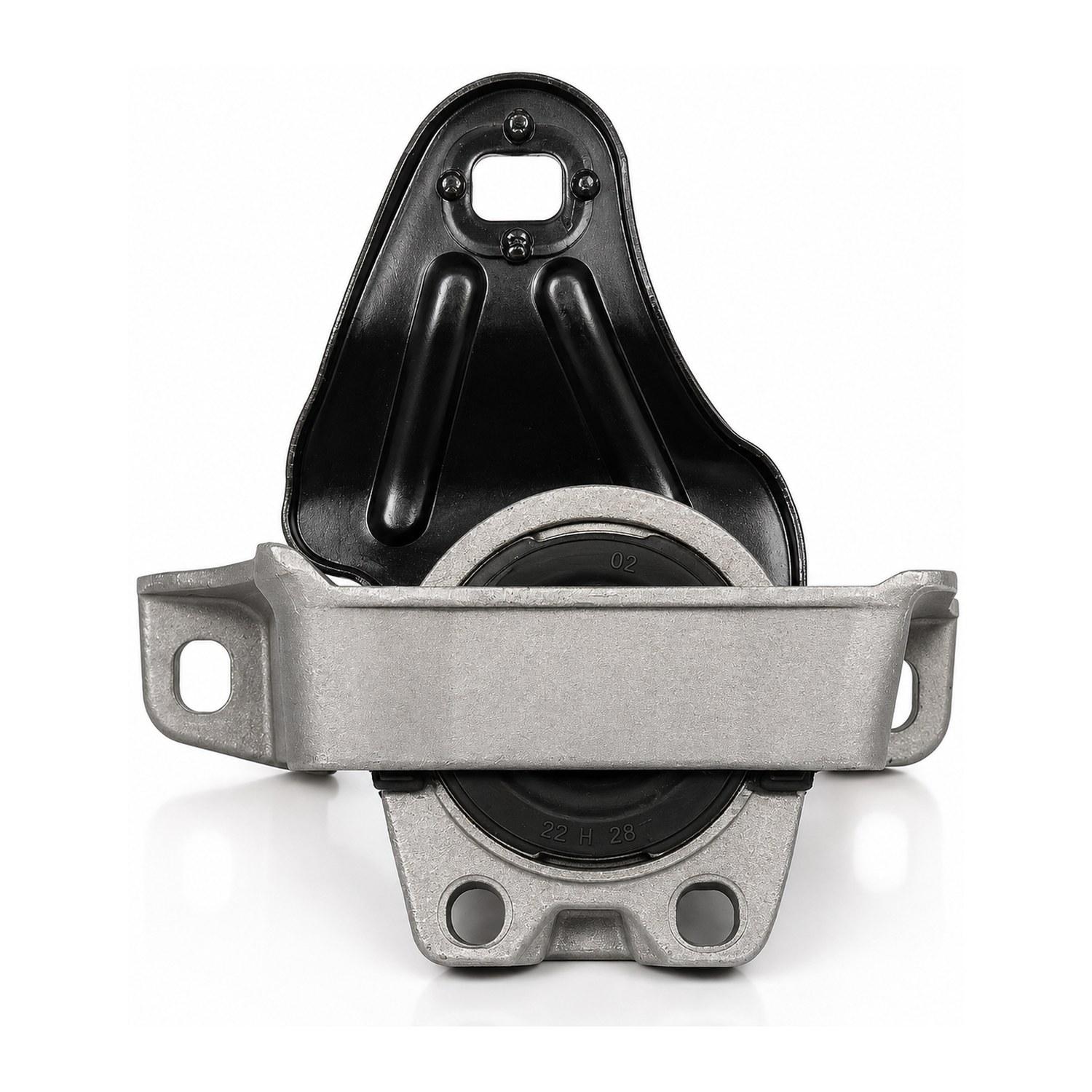

  • Front Right Engine Mount
    1

    Front Right Engine Mount

    Front Right

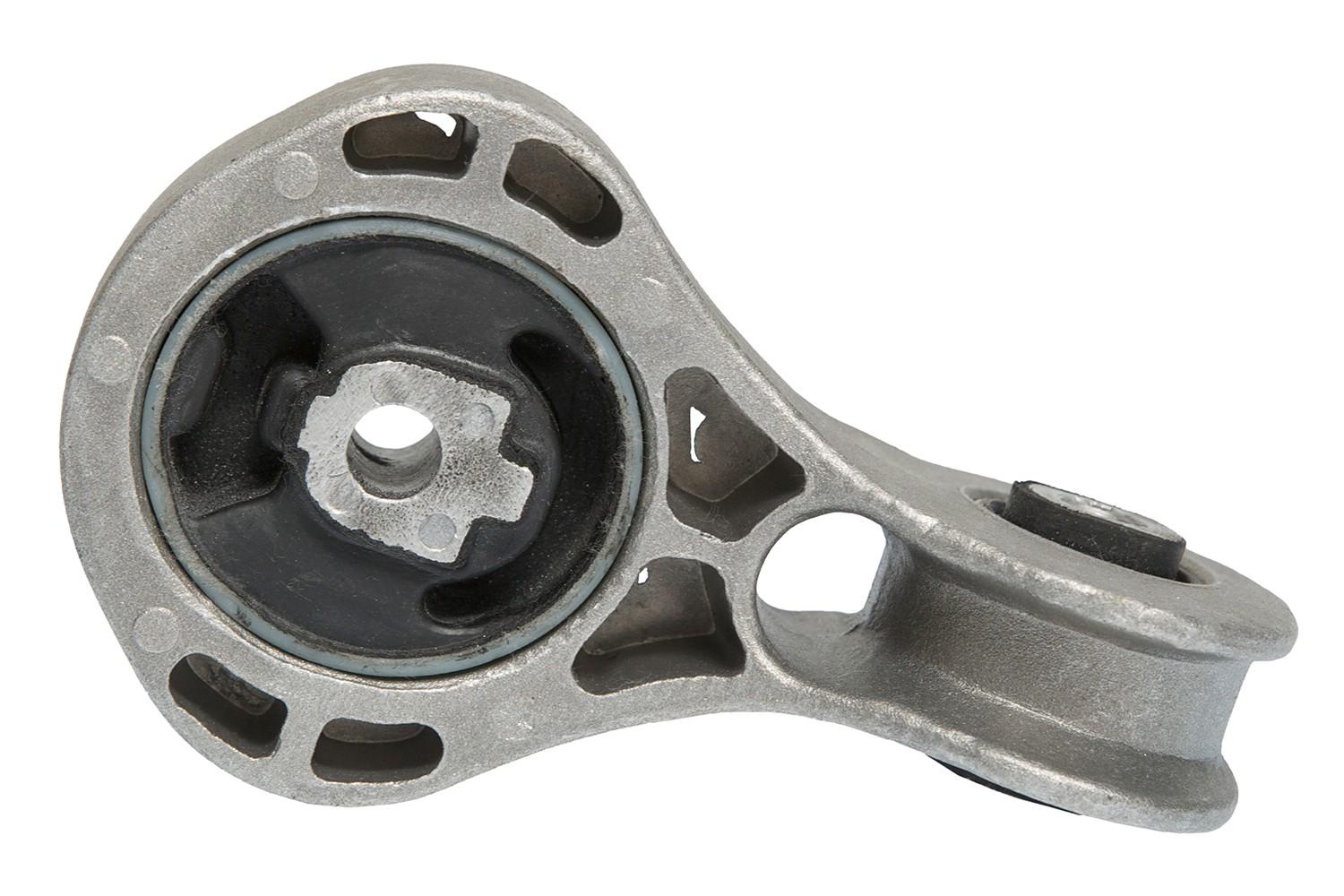

  • Rear Lower Engine Torque Strut Mount
    2

    Rear Lower Engine Torque Strut Mount

    Rear Lower

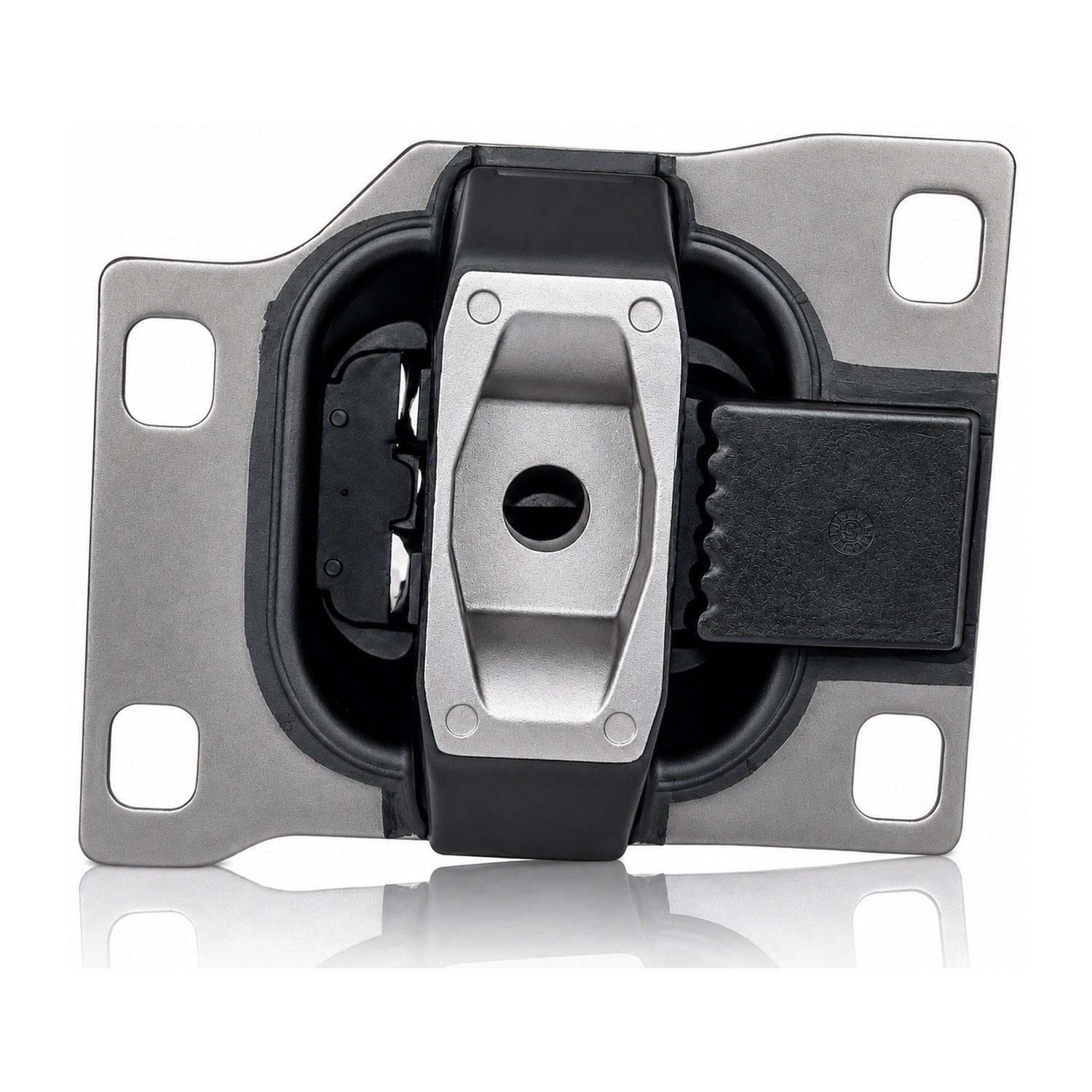

  • Manual Transmission Mount
    3

    Manual Transmission Mount

Where each piece goes

FRONT OF CARENGINEDRIVER SIDEPASSENGER SIDE12
  • 1Front Right Engine Mount: Front Right
  • 2Rear Lower Engine Torque Strut Mount: Rear Lower
  • 3Manual Transmission Mount

Install steps

Good to knowReplace all 3 together
  1. 1

    Get the car ready

    Park on level ground, set the parking brake and disconnect the battery. Lift the car and support it on jack stands.

  2. 2

    Support the engine

    Put a jack with a block of wood under the oil pan, or use an engine support bar. Do this before you take out any mount.

  3. 3

    Front Right Engine Mount

    Front Right. Remove the old mount and bolt the new one in hand-tight.

  4. 4

    Rear Lower Engine Torque Strut Mount

    Rear Lower. Remove the old mount and bolt the new one in hand-tight.

  5. 5

    Manual Transmission Mount

    Remove the old mount and bolt the new one in hand-tight.

  6. 6

    Tighten, lower, test

    Lower the engine back down and tighten every bolt to your car's spec. Reconnect the battery, start the engine and check for movement or noise.

Torque values: Use the torque values in your car's service manual. We only show a number here once it is checked for your car.
